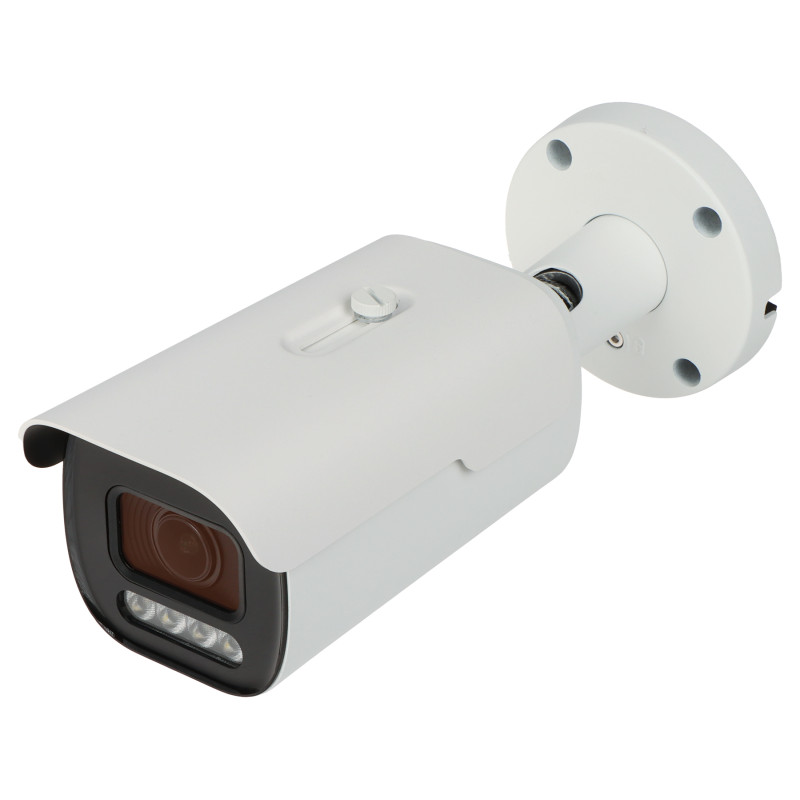

8Mpx 4K Full-Color Motozoom IP Camera 2.7-13.5mm Lens IR 50m Microphone SD IVS AI PoE Metal IP67 Outdoor APTI APTI-AI803CA5IL-27
zł642.69
Tax included
The APTI-AI803CA5IL-27135W-Z IP camera is an advanced video surveillance solution that offers unprecedented image quality in 8 Mpx (4K UHD) resolution. Thanks to the use of a modern SONY Starvis Back-illuminated CMOS sensor, the device guarantees exceptional detail and color fidelity. The main advantage of this model is the Full-Color technology, which allows for a bright, color image even in total darkness, significantly increasing the effectiveness of identifying people and vehicles.
The device is equipped with a Motozoom type lens with a variable focal length from 2.7 mm to 13.5 mm, which allows for remote adjustment of the viewing angle in the range from 103° to 29°. This is an ideal solution for monitoring both wide shots and distant details. The camera has a dual illuminator: classic infrared (IR) and white light (LED), both with a range of up to 50 meters, which allows for flexible selection of the night mode depending on the user's needs.
Another important advantage is support for intelligent video analysis (IVS). The camera can classify objects (people/vehicles), detect intrusions, line crossing, loitering, or illegal parking. A solid metal housing with an IP67 protection class ensures complete protection against harsh weather conditions, making it an ideal choice for outdoor installations. PoE standard support (802.3af) significantly simplifies installation, allowing power and data to be transmitted via a single network cable. Additionally, a built-in microphone allows for audio recording, providing a complete surveillance system.
8Mpx 4K Full-Color Motozoom IP Camera 2.7-13.5mm Lens IR 50m Microphone SD IVS AI PoE Metal IP67 Outdoor
Model: APTI APTI-AI803CA5IL-27135W-Z
EAN: 6931240066300 SKU: 931066305
- Very high resolution 8 Mpx - 4K UHD for maximum detail
- Full-Color technology providing color image at night
- Remotely adjustable Motozoom lens 2.7 - 13.5 mm
- Intelligent IVS image analysis with human and vehicle classification
- Dual illuminator (IR and LED) with a range of up to 50 meters
- Support for Micro SD cards up to 256GB for local recording
- Built-in microphone for ambient sound recording
- Durable metal housing with IP67 ingress protection class
- Power supply via PoE (802.3af) or 12V DC
- Compliance with ONVIF 19.12 standard
Description
The APTI-AI803CA5IL-27135W-Z IP camera is an advanced video surveillance solution that offers unprecedented image quality in 8 Mpx (4K UHD) resolution. Thanks to the use of a modern SONY Starvis Back-illuminated CMOS sensor, the device guarantees exceptional detail and color fidelity. The main advantage of this model is the Full-Color technology, which allows for a bright, color image even in total darkness, significantly increasing the effectiveness of identifying people and vehicles.
The device is equipped with a Motozoom type lens with a variable focal length from 2.7 mm to 13.5 mm, which allows for remote adjustment of the viewing angle in the range from 103° to 29°. This is an ideal solution for monitoring both wide shots and distant details. The camera has a dual illuminator: classic infrared (IR) and white light (LED), both with a range of up to 50 meters, which allows for flexible selection of the night mode depending on the user's needs.
Another important advantage is support for intelligent video analysis (IVS). The camera can classify objects (people/vehicles), detect intrusions, line crossing, loitering, or illegal parking. A solid metal housing with an IP67 protection class ensures complete protection against harsh weather conditions, making it an ideal choice for outdoor installations. PoE standard support (802.3af) significantly simplifies installation, allowing power and data to be transmitted via a single network cable. Additionally, a built-in microphone allows for audio recording, providing a complete surveillance system.
Specification
Standard and Resolution
Standard: IP; Resolution: 3840 x 2160 - 8 Mpx 4K UHD, 2560 x 1440 - 3.7 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p
Sensor and Image
Sensor: 1/2.8 " SONY Starvis Back-illuminated CMOS; Transmission speed: 20 fps @ 8 Mpx; Compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Optics
Lens: 2.7 ... 13.5 mm - Motozoom; Viewing angle: 103 ° ... 29 °
Night Illumination
IR illuminator range: 50 m; White light (LED) illuminator range: 50 m; Full Color function - color night mode
Audio
Built-in microphone; Audio transmission over network
Memory and Connectors
Memory card slot: Micro SD card support up to 256GB; Network interface: 10/100 Base-T (RJ-45)
Intelligent Video Analysis (IVS)
Detected events: intrusion, line crossing, loitering detection, crowd gathering detection, human and vehicle classification, entry/exit detection, illegal parking, line crossing statistics, person/vehicle counter
Advanced Image Functions
WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), ROI (Region of Interest enhancement), BLC/HLC (Backlight/Highlight Compensation), ICR (Mechanical Infrared Filter), Mirror (Mirror image), Motion detection, Privacy zones (max. 3), Sharpness (Contour sharpening)
Software and Access
Mobile access: BitVision (Android/iOS) - the application allows for live view, playback of recordings, and configuration of camera parameters via the P2P cloud without the need for a public IP address. PC software: iVMS320 program for comprehensive surveillance system management, supporting up to 64 channels, recording schedules, and advanced analysis functions. Network tools: Apti SearchTool for quick searching and configuration of IP addresses of devices in the local network (min. 300 characters).
Network and Protocols
ONVIF: 19.12; WEB Server: Built-in; Max. number of online users: 3; Access ports: WWW: 80, PC application: 80, Mobile application: 80, ONVIF: 80, RTSP: 554
Power Supply and Consumption
Power supply: PoE (802.3af), 12 V DC / 700 mA; Power consumption: ≤ 8.4 W
Construction
Housing: Compact - Metal; Color: White; Protection class: IP67; Operating temperature: -20 °C ... 60 °C
Default Configuration
IP address: 192.168.1.168; Login/Password: admin / 123456 (Password must be set on first launch)
Other
Supported languages: Polish, English, and others; NDAA Certificate: Yes; Warranty: 2 years
Contents
1x IP camera
1x Mounting kit
1x RJ-45 connector cover
1x User manual
Dimensions, Weight
Product dimensions: 268 x 95 x 86 mm (D x W x H)
Package dimensions: 285 x 165 x 130 mm (D x W x H)
Product weight: 1186 g
Weight with packaging: 1426 g
