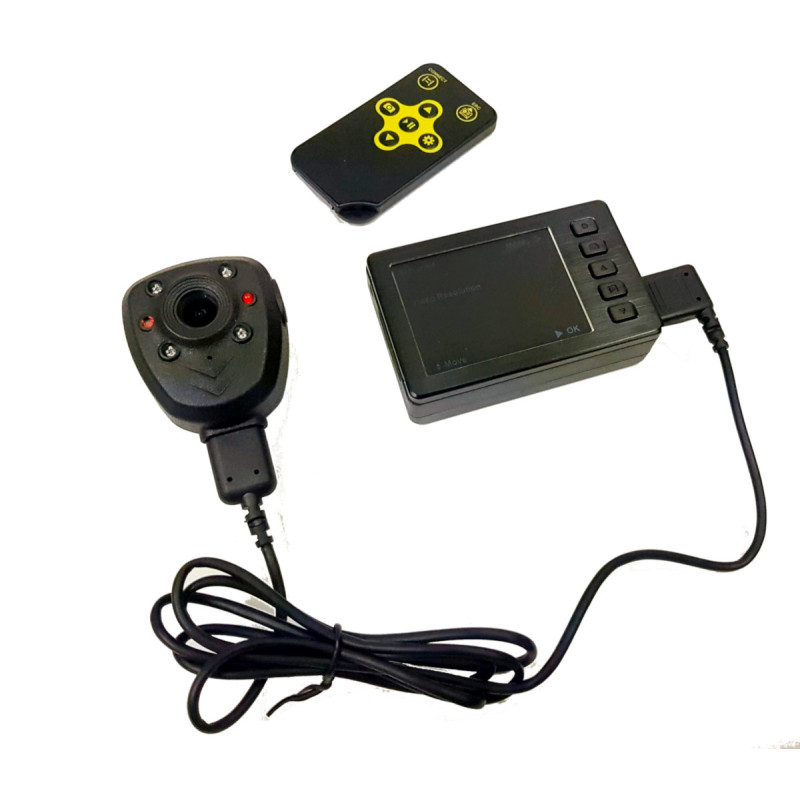

Portable Mini SD Card Recorder with LCD and Personal Full HD 1080P Spy Camera

Model: ACTii AC9863

EAN: 6931240098639 SKU: 986336118

• FULL HD 1080P (1920x1080) video recording.
• Built-in 2.7" LCD monitor.
• Includes a full HD color camera with microphone and IR LEDs for night recording.
• Saves VIDEO and AUDIO to an SD card in H.264 (AVI) format with a resolution of 1920x1080. Recordings can be played back on any computer media player.
• VIDEO input allows connection of any industrial camera; TV-OUT output allows connection to a TV.
• The recorder can be connected to a computer via USB cable, allowing you to browse recording archives.
• The recorder also functions as an MP4 player. You can upload videos (AVI) and music (MP3) and play them on the LCD screen or through the TV-OUT on a television.
• Built-in batteries provide up to 4 hours of operation without mains power.
• Compact size, solid construction (rubberized casing), stable performance.
• Motion detection recording, overwrite feature for oldest files.
• High-quality H.264 compression ensures recordings take up little space while maintaining excellent quality.
• Included remote control allows for easy and discreet start of recording from a distance.
• Side button on the camera allows for convenient operation.

Description

Recorder with camera for police officers, detectives, ticket inspectors, and city guards, featuring a camera with IR LEDs for night recording.

Recording resolution: FULL HD 1080P (1920x1080).

Ideally suited for installation in cars, buses, trucks, or construction machinery, for recording lectures, or for law enforcement to record incidents, etc.

Included remote control allows for easy and discreet recording from a distance.

Button on the camera allows you to start or stop recording at any time.

Specification

Recorder parameters

Video and Audio Output (TV-OUT): 1x mini jack (cable included) / Video: 75ohm

Mini USB Port: 1x USB 2.0 480Mbps for connection to computer

Real-time preview on LCD screen

30fps (perfectly fluid image)

Image resolution: 960x320

Recorded image

30fps (perfectly fluid image), 1, 5, 10, 15, 25 fps

Encoding: H.264

Image resolution: 1080p (1920x1080); 720p (1280x720); 480p (640x480)

Overwrite oldest recordings option: YES

Internal memory: 128MB

Recording mode: Standard/Motion detection/Schedule/Pre-recording/

Pre-detection/Continuous photos/Pre-Capture/Overwrite

Memory Card Support

YES

Micro SD Card

Supported card capacity: up to 64GB

Viewing saved video materials

Search recordings: selection of recording time to view.

Other

Menu language: English, Russian

Compatible with systems: Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

Photo function

Date and time stamp visible on recordings: ON/OFF

Recorder user information visible on recordings: ON/OFF

Maximum photo resolution: MAX 16M

Power supply

Power adapter 5V DC 2A

Power consumption: 350mA - 550mA

Battery: 2200mAh, Li-ion; 6 hours of operation.

Recorder dimensions, weight

Recorder dimensions (L,W,H): 19x92x58

Weight: Recorder: 109g,

Camera parameters

WDR: YES

Resolution: 480P, 720P, 1080P,

Photo function

NTSC / PAL

Day and night operation, indoor and outdoor

Easy installation: standard mini HDMI jack

IR LEDs: YES

Pixel Size: 1.4um(H)*1.4um(V)

Video System: NTSC and PAL

CMOS Camera

Sensor: Progressive 1/4 inch CMOS

Sensitivity: 0.03 Lux / F2.0 (50IRE)

Lens: F/No; F2.0; 3.7MM; viewing angle: 65°; recording distance: 10 cm to ∞

Electronic shutter: 1/8 - 1/30,000

Power: DC 3.3V

Power consumption: 200 mA

Dimensions: 55x48x33mm

Weight: 15g

Camera cable length: 58cm.

Cable extension option: Standard Mini HDMI

Additional information

Very well-equipped mini video and audio recorder for micro SD cards. The recorder includes a camera with a microphone and IR LEDs. The recorder allows video and audio recording on an SD card in high resolution 1920x1080 in AVI (H.264) format. Materials can be viewed directly on the recorder screen, through the TV-OUT output on a TV, on a computer via USB cable, or by removing the SD card from the recorder. The recorder features a built-in 2.7" TFT LCD screen with a high resolution of 960x320; the battery allows for 4 hours of operation or 35 hours in standby mode.

The camera is a new generation of FULL HD cameras. The image quality is perfect. The IR LEDs in the camera allow for night recording.

Useful features:

Motion detection recording

Automatic recorder shutdown after a set time

Overwrite function for oldest recordings.

Included wireless remote control for starting/stopping recording.

Recording start button on the side of the device and on the side of the camera allows for quick recording.

Clip with recording start/stop buttons

The camera's WDR (Wide Dynamic Range) function allows the camera to be used in very diverse conditions, enabling operation in both dark rooms and bright sunlight by balancing contrasts and eliminating bright or dark spots in the image. It processes a much wider range of brightness than standard cameras, and thanks to appropriate dynamic image processing algorithms, overexposure is eliminated and underexposed parts of the image are enhanced – accurate scene registration is possible despite high contrast.

Camera focus is set from 20cm to infinity, allowing for easy reading of text without changing the focal length.

A separate microphone with a built-in AGC gain control circuit can be disconnected, making it easier to hide the entire set.

Included case for the recorder

Set contents

1x Recorder

1x Camera

1x Remote control

1x Case

1x Battery

1x Camera cable

+ Accessories visible in the photos

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 19 x 92 x 58 mm (D x W x H)

Package dimensions: 120 x 120 x 80 mm (D x W x H)

Product weight: 350 g

Weight with packaging: 430 g
