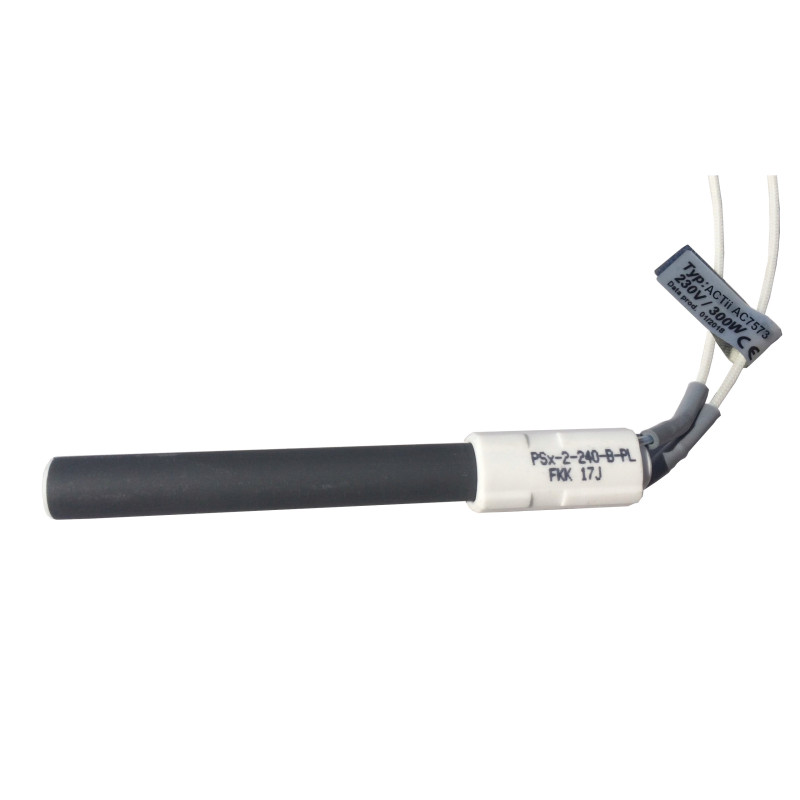

Ceramic Igniter Heater for Biomass Pellet 300W

Model: ACTii AC7573

EAN: 6931240075739 SKU: 757374379

• Very low energy consumption compared to a conventional heater
• Durable (do not wear out)
• Ignition time 60~90 seconds
• Tested for 100,000 ignition cycles, used on the Japanese market for 15 years
• Easy to install; also suitable for retrofitting existing installations
• Fits any steel pipe with inner diameter >18mm
• Continuous operating temperature: 1000°C
• Does not overheat even in case of fan failure
• Fully insulated connections and covered contacts
• UL/EC certified wiring (cable resistant to 200-500°C)
• Resistant to oxidation and corrosion
• Ignites wood pellets, wood chips, logs, straw and other biomass
• RoHS compliant, REACH regulation on hazardous substances

Description

The ACTii series of igniters is a solution that revolutionizes the biomass ignition process, Ceramic igniters used in most pellet burners.

Igniter manufactured in the EU from the highest quality products which guarantees long-term and trouble-free operation.

Specification

Parameters

AC 220-240V ~ 50/60 Hz

Power: 300W

Maximum temperature in continuous operation - 1000°C (momentary: 1100°C)

Ignition time - 60 seconds (depending on the position of the heater in the furnace)

Dimensions, weight

Total length: 110 mm

Heating capillary length: 78 mm

Ceramic holder length: 32 mm

Capillary diameter: 12 mm

Cable length: 350 mm

Application

Pellet boilers

Pellet boiler

Wood pellet burners

Wood chip burner

Straw burner

Other biomass burner

Set contents

Igniter

Certificates and standards

CE, RoHS

TUV Rheinland - EN 60335

TUV Rheinland - RoHS

Dimensions, Weight

Product dimensions: 18 x 18 x 110 mm (D x W x H)

Packaging dimensions: 50 x 120 x 50 mm (D x W x H)

Product weight: 80 g

Weight with packaging: 95 g

Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
