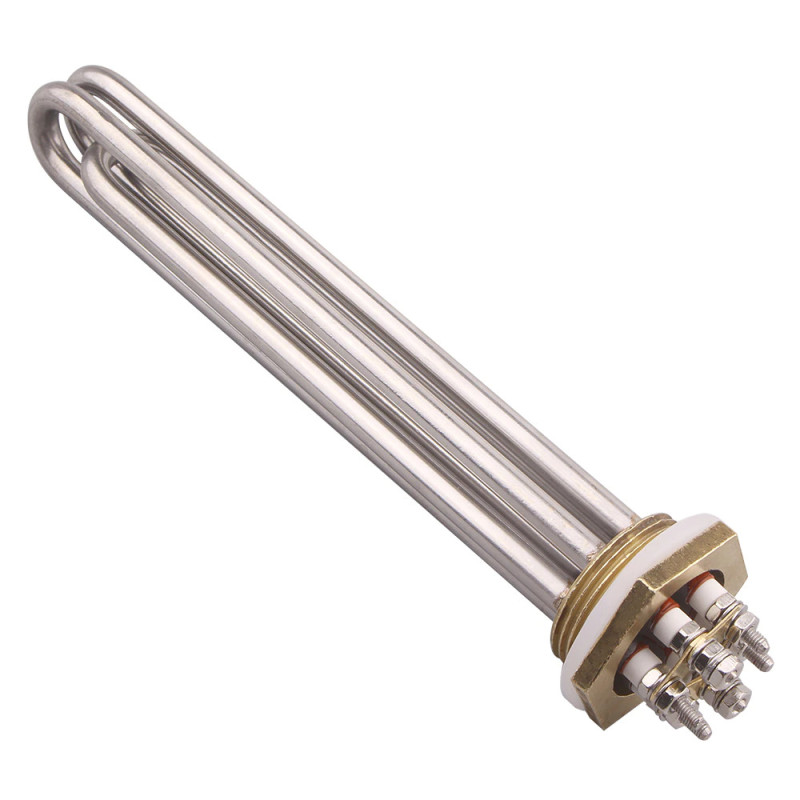

36V 1200W 1.2kW 3x 400W Heating Element Photovoltaic Solar Panel Wind Turbine 1 1/4 Flange

Model: ACTii AC2507

EAN: 6931240025079 SKU: 250729138

• Brass flange
• Solid construction.
• Three independent coils
• Gasket included

Description

Heating element for domestic hot water (DHW) tanks.

Heating element with 36V operating voltage, 3x 400W (1200W) power.

Heating element designed to work with wind turbines and photovoltaic panels.

Heating element has three independent coils on a single flange.

Heating element can operate on AC or DC voltage.

Specification

Parameters

For boilers and heat exchangers 50-200l

Parameters :

Voltage: 36V (DC or AC voltage)

Power: 1200W ( 3x 400W )

Length of heating element from the flange: 210 mm

Mounting: 5/4" (1 1/4" BRASS) brass flange with insulated heating assembly

Heating element material: SUS304

Heating element diameter: 8mm

Total length: 240mm

Set contents

Heating element

Gasket

Dimensions, Weight

Product dimensions: 50 x 50 x 240 mm (Depth x Width x Height)

Packaging dimensions: 260 x 60 x 60 mm (Depth x Width x Height)

Product weight: 376 g

Weight with packaging: 401 g

Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
