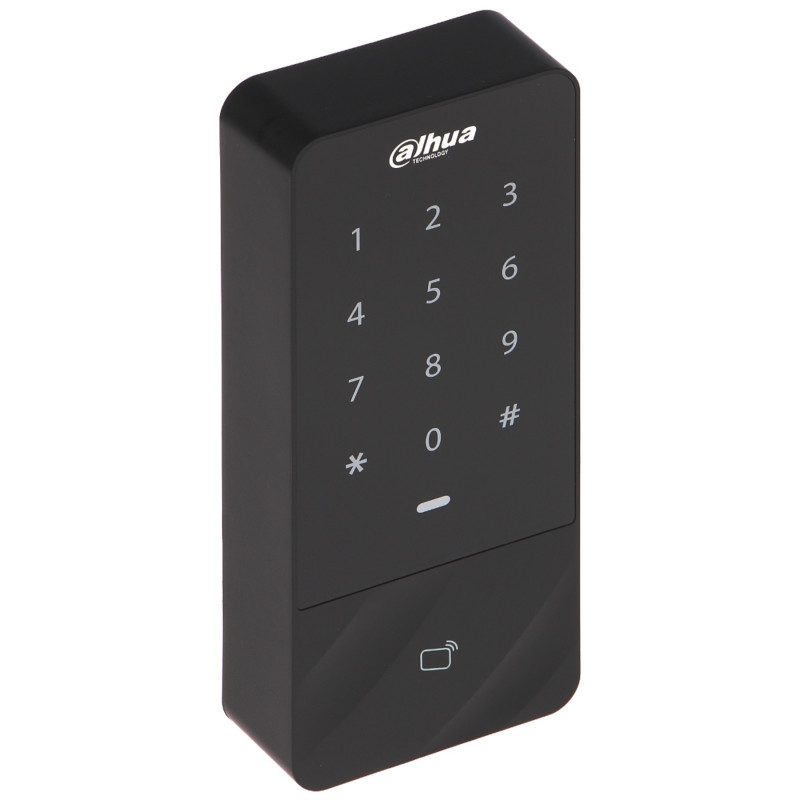

Dahua ASI1201E-V1 RFID Mifare 13.56MHz PIN IP66 Ethernet RS-485 Wiegand Access Controller DAHUA ASI1201E-V1
zł 845.01
Tax included
The ACCESS CONTROLLER is a professional solution designed for access control systems, combining modern design with high functionality. The device is engineered to work in demanding conditions, verified by an IP66 ingress protection rating, which ensures full resistance to dust and heavy water jets. This makes the controller ideal for both indoor and outdoor use, providing reliable operation throughout the year. Elegance and intuitiveness are the hallmarks of this model. The black high-quality PC casing and touch-sensitive keypad with eye-catching blue backlight ensure the device fits perfectly with modern architecture. The user has several identification modes at their disposal, including Mifare proximity cards (13.56 MHz), PIN codes, or a combination of both, which significantly increases the level of facility security. The device features massive memory capacity, allowing support for up to 30,000 users and the recording of 60,000 events. Support for Ethernet, RS-485, and Wiegand interfaces allows for flexible integration with other security systems and easy management via PC. Additional functions such as anti-passback, tamper alarms, and support for advanced management platforms like SmartPSS Lite and DSS Pro make this controller one of the most comprehensive solutions in its class. By choosing this product, you are investing in security, convenience, and top-tier technology that will meet the expectations of even the most demanding access control system administrators.
Dahua ASI1201E-V1 RFID Mifare 13.56MHz PIN IP66 Ethernet RS-485 Wiegand Access Controller
Model: DAHUA ASI1201E-V1
EAN: 6931240013700 SKU: 931013701
- Standalone operation without constant server connection
- Support for Mifare 13.56 MHz S50 standard proximity cards
- Touch-sensitive keypad with blue backlight for easy operation at night
- High IP66 ingress protection rating allows for outdoor installation
- Support for up to 30,000 users and 30,000 RFID cards
- Extensive event memory storing up to 60,000 logs
- Multiple communication interfaces: Ethernet, RS-485, Wiegand
- Anti-passback function preventing unauthorized entry
- Capability for remote management and software updates via network
- Integrated tamper alarm and door status detection
Description
The ACCESS CONTROLLER is a professional solution designed for access control systems, combining modern design with high functionality. The device is engineered to work in demanding conditions, verified by an IP66 ingress protection rating, which ensures full resistance to dust and heavy water jets. This makes the controller ideal for both indoor and outdoor use, providing reliable operation throughout the year.
Elegance and intuitiveness are the hallmarks of this model. The black high-quality PC casing and touch-sensitive keypad with eye-catching blue backlight ensure the device fits perfectly with modern architecture. The user has several identification modes at their disposal, including Mifare proximity cards (13.56 MHz), PIN codes, or a combination of both, which significantly increases the level of facility security. The device features massive memory capacity, allowing support for up to 30,000 users and the recording of 60,000 events. Support for Ethernet, RS-485, and Wiegand interfaces allows for flexible integration with other security systems and easy management via PC. Additional functions such as anti-passback, tamper alarms, and support for advanced management platforms like SmartPSS Lite and DSS Pro make this controller one of the most comprehensive solutions in its class. By choosing this product, you are investing in security, convenience, and top-tier technology that will meet the expectations of even the most demanding access control system administrators.Specification
Communication and Interfaces
Built-in Ethernet RJ-45 port (10/100 Mbps), RS-485, and Wiegand interface (input and output), ensuring full compatibility with external systems.
Card Support and Reader
Mifare 13.56 MHz (S50) standard with a read range of up to 6 cm and a response time of less than 0.1 seconds.
Keypad
Touch-sensitive control buttons integrated under a glass surface, equipped with blue LED backlight and audible signaling (Buzzer).
System Capacity
Indexed users: 30,000; RFID card memory: 30,000; Password memory: 30,500; Event memory: 60,000.
Identification Modes
RFID proximity card, Password (PIN), Remote access via software, Multi-factor authentication (Card + PIN).
Software and Management
The device works with professional Dahua platforms: SmartPSS Lite and DSS Pro. SmartPSS Lite is free software allowing centralized system management from a PC. It allows for remote parameter configuration, adding users with permissions assigned to 128 access groups, and real-time log viewing. The system allows exporting work time reports, schedule configuration, and remote door opening. DSS Pro is an enterprise-class platform offering advanced analytics, support for building maps, and alarm visualization, allowing full control over facility security. The software also enables updating the controller firmware via TCP/IP network.
Security Functions
Anti-passback, master card addition, multi-user authentication, remote access verification.
Door Support
Lock control, door status detection (open/closed), exit button support, door opening time control.
Alarm System
Door left open alarm, forced entry alarm, built-in tamper output.
Casing and Design
Made of durable PC plastic, black color, modern Slim design, surface mounting.
Durability and Operating Conditions
IP66 ingress protection; Operating temperature from -30 °C to 60 °C; Air humidity from 0% to 90% (non-condensing).
Electrical Parameters
12V DC power supply; Power consumption: 1A (without lock) to 2A (with lock); Maximum device self-consumption ≤ 1A.
Additional Capabilities
Automatic system registration, 128 access groups, support for holiday and vacation schedules.
Dimensions and Weight
Device dimensions: 142 x 62 x 23 mm and net weight 0.16 kg (160 g).
Contents
1x ASI1201E-V1 Access Controller
1x Set of mounting screws and wall plugs
1x Quick start guide
Dimensions, Weight
Product dimensions: 23 x 62 x 142 mm (D x W x H)
Package dimensions: 55 x 135 x 195 mm (D x W x H)
Product weight: 160 g
Package weight: 288 g
