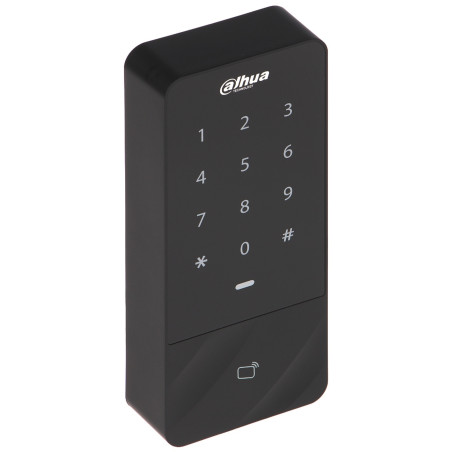

Autonomous RFID Mifare 13.56MHz PIN Access Controller IP66 Ethernet RS-485 Wiegand Outdoor

Model: DAHUA ASI1201E-V1

EAN: 6931240013700 SKU: 931013701

• Autonomous operation without the need for a constant connection to a server
• Support for Mifare 13.56 MHz S50 proximity cards
• Touch keypad with blue backlight for easy operation at night
• High IP66 ingress protection rating allowing for outdoor installation
• Support for up to 30,000 users and 30,000 RFID cards
• Extensive event memory storing up to 60,000 logs
• Multiple communication interfaces: Ethernet, RS-485, Wiegand
• Anti-passback function preventing unauthorized re-entry
• Capability for remote management and software updates via network
• Integrated tamper alarm and door status detection

Description

THE ACCESS CONTROLLER is a professional solution designed for access control systems, combining modern design with high functionality. The device has been designed for operation in demanding conditions, which is confirmed by its IP66 ingress protection rating, guaranteeing full resistance to dust and strong water jets. As a result, the controller is ideal for both indoor and outdoor use, ensuring reliable operation throughout the year.

Specification

Elegance and intuitiveness are the defining features of this model. A black housing made of high-quality PC plastic and a touch keypad with striking blue backlighting make the device blend perfectly with modern architecture. The user has access to several identification modes, including Mifare proximity card (13.56 MHz), PIN code, or a combination of both methods, which significantly increases the security level of the facility.

The device is characterized by a massive memory capacity, allowing for support of up to 30,000 users and recording 60,000 events. Support for Ethernet, RS-485, and Wiegand interfaces enables flexible integration with other security systems and easy management from a computer. Additional features such as anti-passback, tamper alarms, or support for advanced management platforms like SmartPSS Lite and DSS Pro make this controller one of the most complete solutions in its class. By choosing this product, you are investing in security, convenience, and top-tier technology that will meet the expectations of even the most demanding access control system administrators.

Communication and Interfaces

Built-in Ethernet RJ-45 port (10/100 Mbps), RS-485, and Wiegand interface (input and output), ensuring full compatibility with external systems.

Card Support and Reader

Mifare 13.56 MHz (S50) standard with a reading range of up to 6 cm and a response time of less than 0.1 s.

Keypad

Touch control buttons integrated under a glass surface, equipped with blue LED backlighting and audible signaling (Buzzer).

System Capacity

Indexed users: 30,000; RFID card memory: 30,000; Password memory: 30,500; Event memory: 60,000.

Identification Modes

RFID proximity card, Password (PIN), Remote access via software, Multi-factor authentication (Card + PIN).

Software and Management

The device works with professional Dahua platforms: SmartPSS Lite and DSS Pro. SmartPSS Lite is free software allowing for centralized system management from a PC. It allows for remote configuration of parameters, adding users with assigned permissions to 128 access groups, and viewing logs in real-time. The system enables the export of time and attendance reports, configuration of schedules, and remote door opening. DSS Pro is an enterprise-class platform offering advanced analytics, support for building maps, and alarm visualization, allowing for full control over facility security. The software also enables updating the controller firmware via the TCP/IP network.

Security Features

Anti-passback (protection against card passing), adding MASTER cards, multi-user authentication, remote access verification.

Door Handling

Lock control, door status detection (open/closed), exit button support, door opening time control.

Alarm System

Door open too long alarm, forced opening alarm, built-in tamper output.

Housing and Design

Made of durable PC plastic, black color, modern Slim design, surface mounting.

Resistance and Operating Conditions

IP66 ingress protection rating; Operating temperature from -30 °C to 60 °C; Air humidity from 0% to 90% (non-condensing).

Electrical Parameters

12V DC power supply; Power consumption: 1A (without lock) to 2A (with lock); Maximum self-power consumption ≤ 1A.

Additional Capabilities

Automatic system registration, 128 access groups, support for holiday and vacation schedules.

Dimensions, Weight

Product dimensions: 23 x 62 x 142 mm (Depth x Width x Height)

Package dimensions: 55 x 135 x 195 mm (Depth x Width x Height)

Product weight: 160 g

Weight with packaging: 288 g
