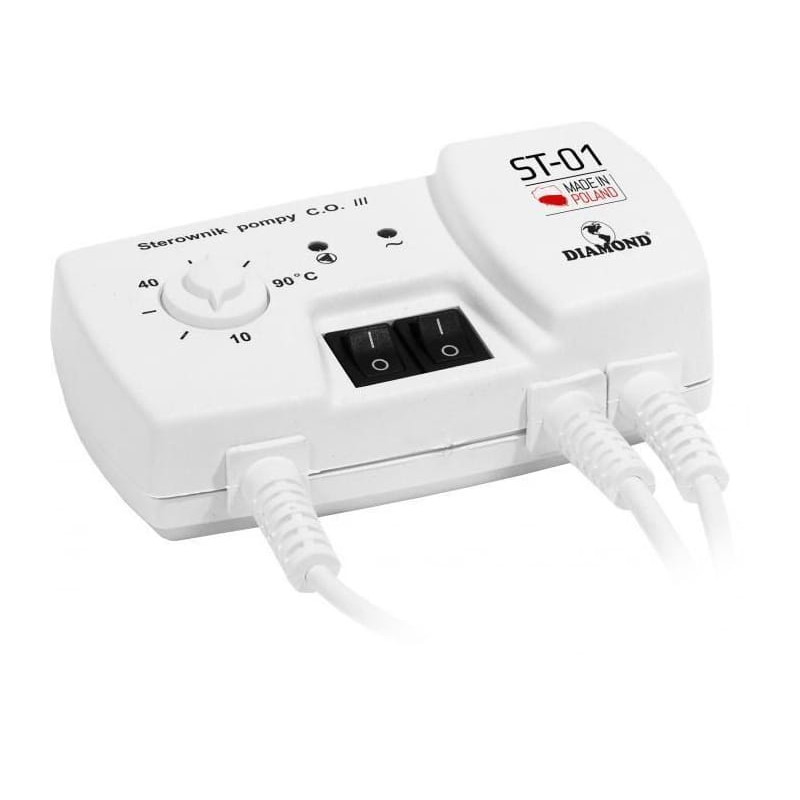

Central heating pump controller boiler temperature regulator thermostat for CO pump heating automation Diamond ST-01
221,66 zł
Tax included
The ST-01 central heating pump controller is an advanced electronic device designed to optimize the operation of central heating systems. Its primary task is the intelligent management of the circulation pump, which translates into measurable economic and technical benefits. Thanks to the use of a precise control circuit, the regulator automatically switches on the pump when the water temperature in the boiler reaches the level set by the user, and switches it off when the boiler cools down after the furnace has been extinguished.
The main advantage of using the ST-01 controller is significant electricity savings. Depending on the intensity of boiler usage, the device can reduce the pump's power consumption by up to 60%. This is possible by eliminating unnecessary operating cycles when the boiler is not generating heat. Additionally, limited pump operation directly contributes to extending its service life, reducing the risk of failure and lowering maintenance costs.
The device is characterized by extremely simple operation. It is equipped with an intuitive potentiometer that allows for smooth adjustment of the activation temperature in a wide range from 10°C to 90°C. The solid construction and the use of high-quality components guarantee reliability over many heating seasons. The controller is an ideal solution for those looking for a simple yet effective way to improve their home heating system and increase thermal comfort in the building.
Central heating pump controller boiler temperature regulator thermostat for CO pump heating automation
Model: Diamond ST-01
EAN: 6931240085431 SKU: 931285431
- Automatic control of the central heating circulation pump
- Electricity savings of up to 60%
- Extends pump service life by eliminating unnecessary operation
- Wide temperature adjustment range from 10°C to 90°C
- Built-in 5°C hysteresis to prevent oscillations
- Simple operation via analog potentiometer
- Long temperature sensor cable (1.2m)
- Robust housing with IP-20 protection rating
Description
The ST-01 central heating pump controller is an advanced electronic device designed to optimize the operation of central heating systems. Its primary task is the intelligent management of the circulation pump, which translates into measurable economic and technical benefits. Thanks to the use of a precise control circuit, the regulator automatically switches on the pump when the water temperature in the boiler reaches the level set by the user, and switches it off when the boiler cools down after the furnace has been extinguished.
The main advantage of using the ST-01 controller is significant electricity savings. Depending on the intensity of boiler usage, the device can reduce the pump's power consumption by up to 60%. This is possible by eliminating unnecessary operating cycles when the boiler is not generating heat. Additionally, limited pump operation directly contributes to extending its service life, reducing the risk of failure and lowering maintenance costs.
The device is characterized by extremely simple operation. It is equipped with an intuitive potentiometer that allows for smooth adjustment of the activation temperature in a wide range from 10°C to 90°C. The solid construction and the use of high-quality components guarantee reliability over many heating seasons. The controller is an ideal solution for those looking for a simple yet effective way to improve their home heating system and increase thermal comfort in the building.
Specification
Supply voltage
230V / 50Hz +/- 10%
Power consumption
Very low, below 2W
Temperature adjustment range
10°C to 90°C
Hysteresis
Fixed, 5°C
Device operating temperature
from -10°C to 50°C
Maximum output load current
180W
Housing protection rating
IP-20
Temperature sensor cable length
1.2 meters
Sensor type
Thermal contact sensor
Adjustment method
Analog via potentiometer
Operation signaling
LEDs indicating power status and pump operation
Control logic and interface
The ST-01 device uses an electronic circuit that compares the temperature read from the sensor with the value set by the user via a knob (potentiometer). The interface is minimalist and reliable, which eliminates software errors typical of complex digital controllers. The system operates based on a hysteresis algorithm (5°C), which prevents the pump from switching on and off too frequently during minor temperature fluctuations (so-called oscillations), protecting the pump motor from overheating and start-up wear. The 1.2m temperature sensor allows for convenient mounting on the supply pipe. The housing made of durable plastic ensures safe use in boiler room conditions. The device does not require complex configuration – after connecting the power supply and setting the threshold temperature, the system works fully autonomously, monitoring the thermal state of the boiler 24 hours a day.
Contents
1x ST-01 controller with power cable
1x Temperature sensor on a 1.2m cable
1x User manual
1x Mounting ties for the sensor
Dimensions, Weight
Product dimensions: 50 x 120 x 80 mm (D x W x H)
Packaging dimensions: 70 x 150 x 100 mm (D x W x H)
Product weight: 350 g
Weight with packaging: 450 g
