WiFi smart underfloor heating control set SUPLA gateway strip actuators thermostats Auraton AURSMC1121010V
1.352,98 zł
Tax included
The AURATON SUPLA 2 set is a comprehensive and modern solution designed for precise management of underfloor heating in a smart home. Thanks to integration with the popular SUPLA system, users gain full control over thermal comfort from anywhere in the world using a smartphone, tablet, or computer. This system not only raises the standard of living but, above all, generates real savings on energy bills by optimizing the operation of heating devices.

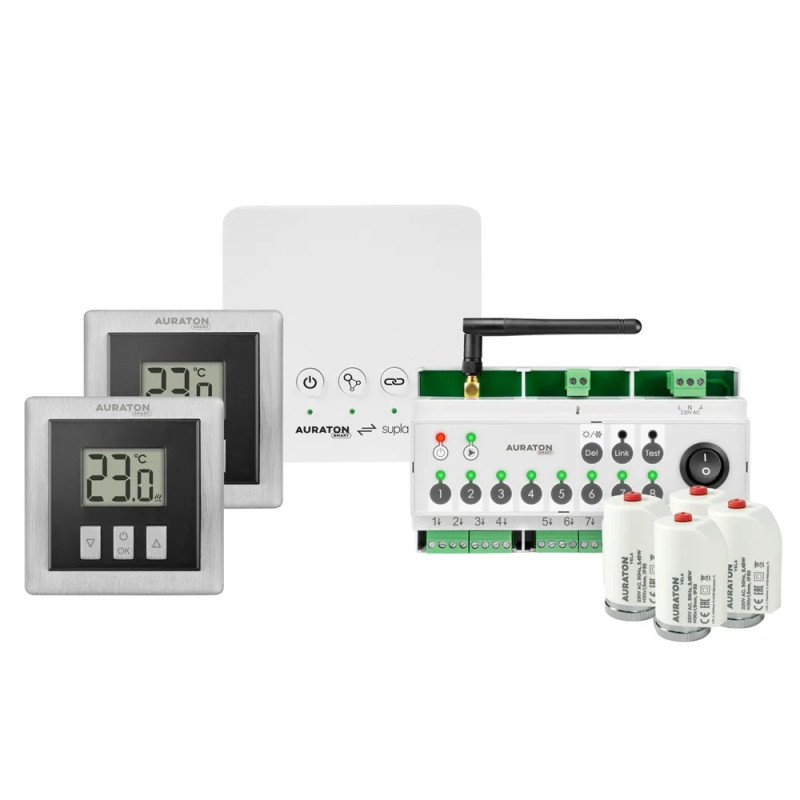

The heart of the set is the AURATON BOX internet gateway, which ensures stable and reliable communication between all system elements and the SUPLA cloud. The package also includes an advanced Multizone Controller strip, supporting up to 8 independent heating zones, and four high-quality Vela thermoelectric actuators. The set is completed by two elegant, black Heat Monitor wireless thermostats, which continuously monitor the temperature in rooms and send data to the central unit.
Advantages of the AURATON SUPLA 2 system:
- Full automation: Ability to create advanced time schedules and scenarios dependent on the needs of household members.
- Intuitive operation: The SUPLA application offers a clear interface in Polish, making home management simple even for non-technical people.
- Safety and protection: Built-in functions such as Furnace Guard (furnace protection), Pump Guard (pump protection), and Heat Chip (overheating protection) guarantee the longevity of the installation.
- Expansion flexibility: The AURATON BOX gateway allows for the connection of up to 50 devices from the AURATON Smart series, which enables the gradual expansion of the system with additional sensors and modules.
- Aesthetics: The modern design of the black Heat Monitor thermostats fits perfectly into any contemporary interior, combining functionality with elegance.
WiFi smart underfloor heating control set SUPLA gateway strip actuators thermostats
Model: Auraton AURSMC1121010V
EAN: 6931240011133 SKU: 931211134
- Complete set for controlling 8 underfloor heating zones
- Full integration with the SUPLA ecosystem (WiFi / Cloud)
- Remote control via Android and iOS mobile app
- Heat Chip function protecting the installation against overheating
- Pump Guard function preventing central heating pump seizure
- Furnace Guard function protecting the furnace against frequent cycling
- Wireless thermostats with clear LCD displays
- Possibility of mounting the control strip on a DIN rail
- Quiet and smooth operation of thermoelectric actuators
- Radio range up to 300 meters in open terrain
Description
The AURATON SUPLA 2 set is a comprehensive and modern solution designed for precise management of underfloor heating in a smart home. Thanks to integration with the popular SUPLA system, users gain full control over thermal comfort from anywhere in the world using a smartphone, tablet, or computer. This system not only raises the standard of living but, above all, generates real savings on energy bills by optimizing the operation of heating devices.
The heart of the set is the AURATON BOX internet gateway, which ensures stable and reliable communication between all system elements and the SUPLA cloud. The package also includes an advanced Multizone Controller strip, supporting up to 8 independent heating zones, and four high-quality Vela thermoelectric actuators. The set is completed by two elegant, black Heat Monitor wireless thermostats, which continuously monitor the temperature in rooms and send data to the central unit.
Advantages of the AURATON SUPLA 2 system:
- Full automation: Ability to create advanced time schedules and scenarios dependent on the needs of household members.
- Intuitive operation: The SUPLA application offers a clear interface in Polish, making home management simple even for non-technical people.
- Safety and protection: Built-in functions such as Furnace Guard (furnace protection), Pump Guard (pump protection), and Heat Chip (overheating protection) guarantee the longevity of the installation.
- Expansion flexibility: The AURATON BOX gateway allows for the connection of up to 50 devices from the AURATON Smart series, which enables the gradual expansion of the system with additional sensors and modules.
- Aesthetics: The modern design of the black Heat Monitor thermostats fits perfectly into any contemporary interior, combining functionality with elegance.
Specification
AURATON BOX Gateway - Power supply
5V DC, 2W (USB-C connector)
AURATON BOX Gateway - Communication
WiFi 2.4 GHz (IEEE 802.11 b/g/n), Radio 868 MHz
AURATON BOX Gateway - Operating parameters
Temperature range: 0 – 45°C, Protection rating: IP20, Supports up to 50 devices
Multizone Controller strip - Power supply
230V AC, 50Hz, Power consumption approx. 1.5W
Multizone Controller strip - Outputs
8 heating zones (30W per zone), Central heating pump output (200W), Potential-free relay (max 250V AC, 2A)
Multizone Controller strip - Dimensions
158.90 x 90.00 x 58.50 mm
Vela Actuator - Technical parameters
Power supply: 230V AC, 3.5W, Stroke: 3.6 mm, Actuating force: 100 N, Type: NC (normally closed), Thread: M30x1.5 mm, IP40
Heat Monitor Thermostat - Power supply
2x AAA 1.5V alkaline battery
Heat Monitor Thermostat - Regulation
Control range: 0 – 40°C, Hysteresis: ±0.2°C, Accuracy: 0.1°C, Duty cycle: daily
Radio range
Up to 30 m inside the building (standard walls), up to 300 m in open terrain
Smart functions
FrostGuard (anti-freeze protection), Hotel mode, Furnace Guard, Pump Guard, Heat Chip
Software and Interface
The system based on the SUPLA platform enables comprehensive management of home automation from the level of a free mobile application available for Android and iOS systems. The user has access to the cloud.supla.org administration panel, which allows for remote configuration of devices, monitoring of temperature history, and creation of advanced work schedules for each zone separately. The software supports integration with voice assistants such as Google Home and Amazon Alexa, which allows for heating control using voice commands. The system is characterized by a high level of data security and the possibility of easy integration with other SUPLA modules, such as lighting, roller shutter, or gate controllers, creating a coherent Smart Home ecosystem.
Contents
1x AURATON BOX internet gateway
1x Multizone Controller strip
4x Vela thermoelectric actuator
2x Heat Monitor wireless thermostat (black)
1x External antenna
User manual
Dimensions, Weight
Product dimensions: 59 x 159 x 90 mm (D x W x H)
Packaging dimensions: 120 x 350 x 250 mm (D x W x H)
Product weight: 1550 g
Weight with packaging: 1950 g
