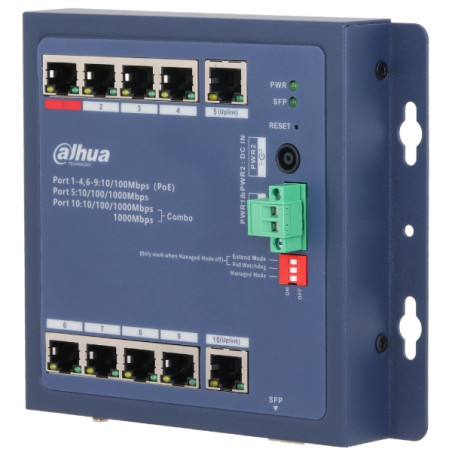

Managed Industrial PoE Switch 8-port SFP Gigabit Uplink Combo DIN 90W Watchdog DAHUA CHS4110-8ET-90-F
459,53 zł
Tax included
The CHS4110-8ET-90-F managed industrial switch is a professional network solution designed by Dahua for the most demanding IP monitoring systems and industrial installations. The device is characterized by exceptional resistance to harsh environmental conditions, confirmed by a wide operating temperature range from -30°C to 65°C and a solid, IP30-rated metal housing.
The main advantage of this model is support for the Hi-PoE standard, which allows for delivering up to 90W of power on the first port, essential for modern PTZ cameras or high-power illuminators. The remaining seven ports offer standard PoE (802.3af/at) power up to 30W per port. The total power budget is 95W, providing flexibility in system design.
Another key advantage is the PoE Watchdog function. This system continuously monitors the status of connected devices and, if no response is detected, automatically restarts power on the given port, which significantly reduces service costs and increases the stability of the entire system. The Extend mode allows for data and power transmission over a distance of up to 250 meters at 10 Mbps, making it an ideal solution for large facilities.
The switch offers advanced management capabilities, including VLAN support, data flow control, and Loop Protection. Thanks to support for the DoLynk Care platform, administrators can remotely monitor network status, view topology, and diagnose faults using an intuitive mobile application. The device is also equipped with Combo-type Uplink ports (SFP/RJ45), which enables easy integration with fiber optic backbones. Mounting on a TH-35 DIN rail makes the switch perfectly suited for control cabinets and industrial switchboards.
Managed Industrial PoE Switch 8-port SFP Gigabit Uplink Combo DIN 90W Watchdog
Model: DAHUA CHS4110-8ET-90-F
EAN: 6931240052969 SKU: 931052961
- 8 PoE ports (1x Hi-PoE 90W, 7x PoE 30W)
- 2 Gigabit Uplink ports (including 1x Combo SFP/RJ45)
- EXTEND mode - transmission up to 250 meters
- PoE Watchdog function - automatic restart of unresponsive devices
- Cloud management via DoLynk Care app
- Loop Protection and VLAN support
- Durable IP30 metal housing with DIN rail mounting
- Wide operating temperature range from -30°C to 65°C
Description
The CHS4110-8ET-90-F managed industrial switch is a professional network solution designed by Dahua for the most demanding IP monitoring systems and industrial installations. The device is characterized by exceptional resistance to harsh environmental conditions, confirmed by a wide operating temperature range from -30°C to 65°C and a solid, IP30-rated metal housing.
The main advantage of this model is support for the Hi-PoE standard, which allows for delivering up to 90W of power on the first port, essential for modern PTZ cameras or high-power illuminators. The remaining seven ports offer standard PoE (802.3af/at) power up to 30W per port. The total power budget is 95W, providing flexibility in system design.
Another key advantage is the PoE Watchdog function. This system continuously monitors the status of connected devices and, if no response is detected, automatically restarts power on the given port, which significantly reduces service costs and increases the stability of the entire system. The Extend mode allows for data and power transmission over a distance of up to 250 meters at 10 Mbps, making it an ideal solution for large facilities.
The switch offers advanced management capabilities, including VLAN support, data flow control, and Loop Protection. Thanks to support for the DoLynk Care platform, administrators can remotely monitor network status, view topology, and diagnose faults using an intuitive mobile application. The device is also equipped with Combo-type Uplink ports (SFP/RJ45), which enables easy integration with fiber optic backbones. Mounting on a TH-35 DIN rail makes the switch perfectly suited for control cabinets and industrial switchboards.
Specification
LAN Ports
1 x RJ45 10/100 Base-T + Hi-PoE (802.3bt), 7 x RJ45 10/100 Base-T + PoE (802.3af/at), 1 x RJ45 (Uplink) 10/100/1000 Base-T, 1 x RJ45 (Uplink) 10/100/1000 Base-T - Combo Port, 1 x SFP (Uplink) 1000 Base-X - Combo Port
Management
Yes - local and via cloud (Cloud Managed)
Transmission Speed
10 / 100 Mbps - 8 LAN & PoE Ports, 10 / 100 / 1000 Mbps - 2 LAN Uplink Ports, 1000 Mbps - 1 SFP Port
PoE Output Power
30 W / PoE port @ 802.3af/at, 90 W @ Hi-PoE 802.3bt (port no. 1)
Maximum Total Power
95 W
Switching Capacity
5.6 Gbps
Packet Forwarding Rate
4.17 Mpps
MAC Address Table
8k
Buffer Memory
4 Mbit
Software and Remote Access
The device supports advanced local and cloud management via the DoLynk Care platform. The mobile application (available for Android and iOS) enables full control over the network infrastructure from anywhere in the world. Key software features include: real-time network topology visualization, allowing for immediate detection of transmission breaks; monitoring of PoE power parameters for each port individually; and remote configuration of functions such as VLAN or Loop Protection. The system also offers an intelligent notification mechanism for critical events. Thanks to cloud integration, the user can perform remote diagnostics and restart end devices without the need for physical presence at the site. The interface is clear and optimized for security system installers, offering quick access to traffic statistics and system logs. The software also supports automatic firmware updates, ensuring the highest level of cybersecurity.
Selected Features
EXTEND mode (up to 250m), PoE Watchdog (automatic restart), Loop Protection, Port Based VLAN, Topology preview, Data flow control, Jumbo Frame 9216 B
Power Supply
48 ... 57 V DC / 2 ... 1.69 A (power adapter included)
Environmental Conditions
Operating temperature: -30 °C ... 65 °C, Ingress protection: IP30, Mechanical protection class: IK06
Design and Mounting
Metal housing, Wall or DIN rail mounting (TS-35)
Reliability
MTBF > 1,000,000 h
Contents
1x Industrial Switch
1x Power adapter
1x DIN mounting kit
1x User manual
Dimensions, Weight
Product dimensions: 30 x 154 x 110 mm (D x W x H)
Package dimensions: 80 x 270 x 240 mm (D x W x H)
Product weight: 560 g
Weight with packaging: 1320 g
