- New

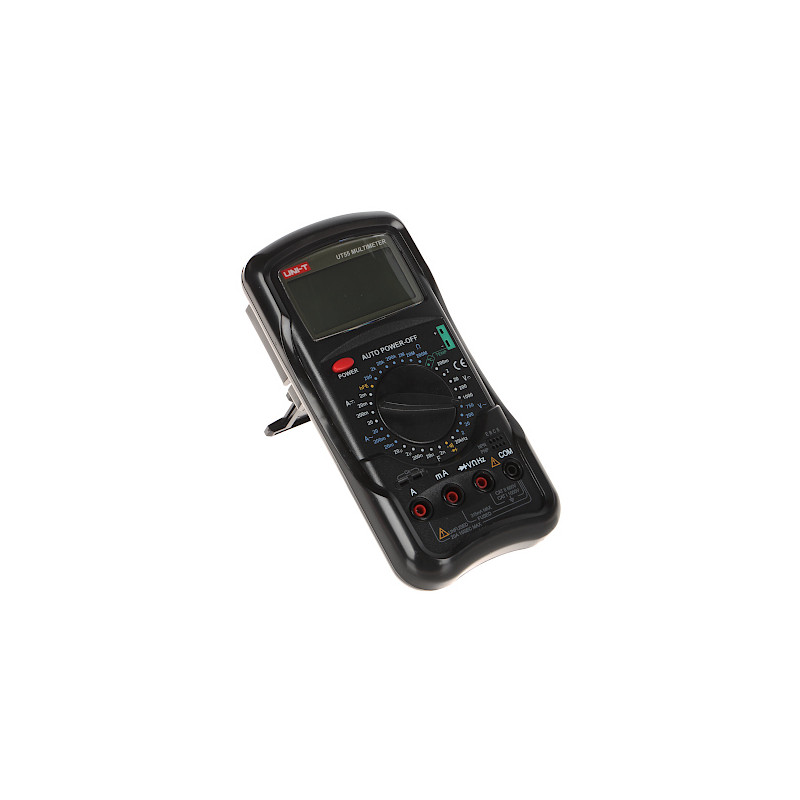

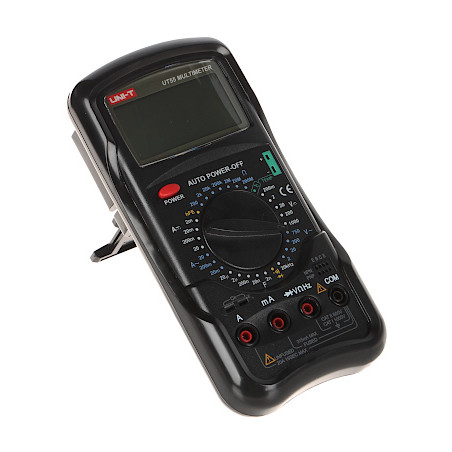

UT-55 digital multimeter for voltage current resistance capacitance and temperature measurement UNI-T UT-55
228,45 zł
Tax included
UT-55 is a professional, universal digital multimeter designed for a wide range of applications in electronics, service, and installation work. The device is characterized by high measurement precision and a robust design, making it a reliable tool for a technician's daily work. The meter allows for accurate measurement of direct current (DC) and alternating current (AC) voltage, current intensity, resistance, capacitor capacitance, and temperature, which is crucial for diagnosing electronic circuits and automation systems.
An additional advantage of the UT-55 model is the built-in transistor testing function (hFE), diode checking, and continuity signaling, which significantly speeds up the fault localization process. The device is equipped with a large, clear LCD display that ensures comfortable reading of results even in difficult lighting conditions. The solid housing with an adjustable stand allows for convenient placement of the meter on the workbench, ensuring an optimal viewing angle. The meter also features a low battery alarm function, which prevents erroneous readings resulting from a drop in supply voltage. Thanks to its aesthetic design and intuitive operation, the UT-55 is an excellent choice for both professionals and advanced hobbyists looking for a reliable multimeter at an affordable price.
UT-55 digital multimeter for voltage current resistance capacitance and temperature measurement
Model: UNI-T UT-55
EAN: 6931240010631 SKU: 931010638
- Large, easy-to-read LCD display
- DC/AC voltage, DC/AC current, resistance, capacitance, and temperature measurement
- hFE transistor testing
- Diode test and continuity buzzer
- Low battery indicator
- Adjustable stand for better viewing angle
- Solid and aesthetic design
Description
UT-55 is a professional, universal digital multimeter designed for a wide range of applications in electronics, service, and installation work. The device is characterized by high measurement precision and a robust design, making it a reliable tool for a technician's daily work. The meter allows for accurate measurement of direct current (DC) and alternating current (AC) voltage, current intensity, resistance, capacitor capacitance, and temperature, which is crucial for diagnosing electronic circuits and automation systems.
An additional advantage of the UT-55 model is the built-in transistor testing function (hFE), diode checking, and continuity signaling, which significantly speeds up the fault localization process. The device is equipped with a large, clear LCD display that ensures comfortable reading of results even in difficult lighting conditions. The solid housing with an adjustable stand allows for convenient placement of the meter on the workbench, ensuring an optimal viewing angle. The meter also features a low battery alarm function, which prevents erroneous readings resulting from a drop in supply voltage. Thanks to its aesthetic design and intuitive operation, the UT-55 is an excellent choice for both professionals and advanced hobbyists looking for a reliable multimeter at an affordable price.
Specification
DC voltage measurement
200mV ±(0.5%+1) @ 0.1mV, 2V ±(0.5%+1) @ 0.001V, 20V ±(0.5%+1) @ 0.01V, 200V ±(0.5%+1) @ 0.1V, 1000V ±(0.8%+2) @ 1V
AC voltage measurement
2V ±(0.8%+3) @ 0.001V, 20V ±(0.8%+3) @ 0.01V, 200V ±(0.8%+3) @ 0.1V, 750V ±(1.2%+3) @ 1V
DC current measurement
2mA ±(0.8%+1) @ 0.001mA, 20mA ±(0.8%+1) @ 0.01mA, 200mA ±(1.5%+1) @ 0.1mA, 20A ±(2.0%+5) @ 0.01A
AC current measurement
20mA ±(1.0%+3) @ 0.01mA, 200mA ±(1.8%+3) @ 0.1mA, 20A ±(3.0%+7) @ 0.01A
Resistance measurement
200Ω ±(0.8%+3) @ 0.1Ω, 2kΩ ±(0.8%+1) @ 0.001kΩ, 20kΩ ±(0.8%+1) @ 0.01kΩ, 200kΩ ±(0.8%+1) @ 0.1kΩ, 2MΩ ±(0.8%+1) @ 0.001MΩ, 20MΩ ±(1.0%+2) @ 0.01MΩ, 200MΩ ±(5%(RD-10)+10) @ 0.1MΩ
Capacitance measurement
2nF, 20nF, 200nF, 2µF, 20µF (accuracy ±4%+3)
Frequency measurement
20kHz ±(1.5%+5) @ 0.01kHz
Temperature measurement
-20°C ... 0°C ±(5%+3), >0°C ... 400°C ±(1%+3), >400°C ... 1000°C ±2%
Additional functions
hFE, Diode test, Continuity buzzer
Power supply
9V battery, type 6F22 (included)
Warranty
2 years
Contents
1x UT-55 meter
1x 9V battery
Test leads
Dimensions, Weight
Product dimensions: 56 x 203 x 98 mm (D x W x H)
Packaging dimensions: 70 x 245 x 180 mm (D x W x H)
Product weight: 510 g
Weight with packaging: 735 g
