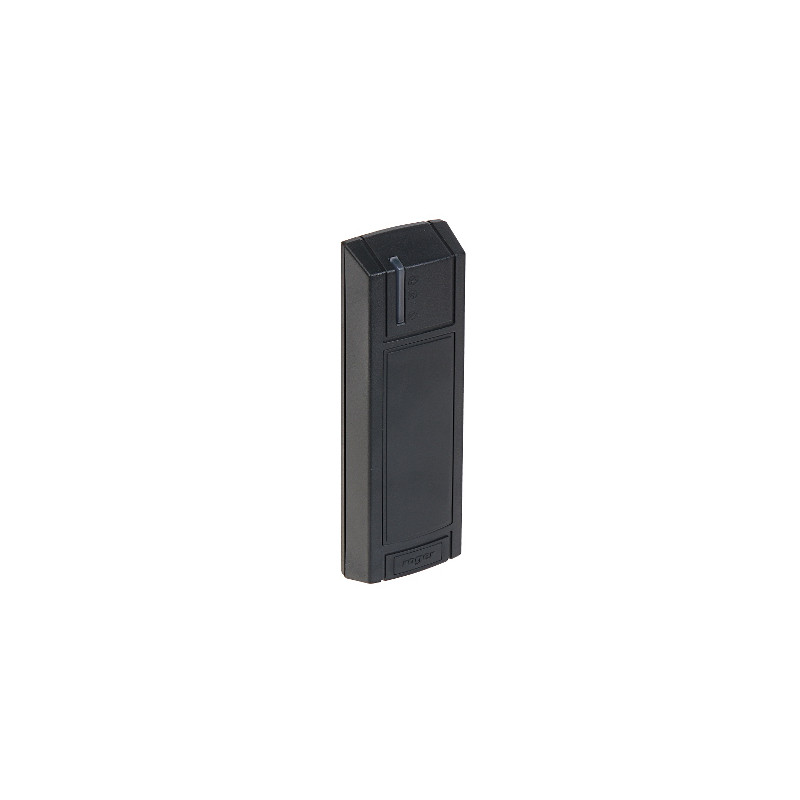

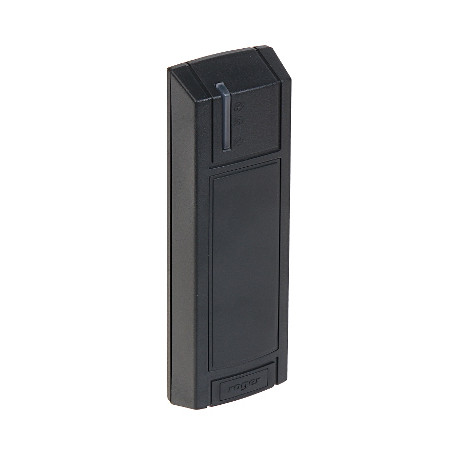

Unique 125 kHz proximity card and key fob reader for access control systems ROGER PRT12EM-BK
450,92 zł
Tax included
The PRT12EM-BK external proximity reader is a professional device designed for use in advanced Roger RACS access control systems. The reader supports the Unique 125 kHz card and key fob standard, ensuring reliable user identification in various environmental conditions. Thanks to its robust construction with an IP67 ingress protection rating, the device is fully resistant to dust ingress and water exposure, allowing for installation both indoors and outdoors.
The device is distinguished by its autonomous operation capability, meaning it can function as a standalone access control point without the need for a constant connection to a master controller. The reader is equipped with a relay output and two transistor inputs and outputs, enabling direct control of electric strikes or other actuators. An additional advantage is the built-in tamper protection, which detects attempts to detach the reader from the surface or unauthorized opening of the housing, increasing the security of the entire system.
The PRT12EM-BK reader also offers an EMC-4 card programmer function using the free RARC software, which significantly facilitates user database management. The device memory allows for storing a history of 1024 events and supporting up to 120 indexed users. LED signaling and a built-in buzzer provide intuitive feedback to the user regarding the card reading status. This is an ideal solution for offices, warehouses, and industrial facilities requiring high durability and reliability.
Unique 125 kHz proximity card and key fob reader for access control systems
Model: ROGER PRT12EM-BK
EAN: 6931240086902 SKU: 931086900
- Support for Unique 125 kHz standard
- IP67 ingress protection rating (weather resistance)
- Autonomous operation capability
- Built-in tamper protection
- Memory for 1024 events and 120 users
- Relay output 30V / 1.5A
- Optical (LED) and acoustic signaling
Description
The PRT12EM-BK external proximity reader is a professional device designed for use in advanced Roger RACS access control systems. The reader supports the Unique 125 kHz card and key fob standard, ensuring reliable user identification in various environmental conditions. Thanks to its robust construction with an IP67 ingress protection rating, the device is fully resistant to dust ingress and water exposure, allowing for installation both indoors and outdoors.
The device is distinguished by its autonomous operation capability, meaning it can function as a standalone access control point without the need for a constant connection to a master controller. The reader is equipped with a relay output and two transistor inputs and outputs, enabling direct control of electric strikes or other actuators. An additional advantage is the built-in tamper protection, which detects attempts to detach the reader from the surface or unauthorized opening of the housing, increasing the security of the entire system.
The PRT12EM-BK reader also offers an EMC-4 card programmer function using the free RARC software, which significantly facilitates user database management. The device memory allows for storing a history of 1024 events and supporting up to 120 indexed users. LED signaling and a built-in buzzer provide intuitive feedback to the user regarding the card reading status. This is an ideal solution for offices, warehouses, and industrial facilities requiring high durability and reliability.
Specification
Compatibility
RACS (Roger)
Card support
Unique EM 125kHz - RFID technology standard enabling data reading via 125 kHz radio waves. Does not require optical visibility of the card.
Card reading range
max. 15 cm
Built-in keypad
No
Autonomous operation
Yes
Doorbell button
No
Tamper output
Yes - detection of detachment from the surface and opening of the housing
Communication
RS-485 (two-wire transmission), RACS (Roger)
Selected features
Tamper protection, autonomous operation, EMC-4 card programmer function, 120 users, 1024 event history, 2x NO/NC input, 2x transistor output, 30V/1.5A relay output, LED and acoustic signaling.
Software
The device works with the free RARC (Roger Access Reader Configurator) software. This application enables comprehensive management of the reader, including configuration of operating parameters, firmware updates, and full support for the EMC-4 card programmer function. Thanks to RARC, the administrator can easily manage the database of 120 users, assign them permissions, and view the history of 1024 events stored in the device memory. The program interface is intuitive and allows for quick diagnostics of the reader status, setting relay output operating modes, and configuring communication in the RS-485 standard, which is crucial when integrating with larger RACS access control systems.
Power supply
12V DC
Average current consumption
45 mA
Operating temperature
-25 °C ... 60 °C
Ingress protection rating
IP67 - full protection against dust and resistance to immersion in water
Contents
1x PRT12EM-BK proximity reader
Mounting elements
Dimensions, Weight
Product dimensions: 23 x 152 x 46 mm (D x W x H)
Packaging dimensions: 50 x 230 x 105 mm (D x W x H)
Product weight: 140 g
Weight with packaging: 260 g
