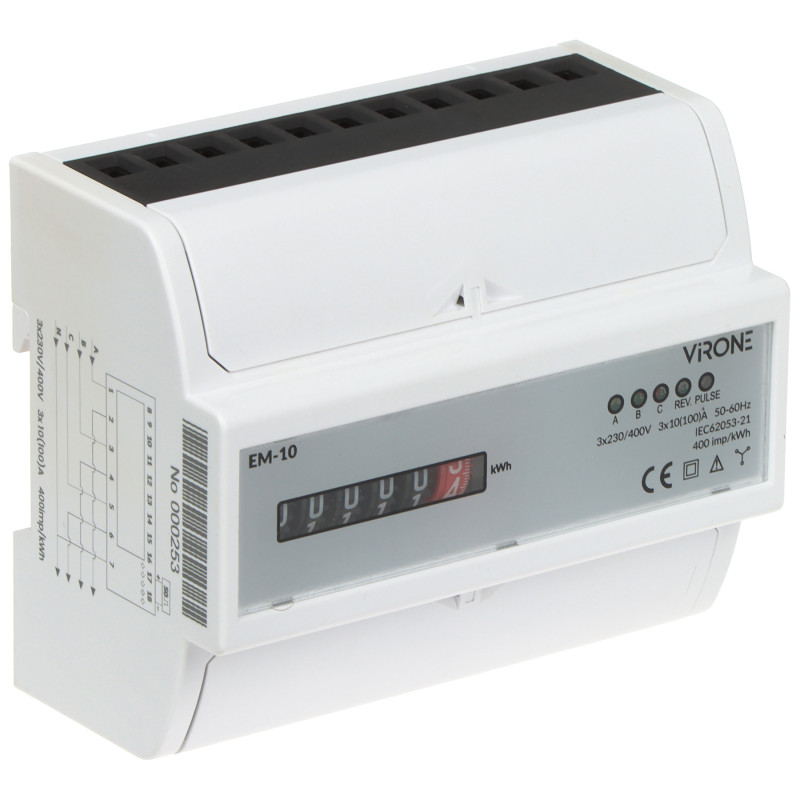

Three-Phase Analog Electricity Meter DIN Rail Power Consumption Indicator 3x230V/400V 100A kWh Virone EM-10
192,53 zł
Tax included
The EM-10 three-phase analog electricity consumption indicator is a professional and highly precise measuring device designed for effective monitoring and recording of active power consumption in three-phase circuits. The device is an ideal solution for both residential and industrial applications where reliability and ease of reading are required. The meter is adapted to work with a rated voltage of 3x230V (phase-to-phase voltage 400V) and a rated current of up to 3x100A, making it a versatile tool in modern electrical installations.
One of the key advantages of the EM-10 model is its analog drum mechanism, which allows for reading the energy consumption status even in the event of a complete power failure in the network – a feature that gives it a significant advantage over electronic meters with LCD displays. Power consumption in each phase is continuously signaled by the flashing of dedicated LEDs, allowing for quick diagnostics of the installation's operation. The number of generated pulses is precisely converted into consumed energy, and its cumulative value is presented in a 5+1 digit format (00000.0 kWh).
The device is equipped with a standard S0 electrical pulse output, generating 400 pulses per kilowatt-hour (400 imp/kWh). This allows for easy integration of the meter with external remote reading and energy monitoring systems. The device's design provides for quick and trouble-free mounting on a standard TS-35 DIN rail, making it compatible with most typical electrical distribution boards. The product is characterized by high-quality workmanship, low self-power consumption, and a wide operating temperature range, which guarantees longevity and stability of measurements in various environmental conditions. Energy measurement is performed in accordance with the rigorous international standard IEC 62052-11, which confirms its class and safety of use.
Three-Phase Analog Electricity Meter DIN Rail Power Consumption Indicator 3x230V/400V 100A kWh
Model: Virone EM-10
EAN: 6931240078778 SKU: 931078772
- Precise active energy measurement in three-phase systems
- Maximum load current up to 100A per phase
- Analog drum counter 5+1 (reading possible without power supply)
- S0 pulse output (400 imp/kWh) for monitoring systems
- LED power consumption signaling for each phase
- Mounting on standard DIN rail TS-35 (7 module width)
- Very low self-power consumption
- Compliance with international standards IEC 62052-11 and IEC 62053-21
- High resistance to external conditions (IP51 on the front panel)
- Solid screw terminals ensuring a durable electrical connection
Description
The EM-10 three-phase analog electricity consumption indicator is a professional and highly precise measuring device designed for effective monitoring and recording of active power consumption in three-phase circuits. The device is an ideal solution for both residential and industrial applications where reliability and ease of reading are required. The meter is adapted to work with a rated voltage of 3x230V (phase-to-phase voltage 400V) and a rated current of up to 3x100A, making it a versatile tool in modern electrical installations.
One of the key advantages of the EM-10 model is its analog drum mechanism, which allows for reading the energy consumption status even in the event of a complete power failure in the network – a feature that gives it a significant advantage over electronic meters with LCD displays. Power consumption in each phase is continuously signaled by the flashing of dedicated LEDs, allowing for quick diagnostics of the installation's operation. The number of generated pulses is precisely converted into consumed energy, and its cumulative value is presented in a 5+1 digit format (00000.0 kWh).
The device is equipped with a standard S0 electrical pulse output, generating 400 pulses per kilowatt-hour (400 imp/kWh). This allows for easy integration of the meter with external remote reading and energy monitoring systems. The device's design provides for quick and trouble-free mounting on a standard TS-35 DIN rail, making it compatible with most typical electrical distribution boards. The product is characterized by high-quality workmanship, low self-power consumption, and a wide operating temperature range, which guarantees longevity and stability of measurements in various environmental conditions. Energy measurement is performed in accordance with the rigorous international standard IEC 62052-11, which confirms its class and safety of use.
Specification
Device type
Electricity meter, Three-phase, Analog - designed for monitoring active power in AC networks.
Rated voltage
3 x 230 V / 400 V AC, 50 Hz - optimal for standard power installations.
Base and maximum current
3 x 20 A (base current) / 3 x 100 A (maximum current) - high current capacity.
Measurement unit
kWh (kilowatt-hour) - standard unit for electricity billing.
Display and reading
Mechanical drum counter 5+1 digits (range 00000.0 kWh) - guarantees durability of data recording.
Measurement accuracy
Class B (according to EN 50470-1/3 standard) - high metrological class precision.
Pulse frequency
400 imp/kWh - high signal resolution for automation systems.
Pulse output
Type S0 (standard open-collector transistor output) - enables remote pulse registration.
Operation signaling
Three LEDs (one for each phase) indicating the presence of voltage and consumption intensity.
Self-power consumption
Low power consumption: ≤ 2 W / 10 VA per phase - energy-efficient device operation.
Construction and housing
Made of high-quality plastic, resistant to mechanical damage.
Mounting and installation
Adapted for mounting on a TS-35 DIN rail (EN 60715) in electrical distribution boards.
Environmental conditions
Operating temperature: -25 °C ... 55 °C; Ingress protection: IP20 (overall) / IP51 (front panel).
Dimensions and modularity
Width: 123 mm (7 modules of 17.5 mm); Height: 100 mm; Depth: 65 mm.
Contents
1x EM-10 electricity meter
1x User manual in Polish
Dimensions, Weight
Product dimensions: 65 x 123 x 100 mm (D x W x H)
Packaging dimensions: 75 x 130 x 105 mm (D x W x H)
Product weight: 420 g
Weight with packaging: 467 g
