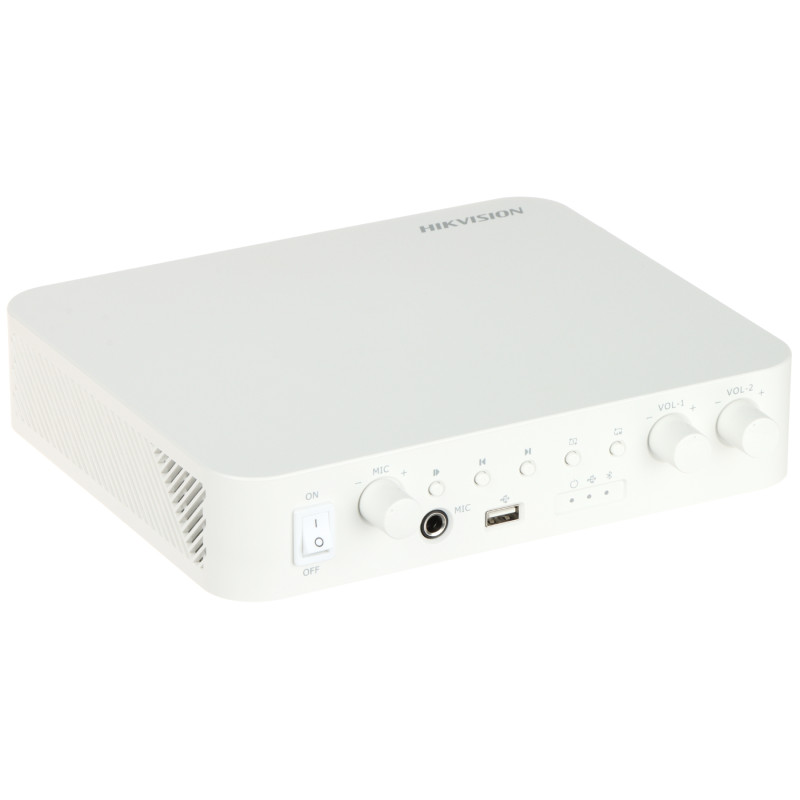

2-zone 60W mixing audio amplifier Bluetooth USB 100V 4-8 Ohm for PA systems Hikvision DS-QAE0A60G1-VB
984,00 zł
Tax included
The DS-QAE0A60G1-VB amplifier is an advanced mixing audio device that combines the functions of a power amplifier and a signal mixer. It is an ideal solution for small and medium-sized sound installations, such as offices, shops, cafes, or conference rooms. The device is characterized by high efficiency and a compact design, which allows for easy integration in various environments.
The main advantage of this model is the support for two sound zones, which allows for flexible sound management in different parts of the facility. The amplifier offers a rated power of 60W (divided into 2x30W), which ensures clear and crisp sound. Thanks to the built-in Bluetooth interface, the user can wirelessly stream music directly from a smartphone or tablet, which significantly increases user comfort.
Additionally, the device has a USB 2.0 port, which allows for playing multimedia files in MP3 and WAV formats directly from memory media. The front panel is equipped with a microphone input (6.5 mm Jack) and two RCA line inputs, which allows for the simultaneous connection of a microphone and external sound sources, such as CD players or computers.
The amplifier supports both low-impedance speaker systems (4-8 Ohm) and professional 100V high-voltage installations. A solid white plastic housing makes the device look aesthetic and modern. A series of built-in protections, including short-circuit, overload, and thermal, guarantees long and trouble-free system operation. This compact 'all-in-one' solution eliminates the need for multiple separate audio devices.
2-zone 60W mixing audio amplifier Bluetooth USB 100V 4-8 Ohm for PA systems
Model: Hikvision DS-QAE0A60G1-VB
EAN: 6931240013649 SKU: 931013646
- Mixing amplifier integrated with a signal mixer
- Support for two independent sound zones (2 x 30W)
- Built-in Bluetooth module for wireless audio streaming
- Integrated USB multimedia player (MP3, WAV)
- Support for 100V and low-impedance 4-8 Ohm speaker lines
- 6.5 mm Jack microphone input on the front panel
- Two RCA line inputs and two RCA line outputs
- Complete set of protections: short-circuit, overload, thermal
- Aesthetic white housing made of durable plastic
- Wide frequency response from 80 Hz to 20 kHz
Description
The DS-QAE0A60G1-VB amplifier is an advanced mixing audio device that combines the functions of a power amplifier and a signal mixer. It is an ideal solution for small and medium-sized sound installations, such as offices, shops, cafes, or conference rooms. The device is characterized by high efficiency and a compact design, which allows for easy integration in various environments.
The main advantage of this model is the support for two sound zones, which allows for flexible sound management in different parts of the facility. The amplifier offers a rated power of 60W (divided into 2x30W), which ensures clear and crisp sound. Thanks to the built-in Bluetooth interface, the user can wirelessly stream music directly from a smartphone or tablet, which significantly increases user comfort.
Additionally, the device has a USB 2.0 port, which allows for playing multimedia files in MP3 and WAV formats directly from memory media. The front panel is equipped with a microphone input (6.5 mm Jack) and two RCA line inputs, which allows for the simultaneous connection of a microphone and external sound sources, such as CD players or computers.
The amplifier supports both low-impedance speaker systems (4-8 Ohm) and professional 100V high-voltage installations. A solid white plastic housing makes the device look aesthetic and modern. A series of built-in protections, including short-circuit, overload, and thermal, guarantees long and trouble-free system operation. This compact 'all-in-one' solution eliminates the need for multiple separate audio devices.
Specification
Power and Performance
Rated power: 60 W (2 x 30 W configuration); High energy efficiency while maintaining low signal distortion.
Acoustic Parameters
Frequency response: 80 Hz ... 20 kHz; Signal-to-noise ratio (S/N): ≥ 100 dB; Ensures crystal clear sound for both speech and background music.
Audio Inputs
1x 6.5 mm Jack socket (external microphone); 2x CINCH (RCA) MONO (line inputs); 1x USB 2.0 (front panel); Bluetooth (wireless).
Audio Outputs
2x CINCH (RCA) (line outputs); 2x Low-impedance speaker output 4-8 Ω; 2x High-voltage speaker output - 100V line connector.
Wireless Communication
Bluetooth interface allowing pairing with mobile devices; Stable transmission range typical for office and home standards.
Multimedia Support
Playback from USB media: support for MP3 and WAV formats; Ability to quickly switch tracks and manage the library from the device level.
Adjustment and Control
Independent input level adjustment for: Microphone, RCA Input 1, RCA Input 2; Allows for precise mixing of multiple sound sources.
Compression Formats
Supported audio formats: 64 kbit/s G.711, 128 kbit/s MP3; Ensures compatibility with most standard sound files.
System Protections
Short-circuit; Overload; Thermal; Built-in electrostatic discharge (ESD) protection; Surge protection; Electric shock protection.
Signaling and Interface
LEDs indicating device status: Power, USB (media activity), Bluetooth (wireless connection status).
Construction and Housing
Material: High-resistance plastic; Color: White; Compact dimensions allowing for installation in limited space.
Operating Conditions
Operating temperature: -10 °C ... 55 °C; Device adapted for continuous indoor operation.
Power Supply and Energy
Power supply: 24 V DC / 2.5 A; Dedicated power adapter is included with the device.
Software and Functions
Firmware manages digital sound processing and input interface handling. The system enables intelligent mixing of signals from various sources, including microphone input prioritization. The built-in multimedia player supports the FAT32 file system for USB media, ensuring quick access to MP3 and WAV tracks. The Bluetooth module supports modern transmission protocols, which minimizes latency and sound quality loss. The software also controls advanced protection algorithms, monitoring the temperature of power stages and current parameters in real-time, which protects connected speakers from damage.
Contents
1x Audio amplifier
1x 24V DC / 2.5A power adapter
1x User manual
Dimensions, Weight
Product dimensions: 191 x 231 x 52 mm (D x W x H)
Packaging dimensions: 285 x 370 x 100 mm (D x W x H)
Product weight: 1510 g
Weight with packaging: 2464 g
