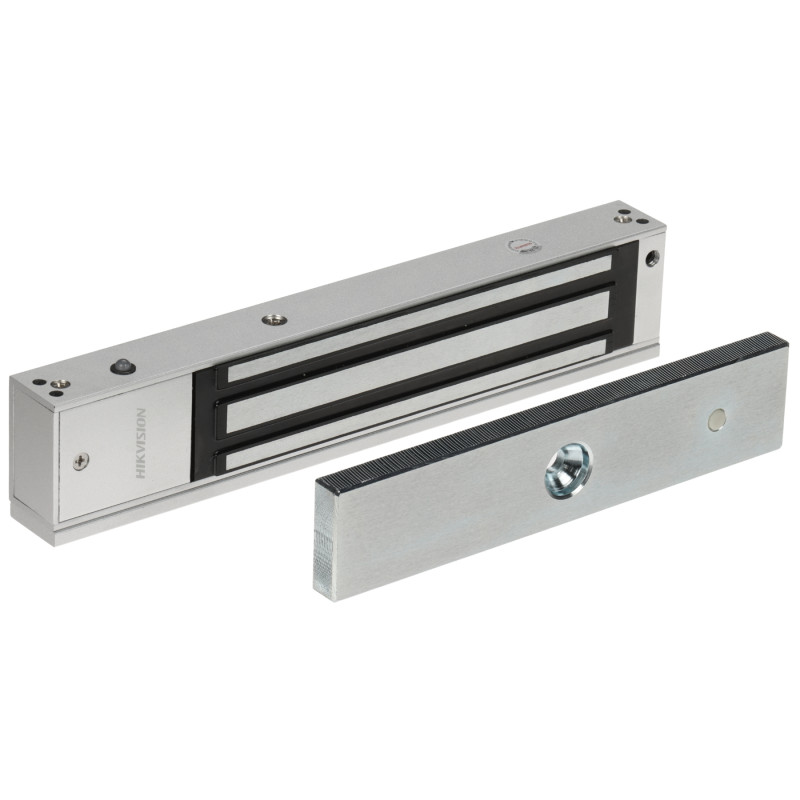

Electromagnetic door lock 272kg LED 12V 24V DC surface mount access control Hikvision DS-K4H250S
667,89 zł
Tax included
This professional electromagnetic lock is a reliable component of access control systems, designed to ensure maximum security in commercial and private facilities. The device features a powerful holding force of up to 272 kg, effectively securing passages against unauthorized access. Thanks to its universal design, the product works perfectly with doors made of wood, glass, and metal, offering installation versatility in various architectural conditions.
A key advantage of this model is the integrated LED signaling, which clearly informs the user about the current lock status. The ability to be powered by 12V DC or 24V DC makes the lock compatible with most standard power supplies and controllers available on the market. A solid housing made of high-quality materials guarantees resistance to mechanical damage and longevity, eliminating problems typical of traditional mechanical electric strikes, such as the wear of moving parts.
The use of an electromagnetic lock significantly raises fire safety standards – in the event of a power failure (e.g., during a fire alarm), the door is automatically unlocked, allowing for safe evacuation. This is an ideal solution for offices, warehouses, schools, and medical facilities where both the reliability of the closure and the speed of system response in emergency situations are critical. By choosing this model, you are investing in proven technology from a global leader in security.
Electromagnetic door lock 272kg LED 12V 24V DC surface mount access control
Model: Hikvision DS-K4H250S
EAN: 6931240024003 SKU: 931024008
- High holding force: up to 272 kg (600 lbs)
- Universal power supply: supports 12V DC and 24V DC
- Built-in LED indicator for status monitoring
- Designed for wooden, glass, metal, and fire-rated doors
- No mechanical parts subject to wear
- Residual magnetism protection
- Robust construction resistant to forced entry attempts
- Easy integration with access control and alarm systems
Description
This professional electromagnetic lock is a reliable component of access control systems, designed to ensure maximum security in commercial and private facilities. The device features a powerful holding force of up to 272 kg, effectively securing passages against unauthorized access. Thanks to its universal design, the product works perfectly with doors made of wood, glass, and metal, offering installation versatility in various architectural conditions.
A key advantage of this model is the integrated LED signaling, which clearly informs the user about the current lock status. The ability to be powered by 12V DC or 24V DC makes the lock compatible with most standard power supplies and controllers available on the market. A solid housing made of high-quality materials guarantees resistance to mechanical damage and longevity, eliminating problems typical of traditional mechanical electric strikes, such as the wear of moving parts.
The use of an electromagnetic lock significantly raises fire safety standards – in the event of a power failure (e.g., during a fire alarm), the door is automatically unlocked, allowing for safe evacuation. This is an ideal solution for offices, warehouses, schools, and medical facilities where both the reliability of the closure and the speed of system response in emergency situations are critical. By choosing this model, you are investing in proven technology from a global leader in security.
Specification
Load capacity / Holding force
272 kg (approx. 600 lbs)
Rated voltage
12 V DC / 24 V DC (selectable via jumper)
Current consumption
500 mA at 12V / 250 mA at 24V
Signaling
Built-in LED indicating open/closed status
Application
Wooden, glass, metal, fire-rated doors
Operating temperature
-10 °C ... 55 °C (14°F to 131°F)
Ambient humidity
0 % ... 95 % (non-condensing)
Material
High-quality steel with anti-corrosion coating (anodized aluminum)
Lock dimensions
240 x 49 x 25.5 mm
Armature plate dimensions
180 x 38 x 11 mm
Total weight
2.10 kg
SAP code
302900530
Warranty
24 months (2 years)
Manufacturer
Hikvision
Software and Integration
The device is fully compatible with the Hikvision ecosystem, including DS-K2600 series controllers and iVMS-4200 management software. This software enables advanced configuration of access schedules, real-time lock status monitoring, and event report generation. Through integration with the Hik-Connect mobile app (via a suitable controller), the user can remotely release the door lock and receive notifications about unauthorized access attempts. The system also supports logic functions, such as linking door opening with CCTV camera recording, which significantly expands the analytical and evidentiary capabilities of the entire security system.
Contents
1x Electromagnetic lock
1x Armature plate (strike plate)
1x Mounting screw kit
1x Mounting template
1x User manual
Dimensions, Weight
Product dimensions: 26 x 240 x 49 mm (D x W x H)
Package dimensions: 60 x 270 x 65 mm (D x W x H)
Product weight: 2100 g
Weight with packaging: 2300 g
