- New
UPS Uninterruptible Power Supply Pure Sine Wave AVR 500W 800VA 12V 230V for Central Heating Furnace Computer Server VOLT Polska
521,21 zł
Tax included
The SINUS-PRO-800W-12/230V uninterruptible power supply is an advanced device from VOLT Polska, designed to ensure the continuity of operation for critical electronic equipment in your home or office. It is an all-in-one solution combining the functions of a pure sine wave DC/AC inverter, a UPS emergency switch, and an automatic mains battery charger. Thanks to the use of an AVR mains voltage stabilizer, connected devices are protected against sudden voltage spikes, which is crucial for sensitive electronics such as computers, servers, or modern televisions.
The main advantage of this model is the generation of a sinusoidal output voltage, identical to that of the power grid. This allows for the safe powering of inductive devices, including central heating pumps, refrigerators, or air conditioners, which do not operate correctly with cheap inverters generating a so-called modified sine wave. In the event of a mains power failure, the device switches instantly (in less than 4ms) to 12V battery operation, preventing computer restarts and the loss of unsaved data.

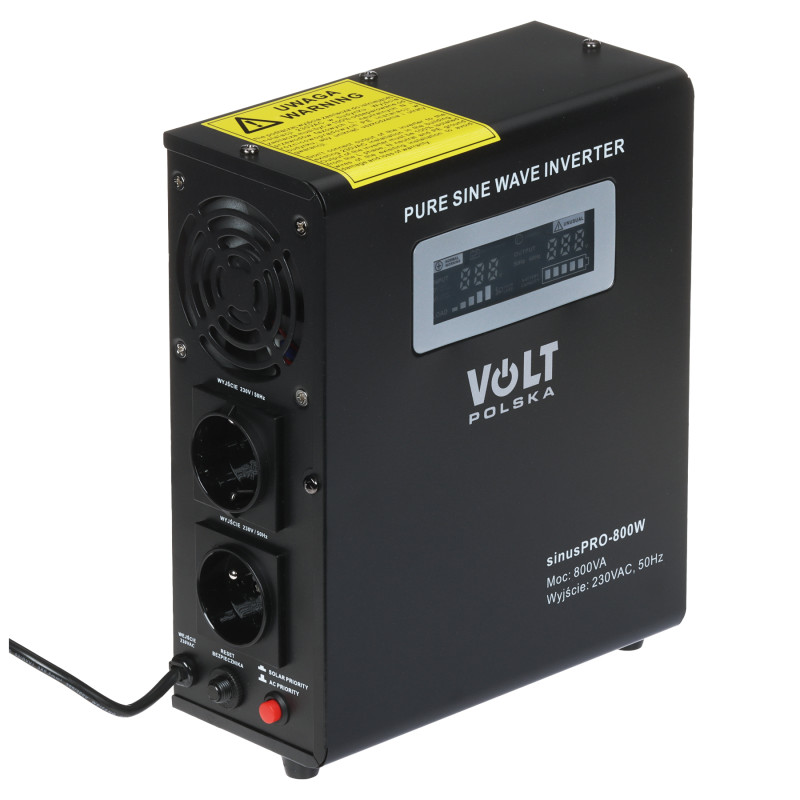

The power supply is equipped with a clear colour LED display that provides the user with real-time information on the most important operating parameters: input and output voltage, battery charge level, and current load. The robust housing, adapted for wall mounting, allows for aesthetic installation in boiler rooms or server rooms. The device features a range of protections, including overload, thermal, and deep battery discharge protection, ensuring long and trouble-free operation. Please note that this model is optimized for use with 12V Gel or AGM batteries, making it the ideal heart of an emergency power system.
UPS Uninterruptible Power Supply Pure Sine Wave AVR 500W 800VA 12V 230V for Central Heating Furnace Computer Server
Model: VOLT Polska SINUS-PRO-800W-12/230V
EAN: 6931240051689 SKU: 931051682
- Pure sine wave output voltage
- Built-in automatic voltage regulator (AVR)
- Fast UPS mode switching function (under 4ms)
- Intelligent VRLA battery charger (AGM / Gel)
- Clear, colour LED display indicating operating status
- Robust housing with wall-mounting capability
- Comprehensive protection system (overload, thermal, voltage)
- Automatic restart after mains power restoration
Description
The SINUS-PRO-800W-12/230V uninterruptible power supply is an advanced device from VOLT Polska, designed to ensure the continuity of operation for critical electronic equipment in your home or office. It is an all-in-one solution combining the functions of a pure sine wave DC/AC inverter, a UPS emergency switch, and an automatic mains battery charger. Thanks to the use of an AVR mains voltage stabilizer, connected devices are protected against sudden voltage spikes, which is crucial for sensitive electronics such as computers, servers, or modern televisions.
The main advantage of this model is the generation of a sinusoidal output voltage, identical to that of the power grid. This allows for the safe powering of inductive devices, including central heating pumps, refrigerators, or air conditioners, which do not operate correctly with cheap inverters generating a so-called modified sine wave. In the event of a mains power failure, the device switches instantly (in less than 4ms) to 12V battery operation, preventing computer restarts and the loss of unsaved data.
The power supply is equipped with a clear colour LED display that provides the user with real-time information on the most important operating parameters: input and output voltage, battery charge level, and current load. The robust housing, adapted for wall mounting, allows for aesthetic installation in boiler rooms or server rooms. The device features a range of protections, including overload, thermal, and deep battery discharge protection, ensuring long and trouble-free operation. Please note that this model is optimized for use with 12V Gel or AGM batteries, making it the ideal heart of an emergency power system.
Specification
Output voltage waveform
Pure sine wave - mains power mode and battery operation. Ensures full compatibility with inductive devices and sensitive electronics.
Active power (W)
500 W - maximum continuous power the device can supply to loads.
Apparent power (VA)
800 VA - total rated power of the device.
AC input voltage
170 V ... 270 V AC - wide input voltage tolerance range before switching to battery.
Input frequency
45 Hz ... 65 Hz (automatic detection and adjustment to grid parameters).
AC output voltage
230 V AC ± 8% in mains mode (via AVR) and 230 V AC ± 1% in battery mode (quartz stabilization).
Output frequency
50 Hz ± 0.5 Hz - stable frequency ensuring correct operation of clocks and motors.
Switching time
≤ 4 ms - reaction time to voltage loss, ensuring continuity for computers and servers.
Battery support
Compatible only with 12V VRLA (AGM / GEL) batteries. Do not use LiFePO4 or automotive batteries.
Output connectors
2 mains sockets: 1 x CEE 7/5 (with grounding pin), 1 x CEE 7/3 (Schuko).
Protection systems
Fuse, overload, thermal, overvoltage, undervoltage, deep battery discharge, short-circuit, and overcharge protection.
User interface
Colour LED display showing: operating mode, faults, overload, load level, battery charge level, input and output voltage.
Additional features
Automatic Voltage Regulator (AVR), automatic restart after power return, AC (mains) and SOLAR (battery) operating modes, built-in mains charger.
Application
CCTV monitoring systems, PCs, servers, workstations, consumer electronics, home appliances, CO pumps, furnace controllers.
Software and control logic
A built-in microcontroller manages advanced power process control logic. The system monitors grid parameters in real-time, deciding whether to activate the AVR module for voltage stabilization or to switch to inverter mode during a total power failure. The battery charging algorithm is multi-stage, extending the life of VRLA cells by precisely controlling charging current and voltage. Internal software also monitors thermal safety, controlling fan operation and cutting off power in critical situations, which is indicated by appropriate codes on the LED panel.
Contents
1x UPS Uninterruptible Power Supply
1x User manual
Dimensions, Weight
Product dimensions: 95 x 263 x 225 mm (D x W x H)
Packaging dimensions: 140 x 310 x 280 mm (D x W x H)
Product weight: 4700 g
Weight with packaging: 5030 g
