- New
Uninterruptible Power Supply UPS 500VA 350W pure sine wave AVR for central heating furnace computer server off-grid stabilizer V
468,94 zł
Tax included
An uninterruptible power supply (UPS) is an advanced device providing continuous power for critical electronic systems, such as computers, servers, computer sets, as well as consumer electronics and home appliances. This model is designed for off-grid operation, making it an ideal solution for directly supplying power to receivers in locations where grid stability is limited. The main advantage of the device is the generation of pure sine wave voltage, which guarantees safe operation for even the most sensitive equipment, including central heating pumps, furnace controllers, or induction motors.
In the event of a 230V AC grid power failure, the system instantly switches to battery operation mode. This allows connected devices to continue working without any interruptions, protecting the user from losing valuable data or damaging expensive equipment. Another significant advantage is the integrated AVR voltage stabilizer. Its task is to correct input voltage fluctuations so that the output voltage always complies with energy standards. This is crucial for protecting electronics against surges and voltage drops, which are common causes of failures in modern televisions and controllers.
The design based on an efficient toroidal transformer allows for flexible response to overloads, which is extremely important when starting devices with high power consumption, such as compressors or pumps. This transformer also compensates for the varying reactive power of receivers, enabling the connection of capacitive, inductive, and resistive loads. The solid Tower-type housing and clear LED display, providing information on operating parameters, make the device intuitive and comfortable to use. By choosing this solution, you gain certainty and safety for your home or business energy infrastructure.

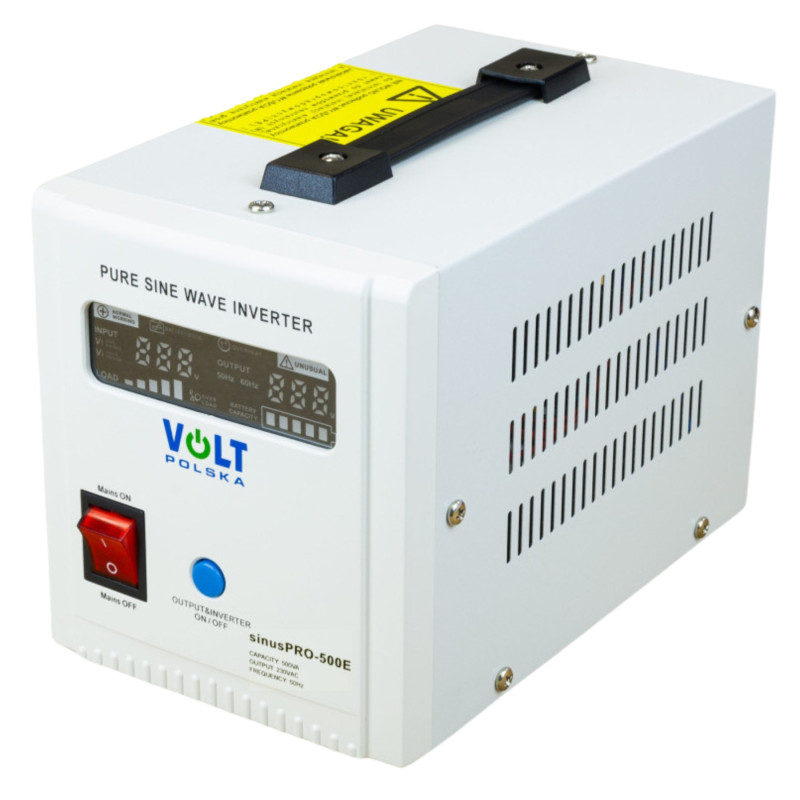

Uninterruptible Power Supply UPS 500VA 350W pure sine wave AVR for central heating furnace computer server off-grid stabilizer
Model: VOLT Polska SINUS-PRO-500E
EAN: 6931240056547 SKU: 931056543
- Pure sine wave output voltage
- Built-in automatic voltage regulator AVR
- Fast switching time to battery power under 4ms
- Efficient toroidal transformer resistant to overloads
- Selectable battery charging current 5A or 10A
- Clear LED display with operating parameters
- High energy efficiency above 92%
- Comprehensive electronic protection system
- Solid metal Tower-type housing
- Adapted for operation with central heating pumps and furnace controllers
Description
An uninterruptible power supply (UPS) is an advanced device providing continuous power for critical electronic systems, such as computers, servers, computer sets, as well as consumer electronics and home appliances. This model is designed for off-grid operation, making it an ideal solution for directly supplying power to receivers in locations where grid stability is limited. The main advantage of the device is the generation of pure sine wave voltage, which guarantees safe operation for even the most sensitive equipment, including central heating pumps, furnace controllers, or induction motors.
In the event of a 230V AC grid power failure, the system instantly switches to battery operation mode. This allows connected devices to continue working without any interruptions, protecting the user from losing valuable data or damaging expensive equipment. Another significant advantage is the integrated AVR voltage stabilizer. Its task is to correct input voltage fluctuations so that the output voltage always complies with energy standards. This is crucial for protecting electronics against surges and voltage drops, which are common causes of failures in modern televisions and controllers.
The design based on an efficient toroidal transformer allows for flexible response to overloads, which is extremely important when starting devices with high power consumption, such as compressors or pumps. This transformer also compensates for the varying reactive power of receivers, enabling the connection of capacitive, inductive, and resistive loads. The solid Tower-type housing and clear LED display, providing information on operating parameters, make the device intuitive and comfortable to use. By choosing this solution, you gain certainty and safety for your home or business energy infrastructure.
Specification
Output voltage waveform
Pure sine wave - mains power mode and battery operation. Ensures safe power supply for inductive and capacitive devices.
UPS type
Line-interactive, characterized by fast switching to battery mode.
Active power
350 W (real power available for receivers).
Apparent power
500 VA (total device power).
Input voltage
Wide range from 170 V to 270 V AC, allowing operation in unstable power grids.
Input frequency
45 Hz ... 65 Hz (automatic adjustment).
Output voltage
In mains mode 216 V ... 245 V AC thanks to the AVR stabilizer; in battery mode precise 230 V AC ± 1%.
Output frequency
Stable 50 Hz ± 0.5 Hz.
Switching time
Very short reaction time ≤ 4 ms, protecting against device restarts.
Battery
Cooperation with an external 12 V battery (not included). It is recommended to use AGM or gel batteries adapted for buffer operation.
Number of outputs
2 power sockets - 1 x CEE 7/5 (French type with grounding pin) and 1 x CEE 7/3 (Schuko type).
Protections
Comprehensive protection system including a fuse, overload protection (disconnection at excessive power consumption), temperature protection (overheating protection), overvoltage and undervoltage protection (protection against voltage spikes), protection against excessive battery discharge (cell protection), short-circuit protection, and overcharge protection.
Operating status signaling
Clear, color LED display showing the current operating mode (mains/battery), load level, battery charge level, input and output voltage, and any error or failure codes.
Selected features
Advanced microprocessor-based parameter control system, built-in automatic voltage regulator (AVR), intelligent battery charger with the option to select 5A or 10A charging current via a switch, high energy efficiency above 92%, solid metal Tower-type housing, toroidal transformer with high overload resistance.
Application
Ideal for maintaining the operation of CCTV video monitoring systems, PCs, NAS servers, network devices, consumer electronics, modern home appliances, and above all, central heating (CO) pumps and gas/solid fuel furnace controllers.
Operating temperature
Optimal conditions from 0 °C to 40 °C.
Contents
1x UPS uninterruptible power supply
1x User manual in Polish and English
Dimensions, Weight
Product dimensions: 227 x 139 x 175 mm (D x W x H)
Packaging dimensions: 285 x 175 x 200 mm (D x W x H)
Product weight: 3700 g
Weight with packaging: 3954 g
