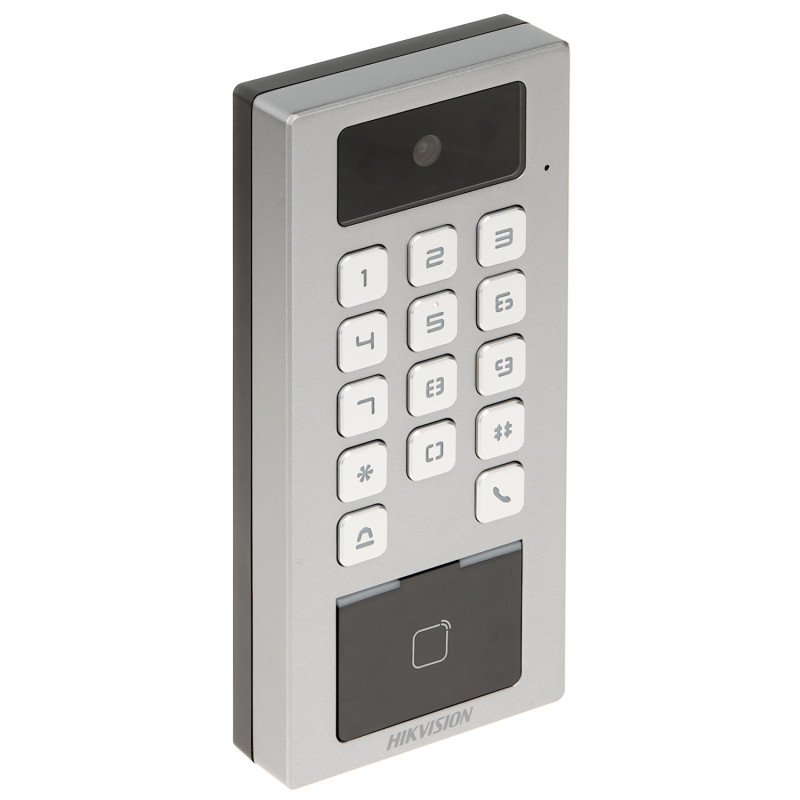

IP WiFi Bluetooth Access Controller RFID 13.56MHz Reader Keyboard 2Mpx Camera SIP 2.0 IK09 IP65 Intercom Hikvision DS-K1T502DBWX
2.414,49 zł
Tax included
The Hikvision DS-K1T502DBWX-C access controller is an advanced multifunctional device that combines the features of an access control terminal, a proximity reader, and an IP camera. Due to its versatility, the device can operate both in standalone mode and within an extensive network system, making it an ideal solution for offices, industrial facilities, and residential buildings.
The main advantage of the model is the built-in 2 Mpx camera with a wide viewing angle of 110 degrees. This allows not only for the identification of people entering but also for capturing photos during login and streaming live video to management systems. Support for the SIP 2.0 protocol enables two-way audio communication, which, combined with the doorbell button, allows the controller to function as a simple video intercom.
The device supports multiple authorization methods: from traditional 13.56 MHz S50 proximity cards, through PIN codes entered on the backlit keyboard, to modern Bluetooth communication. Additionally, the built-in Wi-Fi module and LAN RJ-45 interface ensure a stable network connection and easy configuration.
The robust housing made of a combination of metal and plastic is characterized by a high IP65 ingress protection rating and IK09 mechanical resistance. This means the controller is fully adapted for outdoor use, even in harsh weather conditions and temperatures from -40°C to 70°C.
Product advantages:
- Multifunctionality: access control, camera, and intercom in one device.
- High level of security due to IK09 resistance class and tamper output.
- Installation flexibility thanks to Wi-Fi and Bluetooth technology support.
- Intuitive management via the free Hik-Connect mobile application.
- Large memory capacity allowing for up to 100,000 users.
- Aesthetic, modern silver design suitable for any facade.
IP WiFi Bluetooth Access Controller RFID 13.56MHz Reader Keyboard 2Mpx Camera SIP 2.0 IK09 IP65 Intercom
Model: Hikvision DS-K1T502DBWX-C
EAN: 6931240026410 SKU: 931026415
- Standalone or network operation
- Built-in 2 Mpx camera with 110° viewing angle
- RFID 13.56 MHz S50 proximity reader
- Built-in backlit keyboard and doorbell button
- Wi-Fi, Bluetooth, LAN, RS-485 communication
- Two-way audio support (SIP 2.0 protocol)
- High IP65 ingress protection and IK09 mechanical resistance
- Micro SD card slot for event logging
- Management via Hik-Connect application
- Capacity for up to 100,000 users
Description
The Hikvision DS-K1T502DBWX-C access controller is an advanced multifunctional device that combines the features of an access control terminal, a proximity reader, and an IP camera. Due to its versatility, the device can operate both in standalone mode and within an extensive network system, making it an ideal solution for offices, industrial facilities, and residential buildings.
The main advantage of the model is the built-in 2 Mpx camera with a wide viewing angle of 110 degrees. This allows not only for the identification of people entering but also for capturing photos during login and streaming live video to management systems. Support for the SIP 2.0 protocol enables two-way audio communication, which, combined with the doorbell button, allows the controller to function as a simple video intercom.
The device supports multiple authorization methods: from traditional 13.56 MHz S50 proximity cards, through PIN codes entered on the backlit keyboard, to modern Bluetooth communication. Additionally, the built-in Wi-Fi module and LAN RJ-45 interface ensure a stable network connection and easy configuration.
The robust housing made of a combination of metal and plastic is characterized by a high IP65 ingress protection rating and IK09 mechanical resistance. This means the controller is fully adapted for outdoor use, even in harsh weather conditions and temperatures from -40°C to 70°C.
Product advantages:
- Multifunctionality: access control, camera, and intercom in one device.
- High level of security due to IK09 resistance class and tamper output.
- Installation flexibility thanks to Wi-Fi and Bluetooth technology support.
- Intuitive management via the free Hik-Connect mobile application.
- Large memory capacity allowing for up to 100,000 users.
- Aesthetic, modern silver design suitable for any facade.
Specification
Card support
13.56 MHz S50, reading range up to 3 cm
Identification methods
Proximity card, PIN code, Bluetooth, mobile application
Camera
Built-in 2 Mpx, 1920x1080 resolution, 110° viewing angle (horizontal)
Audio
Built-in microphone and speaker, two-way communication support, SIP 2.0 protocol
Memory and users
Support for up to 100,000 indexed users, micro SD card slot for event and photo logging
Communication interfaces
LAN 10/100 Base-T (RJ-45), Wi-Fi (2.4G), RS-485, Wiegand (data output)
Inputs and outputs
2 input lines (e.g., door sensor, exit button), 1 output line (NO/NC relay)
Additional functions
Doorbell button, built-in buzzer, LED status indication, white keyboard backlight
Security
Tamper output detecting housing opening or detachment from the wall
Software and application
The device works with the Hikvision ecosystem. The Hik-Connect mobile application allows for remote access control, receiving audio-video calls, viewing logs, and receiving real-time event notifications. The iVMS-4200 software allows for full management of user permissions, access schedules, and configuration of advanced network and hardware parameters from a PC. The interface is intuitive and allows for quick addition of new cards or access codes, as well as live camera view.
Operating conditions
Temperature from -40 °C to 70 °C, humidity up to 95% (non-condensing)
Protection class
IP65 (dust-tight and water jet resistant), IK09 (high mechanical impact resistance)
Power supply and power consumption
Voltage 12 V ... 24 V DC, maximum power consumption 1 A
Construction
Metal-plastic housing, silver color, surface mounting
Contents
1x Access controller
1x Mounting kit
1x User manual
Dimensions, Weight
Product dimensions: 24 x 81 x 177 mm (D x W x H)
Packaging dimensions: 73 x 140 x 305 mm (D x W x H)
Product weight: 650 g
Weight with packaging: 1150 g
