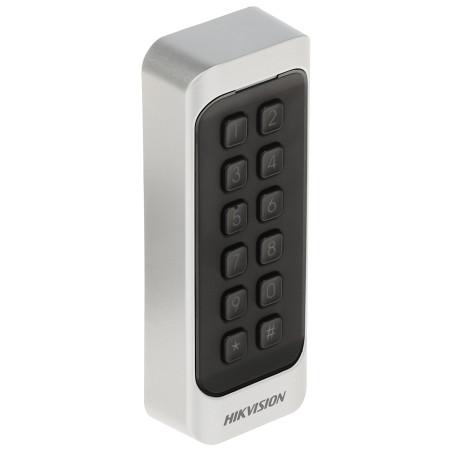

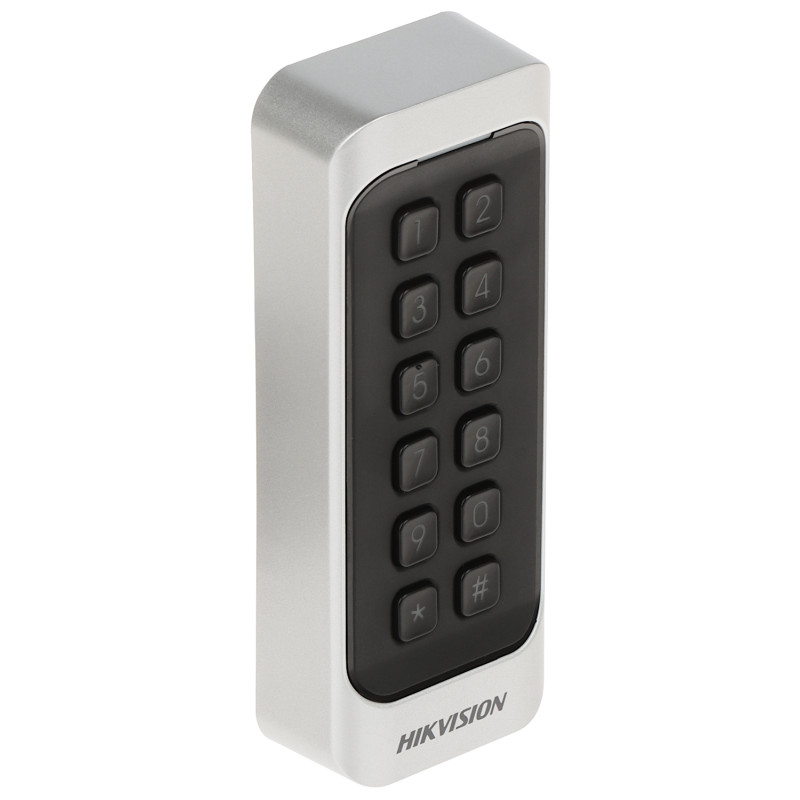

Mifare 13.56MHz RFID Proximity Reader with Keypad IP65 RS-485 Wiegand OSDP Outdoor Access Control

Model: Hikvision DS-K1107AMK

EAN: 6931240028506 SKU: 931028506

• Support for Mifare 13.56 MHz S50 standard cards and key fobs
• Built-in mechanical numeric keypad for PIN code entry
• Support for RS-485, Wiegand 26/34, and OSDP communication protocols
• High IP65 ingress protection rating for outdoor installation
• Integrated tamper output to protect against interference
• Built-in Watchdog module ensuring continuous device operation
• Optical LED and acoustic (buzzer) signaling
• Device address switch (DIP-switch) for easy configuration
• Wide operating temperature range from -20°C to +65°C
• Modern housing made of durable ABS plastic

Description

A professional proximity reader designed for access control systems, combining modern design with high functionality. The device is characterized by exceptional durability and reliability, which is standard for Hikvision products. The reader supports cards and key fobs operating in the Mifare (13.56 MHz S50) standard, ensuring fast and secure user identification.

Product advantages:

- High weather resistance: Thanks to the IP65 ingress protection rating, the device can be mounted outdoors without worrying about the effects of rain or dust.

- Dual verification: The built-in numeric keypad allows for two-factor authentication (card + PIN code), which significantly increases the security level of the protected zone.

- Versatile communication: Support for RS-485, Wiegand (34/26) protocols, and the modern, encrypted OSDP (Open Supervised Device Protocol) standard allows for easy integration with various access controllers.

- Advanced security: A built-in tamper output immediately informs the system of any attempt at unauthorized disassembly or opening of the housing.

- Stability and self-diagnosis: The Watchdog function constantly monitors the device's operation, automatically restoring its functionality in the event of system errors.

- Aesthetics and ergonomics: The compact, silver-black housing made of durable plastic blends perfectly with modern architecture.

The device is ideal for office buildings, industrial facilities, medical facilities, and private properties. Thanks to a reading range of up to 5 cm, daily use of the system is smooth and comfortable. Clear LED signaling and a built-in buzzer provide the user with immediate feedback on the authorization status.

Specification

Standards and card support

Support for proximity cards and key fobs in the Mifare S50 standard at a frequency of 13.56 MHz. This ensures a high level of security and compatibility with a wide range of transponders.

Reading parameters

The maximum reading range is up to 50 mm (5 cm), allowing for comfortable use without the need for direct contact between the card and the reader.

Communication interfaces

The device supports multiple transmission standards: RS-485, Wiegand 34, and Wiegand 26. Additionally, it supports the modern OSDP (Open Supervised Device Protocol).

Keypad functions

The built-in mechanical numeric keypad (12 buttons) allows for authorization via PIN code, which significantly increases the facility's security level.

Security and protection

Equipped with a tamper output that reacts to the opening of the housing or the detachment of the device from the wall. It also has a built-in Watchdog module for monitoring operational stability.

Signaling and notifications

The reader features optical signaling of operating states via LED diodes and acoustic signaling via a built-in buzzer.

Power parameters

The required power supply voltage is 12V DC (direct current). The maximum power consumption of the device is 170 mA, making it an energy-efficient component of the system.

Environmental conditions

Wide operating temperature range from -20 °C to 65 °C and permissible ambient humidity from 10% to 90% (non-condensing).

Ingress protection class

The IP65 protection rating guarantees full dust-tightness and resistance to water jets, enabling trouble-free operation in outdoor conditions.

Construction and housing

Housing made of high-quality plastic in an elegant silver and black color scheme.

Dimensions and installation

Compact dimensions of 115 x 44 x 22 mm allow for installation even in narrow spaces, e.g., on door frames.

Configuration

The device has a built-in address switch (DIP-switch), which facilitates the addressing of readers on the RS-485 bus.

Software and system

The device works with advanced Hikvision security system management software, such as iVMS-4200 and HikCentral. This software enables full configuration of reader parameters, user database management, permission assignment, and real-time event monitoring. Thanks to support for the OSDP (Open Supervised Device Protocol), communication between the reader and the controller is fully encrypted and monitored, preventing eavesdropping or data manipulation attempts. The system allows for remote diagnostics and firmware updates.

Warranty and codes

The product is covered by a 3-year manufacturer's warranty. SAP code: 302918666. Manufacturer model: DS-K1107AMK.

Contents

1x Proximity reader

1x Set of mounting screws

1x User manual

Dimensions, Weight

Product dimensions: 22 x 44 x 115 mm (D x W x H)

Packaging dimensions: 145 x 100 x 55 mm (D x W x H)

Product weight: 150 g

Weight with packaging: 223 g
