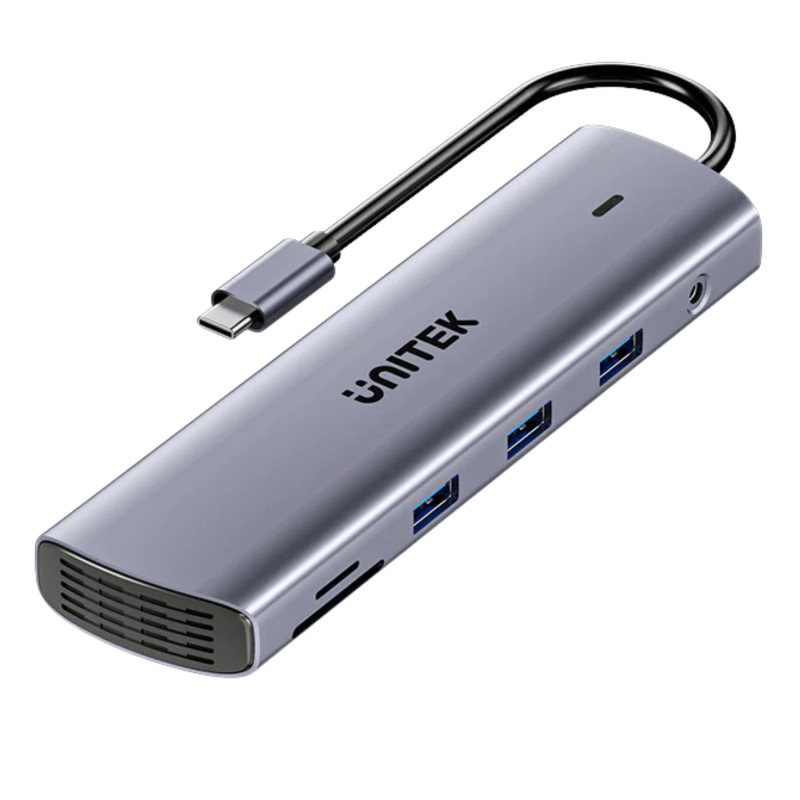

11-in-1 Multifunctional USB-C Docking Station HDMI VGA RJ45 SD MicroSD Card Reader Audio Jack PD 100W

Model: UNITEK D1113BGY01

EAN: 6931240098615 SKU: 931098612

• 11-in-1 multifunctional USB-C hub
• 4K @ 30 Hz resolution support via HDMI
• Fast Power Delivery charging up to 100W
• Gigabit Ethernet network card 10/100/1000 Mbps
• Fast USB 3.0 data transmission up to 5 Gbps
• SD and microSD card reader working simultaneously
• 3.5mm audio jack output for headphones and microphone
• Durable and elegant aluminum alloy housing
• Plug & Play technology - no driver installation required
• Wide compatibility: Windows, macOS, Linux

Description

Unitek D1113BGY01 is an advanced 11-in-1 docking station that transforms a single USB-C port into a powerful connectivity hub. The device is designed for users of modern laptops, tablets, and smartphones who need a wide range of ports in one compact device. Thanks to its aluminum housing, the hub not only looks elegant but also effectively dissipates heat, ensuring stable operation even when all ports are under full load.

Product advantages:

- Versatility: 11 ports in one device allow you to connect almost any peripheral accessory.

- High image quality: Support for 4K resolution via HDMI port and Full HD via VGA connector.

- Fast charging: USB-C port with 100W Power Delivery technology allows you to charge your laptop while using the hub.

- Lightning-fast internet: Gigabit Ethernet connector provides a stable and fast network connection, ideal for remote work.

- Fast data transfer: USB 3.0 ports offer speeds up to 5 Gbps, allowing for instant transfer of large files.

- Card reader: Simultaneous support for SD and microSD cards facilitates work for photographers and filmmakers.

- Durability: Solid aluminum alloy construction guarantees longevity and resistance to damage.

- Mobility: Compact dimensions and an integrated cable make the hub fit perfectly into any bag.

- Compatibility: Works without drivers (Plug & Play) with Windows, macOS, and Linux systems.

- Audio: Built-in 3.5mm jack allows you to connect headphones or speakers directly to the station.

Specification

Device type

11-in-1 Multifunctional USB-C Hub (Docking Station)

Input connector

Integrated USB-C plug on a flexible 20 cm cable

Video outputs

1x HDMI (4K @ 30Hz), 1x VGA (1920x1080 @ 60Hz) - support for two monitors simultaneously in Full HD mode

USB ports

4x USB-A (3x USB 3.0 with throughput up to 5 Gbps, 1x USB 2.0 for accessories like mouse/keyboard)

Power Delivery

USB-C PD port supporting fast pass-through charging with power up to 100W (20V / 5A)

Network interface

RJ-45 Gigabit Ethernet socket (10/100/1000 Mbps) ensuring a stable wired connection

Memory card reader

Dual slot for SD and microSD (TF) cards with the ability to read and write data simultaneously

Audio output

3.5 mm minijack socket (4-pin) supporting headphones and microphone

Data transfer standards

Compliance with USB 3.1 Gen 1 / USB 3.0 (5 Gbps) and backward compatibility with USB 2.0 / 1.1

Software and drivers

The device uses advanced Plug & Play firmware, which eliminates the need to install additional drivers on Windows, macOS, and Linux systems. This software manages intelligent Power Delivery energy distribution up to 100W, protecting connected devices against surges. Additionally, the integrated video controller allows for stable support of extended desktop or mirror mode, automatically negotiating the highest available resolution with the monitor (up to 4K). The hub software also supports energy-saving standards for the Ethernet port and fast data synchronization on the USB 3.0 bus.

Housing and design

Made of high-quality space grey aluminum alloy, ensuring excellent cooling and durability

Physical cable parameters

Length 200 mm, outer diameter approximately 5 mm, reinforced tips preventing breakage

System compatibility

Full support for Microsoft Windows (7/8/10/11), Apple macOS, and Linux distributions

Security

Built-in protection systems against overload, overheating, and short-circuiting of connected peripherals

Contents

1x 11-in-1 USB-C Hub

1x User manual

Dimensions, Weight

Product dimensions: 17 x 160 x 44 mm (D x W x H)

Packaging dimensions: 35 x 175 x 105 mm (D x W x H)

Product weight: 105 g

Weight with packaging: 150 g
