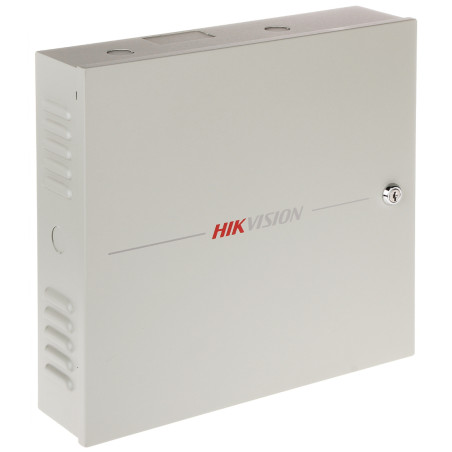

4-door network access controller IP Ethernet OSDP Wiegand metal housing with backup power supply Hikvision DS-K2604T
4.489,50 zł
Tax included
A professional access controller is the heart of an advanced security system, designed for precise management of permissions in facilities of various scales. The device offers comprehensive support for up to four passages, making it an ideal choice for office buildings, production plants, and public institutions. The solid metal housing not only protects the advanced electronics from mechanical damage but also provides a dedicated space for a backup battery, ensuring system continuity even in the event of a power failure.
4-door network access controller IP Ethernet OSDP Wiegand metal housing with backup power supply
Model: Hikvision DS-K2604T
EAN: 6931240074596 SKU: 931074591
- Support for up to 4 passages (doors) within a single device
- Huge memory capacity: 100,000 users and 300,000 events
- Support for the modern OSDP communication protocol
- Compatibility with Wiegand readers (w26 and w34)
- Built-in Ethernet (TCP/IP) network interface for remote management
- Solid metal housing with space for a 7Ah backup battery
- Extensive input section: alarm, door contacts, exit buttons
- Advanced anti-tamper protection (9 dedicated tamper inputs)
- Possibility of remote programming and configuration from a computer
- Wide operating temperature range from -20°C to 65°C
Description
A professional access controller is the heart of an advanced security system, designed for precise management of permissions in facilities of various scales. The device offers comprehensive support for up to four passages, making it an ideal choice for office buildings, production plants, and public institutions. The solid metal housing not only protects the advanced electronics from mechanical damage but also provides a dedicated space for a backup battery, ensuring system continuity even in the event of a power failure.
Specification
Security is a priority, which is why the controller is equipped with numerous input lines for door contacts and exit buttons, as well as an extensive anti-tamper system (9 tamper inputs). The ability to manage and program remotely via dedicated client software significantly increases user comfort, allowing administrators to react instantly to incidents and flexibly modify employee permissions without the need for physical presence at the device. This is a reliable solution for anyone who values the highest standard of property and personal protection.
One of the key advantages of this model is its impressive performance and scalability. The device memory allows for storing data of up to 100,000 users and recording up to 300,000 events, which allows for detailed analysis of human traffic over a long period. The controller supports modern communication standards, including the OSDP protocol and the classic Wiegand, which allows for the free selection of card readers, key fobs, or biometrics. Thanks to the Ethernet (TCP/IP) interface, integration with existing network infrastructure is fast and seamless.
Device type
4-door network access controller
Reader support
8 pcs via RS-485 bus, 4 pcs via Wiegand interface
System capacity
100,000 indexed users, 300,000 event history
Input lines
4x Alarm inputs, 4x Door contact, 4x Gate/door opening button, 9x Anti-tamper
Output lines
4x Lock relay, 4x Auxiliary relay
Communication
Ethernet (TCP/IP), RS-485, Wiegand (w26 / w34), Open Supervised Device Protocol (OSDP)
Power supply
230 V AC (alternating current)
Battery compatibility
Support for a backup battery with a maximum capacity of 7 Ah
Software and management
The device works with professional iVMS-4200 and HikCentral software. These applications enable full, remote management of the access control system from a PC. The software capabilities include: creating and editing a user database, assigning cards and access codes, defining advanced time schedules (e.g., access only during working hours), and creating access levels for employee groups. The system allows for monitoring the door status in real-time, remotely forcing the opening or locking of passages in emergency situations. Additionally, the software generates detailed event history reports, which can be used to verify attendance or analyze security incidents. Integration with CCTV systems allows for linking events with video recordings.
Selected features
Remote programming from a computer, Metal protective housing, LED status indicators, Non-volatile memory
Operating temperature
-20 °C ... 65 °C
Ambient humidity
10 % ... 95 % (non-condensing)
Construction
302913800
Metal housing, grey/white color, surface mounting
1x Access controller in metal housing
1x Set of keys for the housing
1x Set of mounting accessories
1x User manual
Contents
Manufacturer code (SAP)
Dimensions, Weight
Product dimensions: 98 x 373 x 345 mm (D x W x H)
Packaging dimensions: 145 x 475 x 400 mm (D x W x H)
Product weight: 4700 g
Weight with packaging: 5560 g
