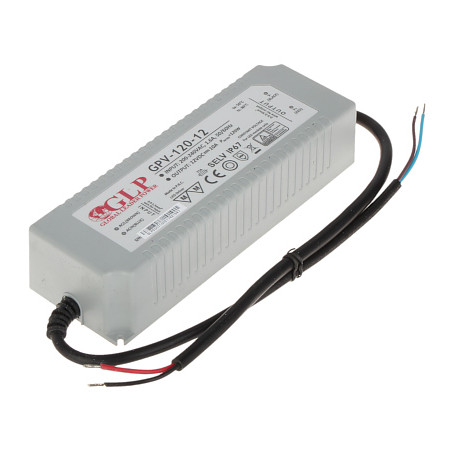

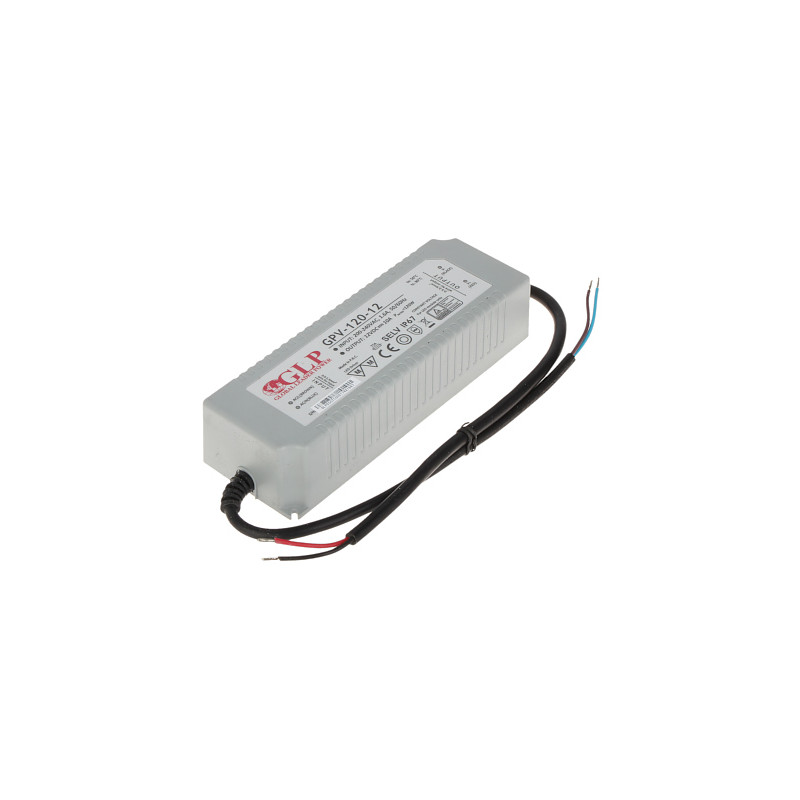

Hermetic IP67 12V 10A 120W Power Supply for LED IR Switching Stabilized Mounting External GLP 12V/10A/GPV
161,28 zł
Tax included
The 12V/10A/GPV switching power supply is a professional power device designed for operation in the most demanding environmental conditions. Thanks to the use of a hermetic housing made of high-quality plastic, the product features an IP67 protection rating. This means complete dust-tightness and high resistance to water, including the possibility of short-term immersion. It is an ideal solution for powering modern LED lighting systems, IR LED infrared illuminators in video surveillance systems, and other electronic devices requiring a stable 12V DC voltage.
One of the key advantages of the power supply is its impressive current efficiency of 10A, which translates to a total power of 120W. Such a power reserve allows for stable powering of extensive installations without the risk of voltage drops. However, it is important to remember an essential operational rule: for continuous operation (24h/day), the rated current should not exceed 80% of the maximum value, which guarantees long and trouble-free operation. The housing design has been optimized for easy installation, featuring dedicated brackets for mounting on a wall or other flat surface.
Installation safety is ensured by advanced protection circuits against overload, short-circuit, overvoltage, and overheating (thermal). Thanks to these, the power supply protects not only itself but also the expensive receivers connected to it. The device operates reliably in a wide temperature range from -20°C to +70°C, making it an excellent choice for outdoor installations exposed to variable weather conditions. By choosing the GPV model, you are opting for proven quality and maximum reliability in low-voltage power systems.
Hermetic IP67 12V 10A 120W Power Supply for LED IR Switching Stabilized Mounting External
Model: GLP 12V/10A/GPV
EAN: 6931240070338 SKU: 931070337
- High IP67 ingress protection rating ensuring resistance to water and dust
- Stabilized 12V DC output voltage ideal for LED and CCTV
- High current efficiency of 10A (120W total power)
- Complete protection system: short-circuit, overload, overvoltage, and thermal
- Durable plastic housing with mounting brackets
- Wide operating temperature range from -20°C to +70°C
- Designed for powering IR LED illuminators and LED strips
- Compact dimensions for easy concealment in installations
Description
The 12V/10A/GPV switching power supply is a professional power device designed for operation in the most demanding environmental conditions. Thanks to the use of a hermetic housing made of high-quality plastic, the product features an IP67 protection rating. This means complete dust-tightness and high resistance to water, including the possibility of short-term immersion. It is an ideal solution for powering modern LED lighting systems, IR LED infrared illuminators in video surveillance systems, and other electronic devices requiring a stable 12V DC voltage.
One of the key advantages of the power supply is its impressive current efficiency of 10A, which translates to a total power of 120W. Such a power reserve allows for stable powering of extensive installations without the risk of voltage drops. However, it is important to remember an essential operational rule: for continuous operation (24h/day), the rated current should not exceed 80% of the maximum value, which guarantees long and trouble-free operation. The housing design has been optimized for easy installation, featuring dedicated brackets for mounting on a wall or other flat surface.
Installation safety is ensured by advanced protection circuits against overload, short-circuit, overvoltage, and overheating (thermal). Thanks to these, the power supply protects not only itself but also the expensive receivers connected to it. The device operates reliably in a wide temperature range from -20°C to +70°C, making it an excellent choice for outdoor installations exposed to variable weather conditions. By choosing the GPV model, you are opting for proven quality and maximum reliability in low-voltage power systems.
Specification
Power supply type
Switching - characterized by high efficiency and low weight compared to transformer power supplies.
Supply voltage
200 ... 240 V AC - standard AC mains voltage.
Frequency range
50 / 60 Hz
Output voltage
12 V DC - stabilized DC voltage.
Power supply current efficiency
10 A - maximum output current.
Power supply power
120 W - total rated power of the device.
Number of outputs
1 pc. - output power cables.
Overload protection
Yes - protects the power supply from damage in case of connecting a receiver with excessive power consumption.
Short-circuit protection
Yes - automatic voltage disconnection in case of a short circuit in the output circuit.
Overvoltage protection
Yes - protection of connected devices against sudden voltage spikes.
Thermal protection
Yes - device shutdown after exceeding the safe operating temperature.
Housing type
Plastic - hermetic, resistant to external factors.
Operating temperature
-20 °C ... 70 °C - allows for indoor and outdoor installation.
Ingress protection rating
IP67 - complete protection against dust and resistance to water immersion.
Selected features
Housing adapted for wall mounting; dedicated to LED lighting and IR systems.
Warranty
2 years
Contents
1x 12V/10A/GPV switching power supply
Dimensions, Weight
Product dimensions: 45 x 205 x 70 mm (D x W x H)
Package dimensions: 55 x 280 x 85 mm (D x W x H)
Product weight: 1040 g
Weight with packaging: 1110 g
