- New

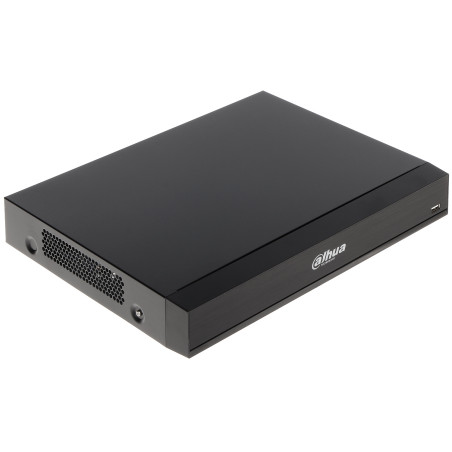

Dahua XVR7104H-4K-I3 WizSense 4-Channel Recorder AHD/CVI/TVI/CVBS/IP Dahua XVR7104H-4K-I3
2.785,95 zł
Tax included
The XVR7104H-4K-I3 digital recorder is an advanced, professional-grade device designed to support modern video surveillance systems. The device supports a wide range of signal transmission standards, including AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, making it an extremely versatile solution for both upgraded and new CCTV installations. Thanks to the use of WizSense technology, the recorder offers intelligent image analysis based on artificial intelligence algorithms, which significantly increases the effectiveness of facility protection.
The device features an intuitive user interface designed for easy operation, even by beginners. The recorder supports advanced functions such as face recognition, perimeter protection, and SMD Plus technology, which precisely classifies objects as humans or vehicles, eliminating false alarms. Additionally, the recorder is adapted to work with the Dahua Internet of Things (IoT) ecosystem, allowing for integration with other smart home devices.
The advantages of the device include high recording resolution up to 8 Mpx (4K), support for SATA hard drives with a capacity of up to 16 TB, and the ability to remotely view via the DMSS mobile application. The robust construction and support for the ONVIF standard ensure compatibility with a wide range of cameras from various manufacturers, making this model an excellent choice for demanding users looking for reliability and modern analytical functions.
Dahua XVR7104H-4K-I3 WizSense 4-Channel Recorder AHD/CVI/TVI/CVBS/IP
Model: Dahua XVR7104H-4K-I3
EAN: 6931240017173 SKU: 931017172
- Support for 4 video channels in AHD/CVI/TVI/CVBS standards + 4 IP channels
- WizSense technology with advanced AI analysis
- Recording resolution up to 8 Mpx (4K)
- Support for SATA hard drives up to 16 TB
- Intelligent image analysis: SMD Plus, perimeter protection, face recognition
- Remote access via DMSS app (Android/iOS)
- Support for IoT technology
- 4K HDMI and VGA video outputs
Description
The XVR7104H-4K-I3 digital recorder is an advanced, professional-grade device designed to support modern video surveillance systems. The device supports a wide range of signal transmission standards, including AHD, HD-CVI, HD-TVI, CVBS, and IP cameras, making it an extremely versatile solution for both upgraded and new CCTV installations. Thanks to the use of WizSense technology, the recorder offers intelligent image analysis based on artificial intelligence algorithms, which significantly increases the effectiveness of facility protection.
The device features an intuitive user interface designed for easy operation, even by beginners. The recorder supports advanced functions such as face recognition, perimeter protection, and SMD Plus technology, which precisely classifies objects as humans or vehicles, eliminating false alarms. Additionally, the recorder is adapted to work with the Dahua Internet of Things (IoT) ecosystem, allowing for integration with other smart home devices.
The advantages of the device include high recording resolution up to 8 Mpx (4K), support for SATA hard drives with a capacity of up to 16 TB, and the ability to remotely view via the DMSS mobile application. The robust construction and support for the ONVIF standard ensure compatibility with a wide range of cameras from various manufacturers, making this model an excellent choice for demanding users looking for reliability and modern analytical functions.
Specification
Standard
AHD, HD-CVI, HD-TVI, CVBS, IP
Video inputs
4 pcs BNC
Video outputs
1x HDMI 4K, 1x VGA
Audio Inputs/Outputs
1x CINCH input, 1x CINCH output, audio support via coaxial cable for 4 channels
Image compression
AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
Recording resolution
Up to 8 Mpx (3840x2160) for AHD/CVI/TVI/IP, 960H for CVBS
Disk support
1x SATA up to 16 TB
Network interface
1x RJ-45 10/100/1000 Mbps
Software
The device supports the DMSS application (Android/iOS), which enables full remote live view, playback of recordings from the archive, and management of recorder settings. The application supports push notifications for alarm events, P2P cloud access, and configuration of intelligent analytical functions. The recorder's web interface allows for advanced system administration from a web browser, offering full control over recording parameters, privacy zones, and face databases. The software is optimized for smooth operation in networks with varying bandwidth.
AI functions
Face recognition (up to 10 databases, 20,000 photos), face detection, perimeter protection (10 rules), SMD Plus (human/vehicle classification), Quick Pick 2.0
USB ports
1x USB 3.0, 1x USB 2.0
Power supply
12V DC / 2A
Operating temperature
-10°C ... 55°C
Dimensions
325 x 255 x 55 mm
Contents
1x XVR7104H-4K-I3 Recorder
1x 12V/2A Power adapter
1x Computer mouse
1x SATA drive mounting kit
Dimensions, Weight
Product dimensions: 255 x 325 x 55 mm (D x W x H)
Package dimensions: 320 x 380 x 120 mm (D x W x H)
Product weight: 1200 g
Weight with packaging: 1600 g
