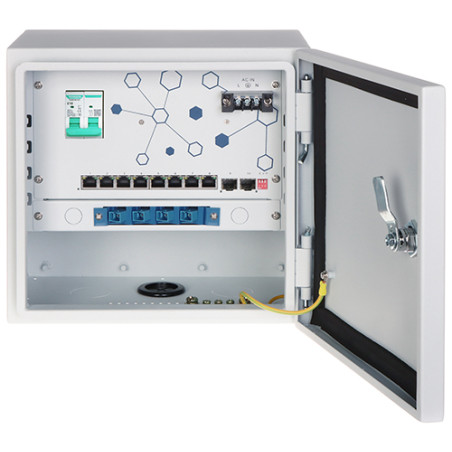

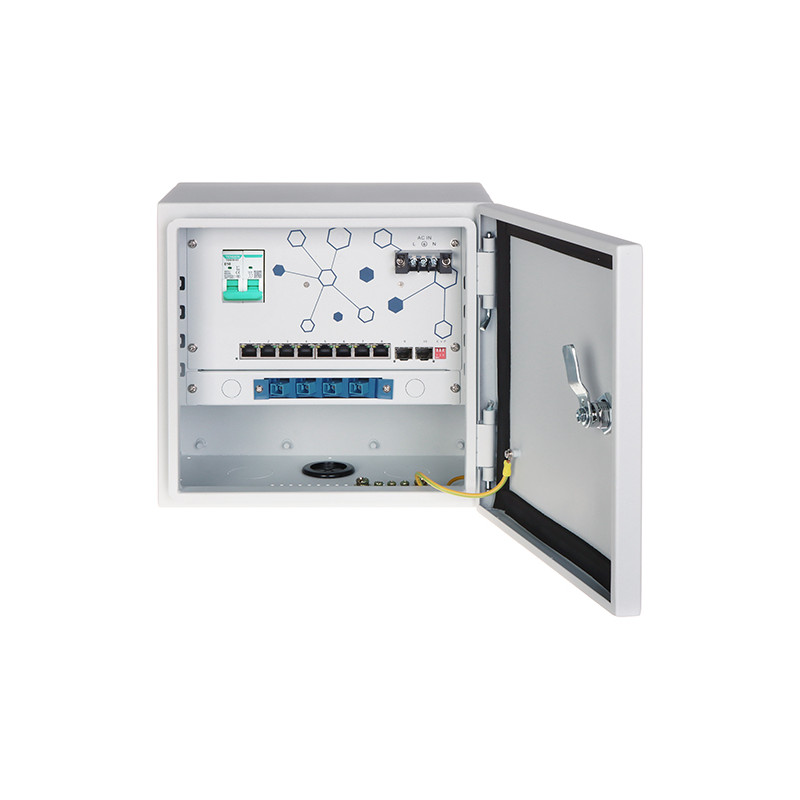

Outdoor camera distribution point 8x PoE + 2x SFP IP55 Expert EXPERT-POE/OTD-82GSFP
1.495,68 zł
Tax included
The EXPERT-POE/OTD-82GSFP kit is a professional solution dedicated to outdoor IP monitoring installations that require reliable power supply and long-distance data transmission. The device is an integrated distribution point combining an 8-port PoE switch, two SFP Uplink ports, a fiber optic patch panel, overcurrent protection, and a lightning arrester. The entire unit is enclosed in a robust, metal outdoor housing with an IP55 ingress protection rating, which guarantees full protection against adverse weather conditions such as rain or dust.
The advantages of this solution primarily include high functionality and time savings during installation. Thanks to the built-in fan and well-thought-out design, the device ensures stable operation in a wide temperature range from -20°C to 65°C. The EXTEND operating mode allows for PoE signal transmission over a distance of up to 250 meters, which significantly increases network design flexibility. Additionally, the PoE Auto-check function automatically monitors the status of powered devices and restarts them if no response is detected, minimizing the need for service intervention. The use of a fiber optic patch panel allows for easy termination of optical cables, making this kit an ideal choice for extensive CCTV systems.
Outdoor camera distribution point 8x PoE + 2x SFP IP55
Model: Expert EXPERT-POE/OTD-82GSFP
EAN: 6931240091326 SKU: 931091328
- 8 PoE ports (802.3af/at) with support for up to 30W per port
- 2 SFP Uplink 1000 Base-X ports
- Integrated fiber optic patch panel with splice cassette
- IP55 outdoor enclosure with lock and fan
- Built-in lightning protection and C10 circuit breaker
- EXTEND mode (range up to 250m) and VLAN
- PoE Auto-check function (automatic device restart)
Description
The EXPERT-POE/OTD-82GSFP kit is a professional solution dedicated to outdoor IP monitoring installations that require reliable power supply and long-distance data transmission. The device is an integrated distribution point combining an 8-port PoE switch, two SFP Uplink ports, a fiber optic patch panel, overcurrent protection, and a lightning arrester. The entire unit is enclosed in a robust, metal outdoor housing with an IP55 ingress protection rating, which guarantees full protection against adverse weather conditions such as rain or dust.
The advantages of this solution primarily include high functionality and time savings during installation. Thanks to the built-in fan and well-thought-out design, the device ensures stable operation in a wide temperature range from -20°C to 65°C. The EXTEND operating mode allows for PoE signal transmission over a distance of up to 250 meters, which significantly increases network design flexibility. Additionally, the PoE Auto-check function automatically monitors the status of powered devices and restarts them if no response is detected, minimizing the need for service intervention. The use of a fiber optic patch panel allows for easy termination of optical cables, making this kit an ideal choice for extensive CCTV systems.
Specification
LAN ports
8 x RJ45 10/100 Base-T (8 x PoE 802.3af/at), 2 x SFP (Uplink) 1000 Base-X
Management
None
LED indicators
Power, Link/Act, PoE
Transmission speed
10/100 Mbps (LAN/PoE ports), 1000 Mbps (SFP ports)
Output power
30W per port (802.3af/at), total 115W
MAC address table
16k
Operating modes
EXTEND (up to 250m), VLAN (port isolation), PoE Auto-check (automatic restart)
Fiber optic patch panel
2 line cables, 1 splice cassette (space for 8 splices), SC/PC connectors, 4 adapters, 4 pigtails
Enclosure
Metal, grey color, IP55 class, 3 cable glands Ø 39mm, lock, fan
Protections
ESD 6/8kV, C10 circuit breaker, lightning arrester (385V AC, nominal discharge current 20kA, max 40kA)
Power supply
100-240V AC, 50/60Hz
Operating temperature
-20°C ... 65°C
Certificates
CE, RoHS
Warranty
2 years
Contents
1x Outdoor camera distribution point EXPERT-POE/OTD-82GSFP, mounting elements
Dimensions, Weight
Product dimensions: 210 x 280 x 260 mm (D x W x H)
Package dimensions: 365 x 360 x 275 mm (D x W x H)
Product weight: 5650 g
Weight with packaging: 7670 g
