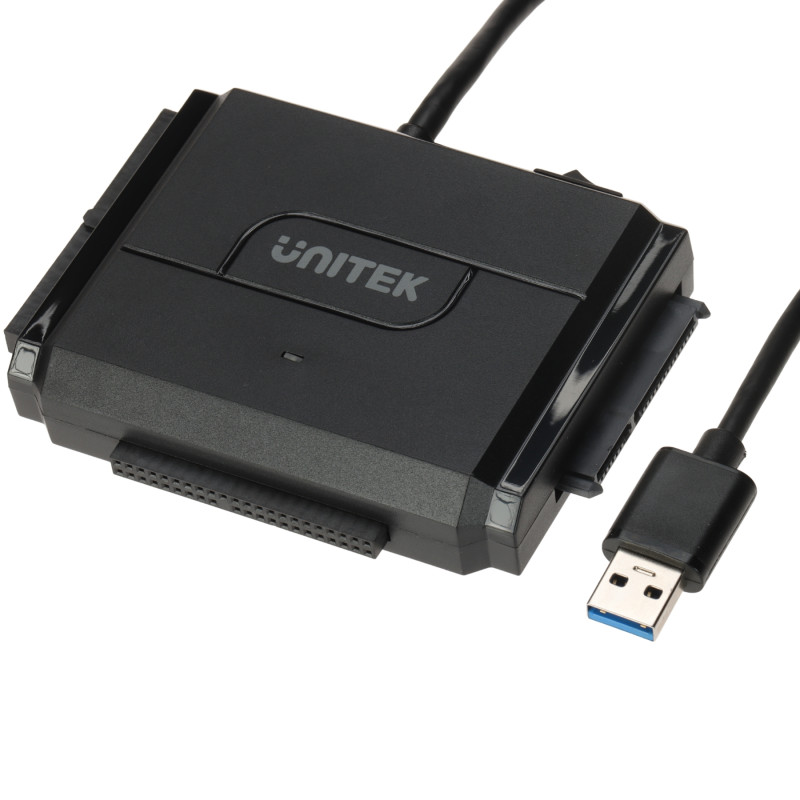

USB 3.0 Adapter for SATA I II IDE 2.5 3.5 inch SSD HDD SmartLink Trinity Converter Bridge 12V Power Supply

Model: UNITEK Y-3324

EAN: 6931240043448 SKU: 931043444

• Simultaneous support for up to 3 drives (1x SATA + 2x IDE)
• Backward compatible with USB 2.0 and USB 1.1 interfaces
• Support for 2.5-inch and 3.5-inch HDD and SSD drives
• Support for CD/DVD-ROM/RW optical drives
• Fast data transfer via USB 3.0 standard (up to 5 Gbps)
• Maximum supported SATA II drive capacity up to 18 TB
• Automatic sleep function after 30 minutes of inactivity
• LED indicator for power status
• Simple Plug & Play installation - no drivers required
• External 12V power supply ensuring stable operation for 3.5" drives
• Long USB cable (80 cm) for easy connection to a computer
• Compatible with Windows, Linux, and Mac-OS systems

Description

The Y-3324 adapter is a versatile and highly efficient bridge tool, representing an ideal solution for technicians, hobbyists, and home users who need quick access to data on both old and new drives. The device allows for the simultaneous connection of up to three hard drives: one SATA (2.5" or 3.5") and two IDE (40-pin and 44-pin). Thanks to the modern USB 3.0 interface, data transfer occurs at speeds up to 5 Gbps, allowing for lightning-fast copying of large files, creating backups, or recovering data from damaged systems.

The advantage of the device is its full compatibility with a wide range of optical drives, including CD-ROM, DVD-ROM, and CD-RW/DVD-RW burners. The Plug & Play feature ensures the adapter is ready for work immediately upon connection, without the need to install additional drivers on Windows, Linux, or Mac-OS systems. Additionally, the built-in power-saving system automatically puts connected drives into sleep mode after 30 minutes of inactivity, which significantly extends the lifespan of data storage media. A solid housing made of high-quality plastic and the included efficient 12V/2A power supply guarantee stable operation even with the most demanding drives up to 18 TB. This is an indispensable accessory that combines modernity with support for legacy standards, giving a second life to older computer components.

Specification

Product series

SmartLink Trinity - advanced line of multifunctional adapters

Supported SATA drives

SATA I (1.5 Gbps), SATA II (3 Gbps) - 2.5-inch and 3.5-inch formats

Supported IDE drives

IDE 40-pin (3.5-inch), IDE 44-pin (2.5-inch) - ATA/ATAPI standards

Supported optical drives

CD-ROM, DVD-ROM, CD-RW, DVD-RW, DVD+RW (SATA/IDE interfaces)

Output interface

USB 3.0 Type A (compatible with USB 2.0/1.1)

Transmission speed

SuperSpeed up to 5 Gbps (depending on the performance of the connected drive)

Maximum capacity

Support for drives with capacity up to 18 TB (for SATA II standard)

Status indicators

Built-in LED indicating power connection

Power management

Sleep Mode activated after 30 minutes of inactivity

External power supply

12 V DC / 2 A power adapter (included in the set)

Material and color

Durable plastic (ABS), black color

Cable length

Integrated 80 cm USB cable

System compatibility

Windows XP/Vista/7/8/8.1/10/11, Linux, Mac-OS 9.0 and later

Software and drivers

The device uses SmartLink Trinity technology, which integrates USB-SATA and USB-IDE bridge controllers into a single logic circuit. The adapter's firmware ensures full transparency for the operating system, eliminating the need to install external drivers. The system automatically recognizes connected volumes as removable drives. The control logic manages access priorities when three media are connected simultaneously, ensuring data integrity and transfer stability in Bulk-Only Transport (BOT) standard.

Contents

1x Y-3324 Adapter

1x 12V/2A power adapter

1x User manual

Dimensions, Weight

Product dimensions: 73 x 99 x 17 mm (D x W x H)

Packaging dimensions: 115 x 165 x 105 mm (D x W x H)

Product weight: 90 g

Weight with packaging: 340 g
