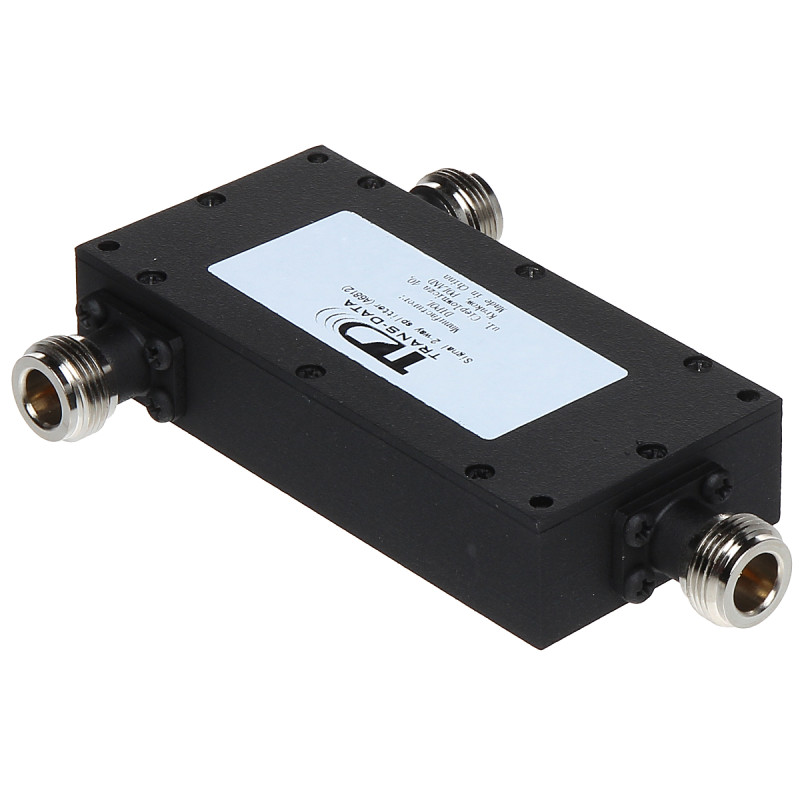

Professional 2-way GSM 3G 4G LTE DCS antenna signal splitter N-type connectors Trans Data RI-2/1N
44,82 €
Tax included
The RI-2/1N GSM splitter is a professional passive device designed for advanced indoor cellular signal enhancement systems. Its primary task is the precise and efficient distribution of the amplified signal from a GSM repeater to two independent indoor antennas. This solution allows the user to effectively eliminate dead zones in large facilities such as offices, warehouses, hotels, or expansive detached houses.
Product advantages:
- Wide frequency spectrum: The device operates in the range from 800 MHz to 2500 MHz, ensuring full compatibility with 2G (GSM), 3G (UMTS), DCS technologies, and the modern 4G LTE standard.
- Low signal attenuation: An attenuation value of only 3.5 dB minimizes power loss, which is critical for maintaining high-quality voice calls and fast data transfer.
- Solid construction: The metal housing not only protects against mechanical damage but also provides excellent shielding against external interference.
- Professional N-type connectors: The use of N-type female connectors ensures mechanical connection stability and minimizes contact losses, which is the standard in professional radio communication installations.
- Ease of installation: Compact dimensions and a simple operating principle allow for quick mounting anywhere in the antenna installation.
By investing in a Trans Data brand splitter, you gain the certainty of a stable GSM system operation. It is an essential element wherever a single indoor antenna cannot cover the entire required area. The product is characterized by high durability and reliability, which is confirmed by a two-year warranty period.Professional 2-way GSM 3G 4G LTE DCS antenna signal splitter N-type connectors
Model: Trans Data RI-2/1N
EAN: 6931240045985 SKU: 931045987
- Splitting GSM signal to 2 indoor antennas
- Support for 3G, DCS, GSM and LTE bands
- Wide frequency range: 800 - 2500 MHz
- Low insertion loss: 3.5 dB
- Standard N-type connectors (female)
- 50 Ohm characteristic impedance matched to GSM systems
- Durable metal shielding enclosure
- Product from the renowned Trans Data brand
Description
The RI-2/1N GSM splitter is a professional passive device designed for advanced indoor cellular signal enhancement systems. Its primary task is the precise and efficient distribution of the amplified signal from a GSM repeater to two independent indoor antennas. This solution allows the user to effectively eliminate dead zones in large facilities such as offices, warehouses, hotels, or expansive detached houses.
Product advantages:
- Wide frequency spectrum: The device operates in the range from 800 MHz to 2500 MHz, ensuring full compatibility with 2G (GSM), 3G (UMTS), DCS technologies, and the modern 4G LTE standard.
- Low signal attenuation: An attenuation value of only 3.5 dB minimizes power loss, which is critical for maintaining high-quality voice calls and fast data transfer.
- Solid construction: The metal housing not only protects against mechanical damage but also provides excellent shielding against external interference.
- Professional N-type connectors: The use of N-type female connectors ensures mechanical connection stability and minimizes contact losses, which is the standard in professional radio communication installations.
- Ease of installation: Compact dimensions and a simple operating principle allow for quick mounting anywhere in the antenna installation.
By investing in a Trans Data brand splitter, you gain the certainty of a stable GSM system operation. It is an essential element wherever a single indoor antenna cannot cover the entire required area. The product is characterized by high durability and reliability, which is confirmed by a two-year warranty period.Specification
Device type
Passive antenna splitter (2-way splitter)
Number of inputs
1 pc. - N-type female
Number of outputs
2 pcs. - N-type female
Supported standards
GSM, DCS, 3G, UMTS, LTE (Long Term Evolution)
Frequency range
800 MHz ... 2500 MHz (covers all popular mobile telephony bands)
Signal attenuation
3.5 dB (very low power loss during signal splitting)
Impedance
50 Ω (standard impedance for radio and GSM systems)
Housing construction
Metal, fully shielded, providing protection against EMI interference
Application
Indoor cellular signal enhancement systems, antenna installations
Operating temperature
From -20°C to +60°C (stable operation in diverse conditions)
Operating humidity
5% - 95% (non-condensing)
Mounting method
Through-type, can be mounted to a surface using holes in the housing
Warranty
2 years (24 months for individual customers and companies)
Software
The device is a fully passive component, meaning it has no built-in processor, memory, or firmware. It operates on the principle of physical division of the electromagnetic wave inside the waveguide, which eliminates the need for any digital configuration, driver installation, or dedicated mobile applications. The absence of active elements and control electronics significantly increases the reliability and fault-free operation of the entire transmission system, requiring no power supply or software updates.
Contents
1x GSM RI-2/1N splitter
Dimensions, Weight
Product dimensions: 21 x 117 x 83 mm (D x W x H)
Package dimensions: 25 x 120 x 90 mm (D x W x H)
Product weight: 215 g
Weight with packaging: 240 g
