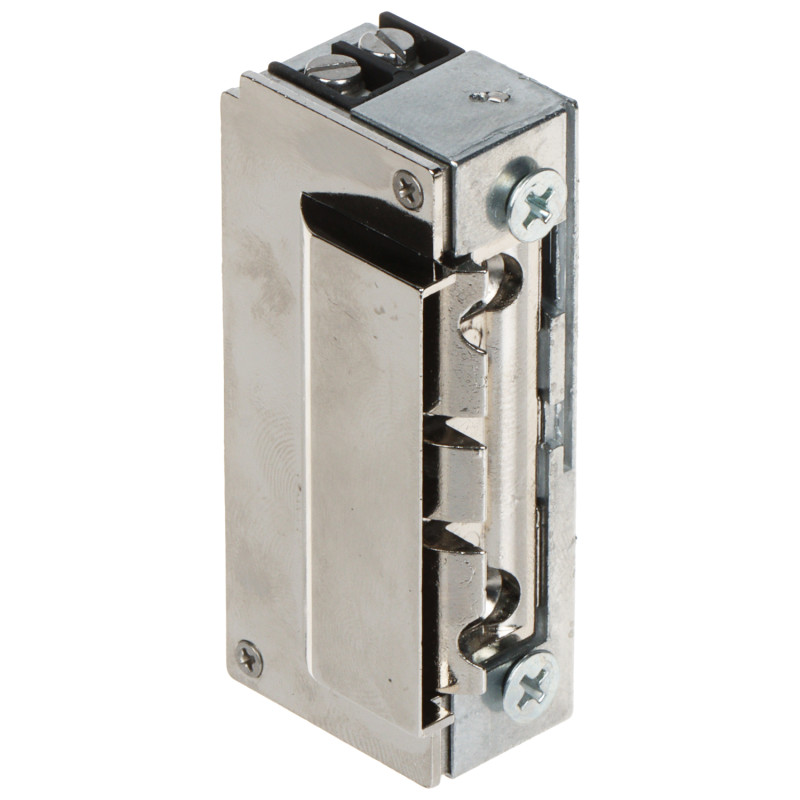

Fail-Safe Electric Strike with Slide for Flush Doors 12V AC/DC NO Low-Current Symmetric BIRA XS12R-C
218,18 zł
Tax included
The professional fail-safe electric strike XS12R-C from the Hartte series is an advanced solution dedicated to access control systems and intercom installations. The main advantage of this model is the integrated slide, which acts as a latch cover. Thanks to this innovative solution, the installation of the device does not require additional widening of the opening in the door frame for the swinging strike, which significantly shortens installation time and improves the aesthetics of the door finish. The product features a symmetric design, making it a universal choice for both left and right-handed doors. It is particularly recommended for modern flush doors, where precision and minimalism are valued.
Another key advantage is the radial shape of the strike. During operation, the latch moves along a small radius and does not protrude beyond the outline of the electric strike housing, which allows for minimizing the cutout in the door profile. The XS12R-C model operates in fail-safe mode (NO - normally open), which means that in the event of a power failure, the door remains open. This is a key solution in fire safety and evacuation systems, where free passage in emergency situations is a priority.
The device offers clearance adjustment in the range of up to 3.5 mm, which allows for precise adjustment to the handle lock tongue even after the door has been installed and potential building construction work has been completed. Mechanical strength at the level of 3000 N (approx. 300 kg) and a tested durability of 200,000 opening cycles guarantee reliability for many years of intensive use. The electric strike is adapted for power supply with direct current (DC) or alternating current (AC) in a wide range from 10 to 14V, which makes it compatible with most power supplies, alarm control panels, and access controllers available on the market. A solid housing and precise workmanship by the renowned BIRA brand ensure the highest safety standard.
Fail-Safe Electric Strike with Slide for Flush Doors 12V AC/DC NO Low-Current Symmetric
Model: BIRA XS12R-C
EAN: 6931240034224 SKU: 931034222
- Fail-safe operation (NO) - open without power supply
- Integrated slide covering the latch (no need to cut the door frame)
- Symmetric design - fits left and right-handed doors
- Radial strike shape - does not protrude beyond the lock outline during operation
- Clearance adjustment in the range of 3.5 mm
- High mechanical strength against pressure up to 3000 N
- Wide supply voltage range 10-14V AC/DC
- Dedicated to flush doors
Description
The professional fail-safe electric strike XS12R-C from the Hartte series is an advanced solution dedicated to access control systems and intercom installations. The main advantage of this model is the integrated slide, which acts as a latch cover. Thanks to this innovative solution, the installation of the device does not require additional widening of the opening in the door frame for the swinging strike, which significantly shortens installation time and improves the aesthetics of the door finish. The product features a symmetric design, making it a universal choice for both left and right-handed doors. It is particularly recommended for modern flush doors, where precision and minimalism are valued.
Another key advantage is the radial shape of the strike. During operation, the latch moves along a small radius and does not protrude beyond the outline of the electric strike housing, which allows for minimizing the cutout in the door profile. The XS12R-C model operates in fail-safe mode (NO - normally open), which means that in the event of a power failure, the door remains open. This is a key solution in fire safety and evacuation systems, where free passage in emergency situations is a priority.
The device offers clearance adjustment in the range of up to 3.5 mm, which allows for precise adjustment to the handle lock tongue even after the door has been installed and potential building construction work has been completed. Mechanical strength at the level of 3000 N (approx. 300 kg) and a tested durability of 200,000 opening cycles guarantee reliability for many years of intensive use. The electric strike is adapted for power supply with direct current (DC) or alternating current (AC) in a wide range from 10 to 14V, which makes it compatible with most power supplies, alarm control panels, and access controllers available on the market. A solid housing and precise workmanship by the renowned BIRA brand ensure the highest safety standard.
Specification
Rated voltage
10 ... 14 V AC/DC - wide operating range allowing for stable operation in various installations.
AC power consumption
480 mA @ 12 V AC - alternating current, optimal for standard intercom transformers.
DC power consumption
680 mA @ 12 V DC - direct current, ensuring quiet and stable operation of the bolt.
Operating mode
Fail-safe (NO) - the device remains open when there is no power, closed when voltage is applied.
Application
Universal for left and right-handed doors; specially optimized for flush doors.
Strike construction
Radial - innovative latch moving along an arc, not protruding beyond the housing.
Slide
Integrated slide covering the latch, eliminating the need for additional milling of the door frame.
Adjustment
Built-in clearance adjustment in the range of 3.5 mm allowing for correction after installation.
Mechanical strength
Resistance to pressure and impact up to 3000 N (approximately 300 kg load).
Operational durability
High reliability confirmed by tests for 200,000 opening and closing cycles.
Electrical parameters
The coil resistance is 17.6 Ohm, which ensures thermal stability during operation.
Housing
Symmetric design with dimensions of 19 x 67 x 28 mm, facilitating installation in narrow profiles.
Safety
Recommended for evacuation passages, fire protection systems, and high-traffic areas.
System compatibility
The XS12R-C device is fully compatible with access control management systems (ACMS) and mobile applications such as Tuya Smart, eWeLink, or dedicated systems from manufacturers such as Dahua (DSS), Hikvision (iVMS), or ATLO. Cooperation with these systems allows for remote control of the bolt, creation of advanced time schedules for opening, and full integration with alarm and fire protection systems. Thanks to the low coil resistance, the device works stably with most relay controllers and I/O modules.
Contents
1x XS12R-C Electric Strike
1x Installation manual
Dimensions, Weight
Product dimensions: 28 x 19 x 67 mm (D x W x H)
Packaging dimensions: 28 x 97 x 35 mm (D x W x H)
Product weight: 164 g
Weight with packaging: 168 g
