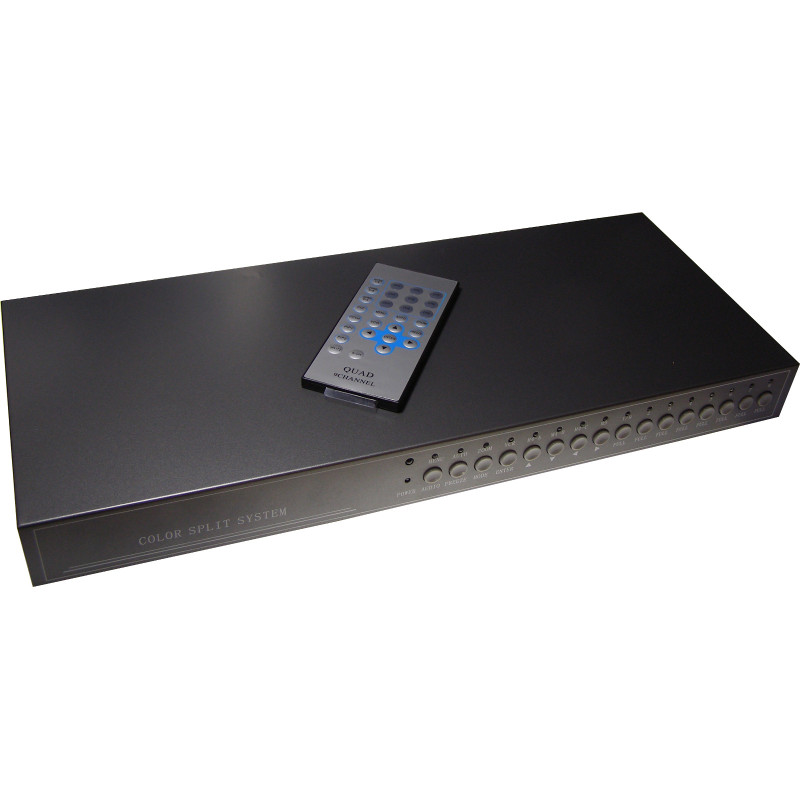

9 Channel QUAD Video Splitter VGA RS485 Colour Alarm Loop Rack Remote

Model: ACTii AC8755

EAN: 6931240087558 SKU: 875546029

• VGA output and VIDEO output (TV-OUT) for connection to a TV.
• RS-485 - allows connection of the splitter to e.g. a control keyboard, recorder, or computer.
• 9 cameras. The QUAD allows for splitting the TV or monitor screen into 9, 8, 2, 3, or 1 sections. This enables viewing images from up to 9 cameras simultaneously.
• The QUAD has a motion detection option. Upon detection, it can trigger an audible signal and enlarge the image of the camera where detection was triggered to full screen. There is a possibility to set detection sensitivity for each camera separately.
• Possibility to mount the splitter in a server cabinet. RACK mounting brackets are included in the set.
• Alarm inputs and outputs

Description

9 Channel QUAD Video Splitter VGA RS485 Colour Alarm Loop Rack Remote

Specification

Parameters

Display image resolution:

PAL 720x576/NTSC: 720x480

Image refresh rate:

PAL: 25fps NTSC: 30fps

Video inputs:

9x 1Vp-p, 75 Ohm, BNC

Loop inputs:

9x 1Vp-p, 75 Ohm, BNC

VCR input/output:

1x 1Vp-p, 75 Ohm, BNC/1x, 1Vp-p, 75 Ohm, BNC

Video splitter functions

The QUAD has a motion detection option. Upon detection, it can trigger an audible signal and enlarge the image of the camera where detection was triggered to full screen. There is a possibility to set detection sensitivity for each camera separately.

ZOOM function - Allows zooming in on camera images. In single-channel full-screen mode, pressing the zoom button allows you to magnify the image. Control of the zoomed image view is done via remote control or buttons on the video splitter.

AUTO function: Displays images from selected cameras in sequence for a specified time. One of the switched views can be a 4-camera split view. The display duration for each camera is set individually.

PIP FUNCTION: while viewing an image from one camera, you can simultaneously view what is on another camera in a small window.

VCR input and output: possibility to connect a VCR to the video splitter.

Event list: You can display a list of the last 60 events, e.g., motion detection, alarm, or loss of camera signal.

Screen freeze function (pause)

Possibility to set date and time on the camera view.

Included remote control improves QUAD operation.

Brightness, color, contrast, saturation settings.

Date and time setting.

Mirror function.

Password protection.

VGA output

Output: (D-SUB): 1x DIN-15

Supported resolutions: 800x600, 1024x768

Power supply

Power supply: 12V DC/1A, 230V AC

Power consumption: 1A

RS485 input

1x

Alarm functions

8x alarm input

1x alarm output

Set contents

Video splitter (QUAD)

Remote control

Power supply

Packaging

RACK brackets

User manual

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 182 x 440 x 42 mm (Depth x Width x Height)

Package dimensions: 200 x 500 x 55 mm (Depth x Width x Height)

Product weight: 1890 g

Weight with packaging: 2224 g
