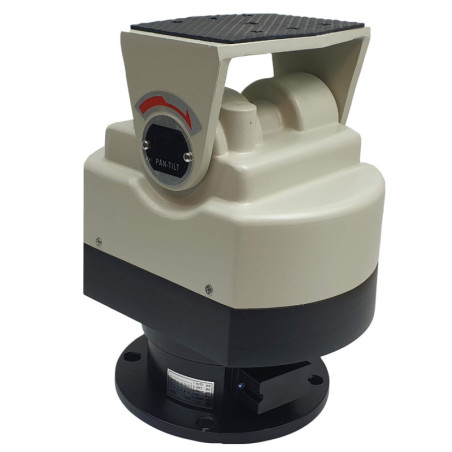

Outdoor CCTV Camera and Solar Panel Pan Tilt Mount 350 deg 70 deg 24V RS-485 Controller 25kg Load

Model: ACTii AC3044

EAN: 6931240030448 SKU: 3044791568

• Type: Outdoor Pan Tilt Mount
• Rotation range: Horizontal 350°, Vertical 70°
• Control: Built-in RS-485 controller for the mount and MOTO-ZOOM lens
• Power output: 12V DC for camera and/or MOTO-ZOOM lens
• Additional features: Adjustable horizontal rotation limit, scan function (cyclical left-right rotation)
• Maximum load: 25 kg
• Applications: Border control, prisons, police, construction sites, rotating solar panels, other outdoor applications

Description

Outdoor PAN TILT unit with a built-in RS485 controller, designed for use in CCTV systems, tracking systems for photovoltaic solar panels, and for positioning various devices such as antennas, night vision devices, sensors, floodlights, and lighting.

The device is equipped with a precise synchronous motor providing accurate positioning and an automatic rotation limit adjustment function.

The construction is made by aluminum alloy extrusion, ensuring high mechanical strength and resistance to harsh environmental conditions, including high and low temperatures, corrosion, strong wind, water, and acidic substances.

The integrated RS485 decoder supports multiple communication protocols and transmission speeds, characterized by strong anti-interference capabilities and low power consumption.

The mount has power loss protection and provides power outputs for the controlled lens and camera, as well as an auxiliary control output for the user, making it a comprehensive remote control solution for demanding outdoor applications.

Specification

Housing

Material: Aluminum, ABS

Application: Outdoor, Indoor

Operating temp. / relative humidity: -25°C ~ +60°C / <90%

Rotation parameters

Rotation speed: Horizontal: 7°/s, Vertical: 2°/s

Rotation range: Horizontal: 350° Vertical: 70°

Maximum load: Horizontally 25kg, Vertically 12kg

Built-in RS-485 controller

YES

The controller supports rotating the mount and can additionally control a MOTO ZOOM lens.

Standard RS-485 settings: Protocol: PELCO-D, Speed: 2400, Address: 1 (settings can be changed).

Inputs, outputs

6-core cable: Power e.g. camera 12V +, 12V - , Zoom, Focus, IRIS, COM

Cable: 4-core: Output 24V AC, 2x AUX auxiliary cable

Coaxial cable: Video (core +, ground -)

Terminal at the bottom of the housing: Input 24V AC, RS485+ , RS485-, Video + , Video -

8-pin switch (RS485 parameter settings): Rotation speed, address

4-pin switch (RS485 parameter settings): Protocol

Description of inputs and outputs:

Main Input / Control Connector

Pin 1: Power 24V AC (Input)

Pin 2: Power 24V AC (Input)

Pin 3: RS485 + (Control data input/output)

Pin 4: RS485 - (Control data input/output)

Pin 5: Video + (Pass-through video signal output from camera)

Pin 6: Video - (Pass-through video signal output from camera - ground)

Wiring Harness for Camera/Lens (Lens Connection - 6 cores):

Pin 1 (Black): 12V DC - (Power output for camera/lens)

Pin 2 (Red): 12V DC + (Power output for camera/lens)

Pin 3 (Orange): Zoom (Control output for lens)

Pin 4 (Yellow): Focus (Control output for lens)

Pin 5 (Green): Iris (Control output for lens)

Pin 6 (Blue): COM (Common ground for Zoom/Focus/Iris control signals)

Power/Auxiliary Wiring Harness (4 cores - partially overlaps with Main Connector):

Pin 1 (Yellow): 24V AC (Power input - corresponds to Pin 1 of Main Connector)

Pin 2 (Orange): 24V AC (Power input - corresponds to Pin 2 of Main Connector)

Pin 3 (Red): AUX (Auxiliary output)

Pin 4 (Black): AUX (Auxiliary output)

Video Wiring Harness (Coaxial cable - partially overlaps with Main Connector):

Pin 1 (Core): Video + (Pass-through video signal input/output - corresponds to Pin 5 of Main Connector)

Pin 2 (Ground/Shield): Video - (Pass-through video signal input/output - corresponds to Pin 6 of Main Connector)

Configuration (Decoding Switch - DIP Switches):

DECODER TD (8 switches): Setting RS485 Address (Address code) and Baud rate.

FUNCT (4 switches): Setting RS485 Protocol (Protocol).

Power supply

Power adapter: AC 24V

Power consumption: 15W

Built-in transformer from 24V AC to 12V DC to power the camera or/and MOTO-ZOOM lens

Additional Information

Using mounts is the simplest way to increase a camera's field of view. Along with manual controllers and "moto-zoom" lenses, they allow for precise tracking of a specific event. A stationary camera is always directed at a specific area, and its setting does not always allow for discerning details in the observed image. If we place a camera on a mount and additionally equip it with a "moto-zoom" lens, it will be possible to control the field of view

Additional accessories

To rotate the mount, a device supporting RS485 communication can be used

This can be done using a keyboard: ACTii AC4322

DVR recorder: ACTii AC8512

Computer software (supporting control via RS485, there are also free applications). You must use a USB - RS485 adapter: ACTii AC2248

Certificates and standards

CE , ROHS

Dimensions, Weight

Product dimensions: 190 x 190 x 260 mm (D x W x H)

Package dimensions: 250 x 300 x 350 mm (D x W x H)

Product weight: 3067 g

Weight with packaging: 3493 g
