- New

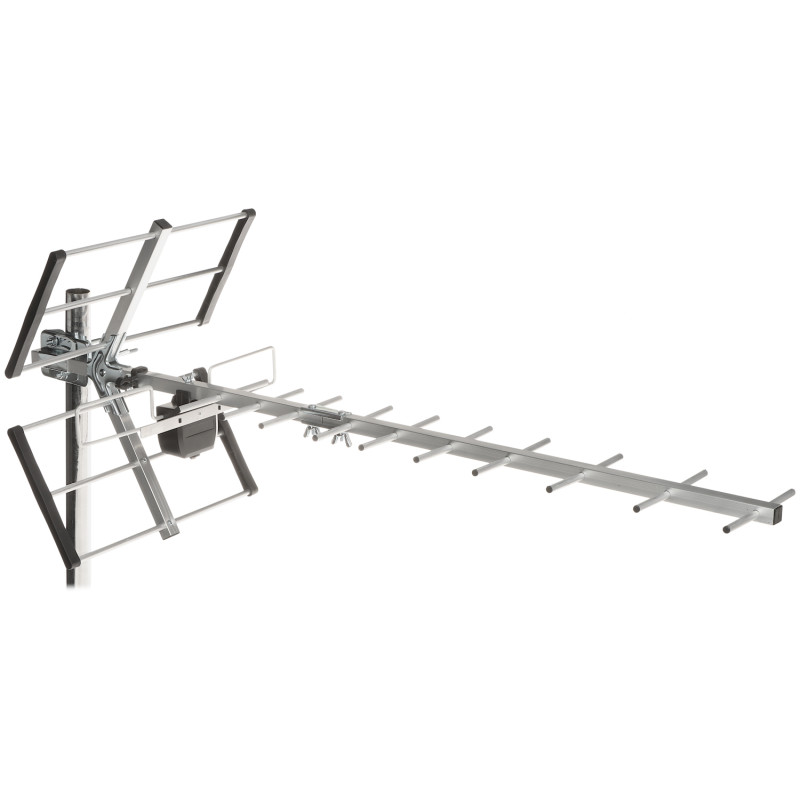

UHF DVB-T2 directional antenna LTE 5G filter active passive 27dB gain H/V polarization Dipol SMART-CITY
zł141.76
Tax included
The SMART-CITY directional antenna is a technologically advanced device dedicated to the reception of digital terrestrial television DVB-T and the latest DVB-T2 HEVC standard. This product stands out from the competition with its remarkable operational flexibility, offering the user two modes of operation: passive and active. In situations where the signal from the transmitter is strong enough, the antenna works without additional power, generating a gain of up to 10 dBi. In places with difficult wave propagation or significant distance from the transmitting station, simply connect a 12V power supply to activate a powerful amplifier increasing the gain up to 27 dB.
One of the most important advantages of the SMART-CITY antenna is the built-in LTE filter. In the era of widespread access to high-speed mobile internet, 4G and 5G LTE signals often interfere with television reception. Thanks to the use of a precise filter, the antenna effectively separates the television band from the cellular one, eliminating pixelation and image interruptions. Another innovative solution is the modular construction of the main profile. The user has the option of assembling the antenna in full size (1040 mm) for maximum performance or in a shortened version, which is invaluable on balconies, terraces, or attics with limited space.
The construction based on 17 elements ensures high directivity, which allows for precise aiming at the transmitter and minimizing unwanted signal reflections. The assembly of the device has been simplified to an absolute minimum – the snap-fit system allows the antenna to be prepared for operation in just a few minutes without the use of any tools. A solid mast mount allows for installation in both horizontal and vertical polarization, adapting to local transmission parameters in a given region. By choosing the SMART-CITY antenna, you are investing in stable reception of your favourite programmes in the highest image and sound quality, regardless of external conditions and radio interference.
UHF DVB-T2 directional antenna LTE 5G filter active passive 27dB gain H/V polarization
Model: Dipol SMART-CITY
EAN: 6931240073339 SKU: 931073338
- Reception of channels 21 - 48 in the UHF band
- Operation in passive mode (no power supply) or active mode (with power supply)
- High energy gain up to 27 dB in active mode
- Integrated LTE filter eliminating mobile network interference
- 17-element design ensuring high directivity
- Possibility of mounting in horizontal or vertical polarization
- Divided main profile allowing for assembly in a shortened variant
- Quick and simple assembly without the use of tools
- Built-in antenna amplifier with bypass function
- Solid construction resistant to weather conditions
Description
The SMART-CITY directional antenna is a technologically advanced device dedicated to the reception of digital terrestrial television DVB-T and the latest DVB-T2 HEVC standard. This product stands out from the competition with its remarkable operational flexibility, offering the user two modes of operation: passive and active. In situations where the signal from the transmitter is strong enough, the antenna works without additional power, generating a gain of up to 10 dBi. In places with difficult wave propagation or significant distance from the transmitting station, simply connect a 12V power supply to activate a powerful amplifier increasing the gain up to 27 dB.
One of the most important advantages of the SMART-CITY antenna is the built-in LTE filter. In the era of widespread access to high-speed mobile internet, 4G and 5G LTE signals often interfere with television reception. Thanks to the use of a precise filter, the antenna effectively separates the television band from the cellular one, eliminating pixelation and image interruptions. Another innovative solution is the modular construction of the main profile. The user has the option of assembling the antenna in full size (1040 mm) for maximum performance or in a shortened version, which is invaluable on balconies, terraces, or attics with limited space.
The construction based on 17 elements ensures high directivity, which allows for precise aiming at the transmitter and minimizing unwanted signal reflections. The assembly of the device has been simplified to an absolute minimum – the snap-fit system allows the antenna to be prepared for operation in just a few minutes without the use of any tools. A solid mast mount allows for installation in both horizontal and vertical polarization, adapting to local transmission parameters in a given region. By choosing the SMART-CITY antenna, you are investing in stable reception of your favourite programmes in the highest image and sound quality, regardless of external conditions and radio interference.
Specification
Antenna type
Directional Yagi type, 17-element
Application
Reception of digital terrestrial television DVB-T / DVB-T2 in HD and 4K UHD quality
Supported band
UHF (Ultra High Frequency) covering IV and V television bands
Channel range
Channels 21 to 48 (in accordance with 700MHz band refarming)
Energy gain (passive mode)
From 5 dBi to 10 dBi (no power supply required)
Energy gain (active mode)
From 22.5 dB to 27 dB (requires external 12V power supply)
Amplifier power supply
12V DC (power supply not included); built-in bypass allows passive operation when there is no power
Interference filtering
Built-in LTE filter effectively cutting off signals above channel 48 (4G/5G networks)
Polarization
Universal: Horizontal (H) or Vertical (V) depending on the mounting method
Output impedance
75 Ohm (standard coaxial connector)
Mechanical construction
Aluminium and plastics resistant to UV radiation and corrosion
Mounting variants
Possibility of full or shortened assembly thanks to the divided main profile
Mounting system
Tool-free quick assembly system for elements
Connector
F-type socket, placed underneath for protection against rain
Dimensions and Warranty
1040 x 355 x 405 mm; 2-year manufacturer's warranty
Contents
1x SMART-CITY directional antenna (structural elements)
1x Antenna box with amplifier and LTE filter
1x Mast mount (U-bolt)
1x Assembly manual
Dimensions, Weight
Product dimensions: 405 x 1040 x 355 mm (D x W x H)
Packaging dimensions: 75 x 575 x 215 mm (D x W x H)
Product weight: 1000 g
Weight with packaging: 1206 g
