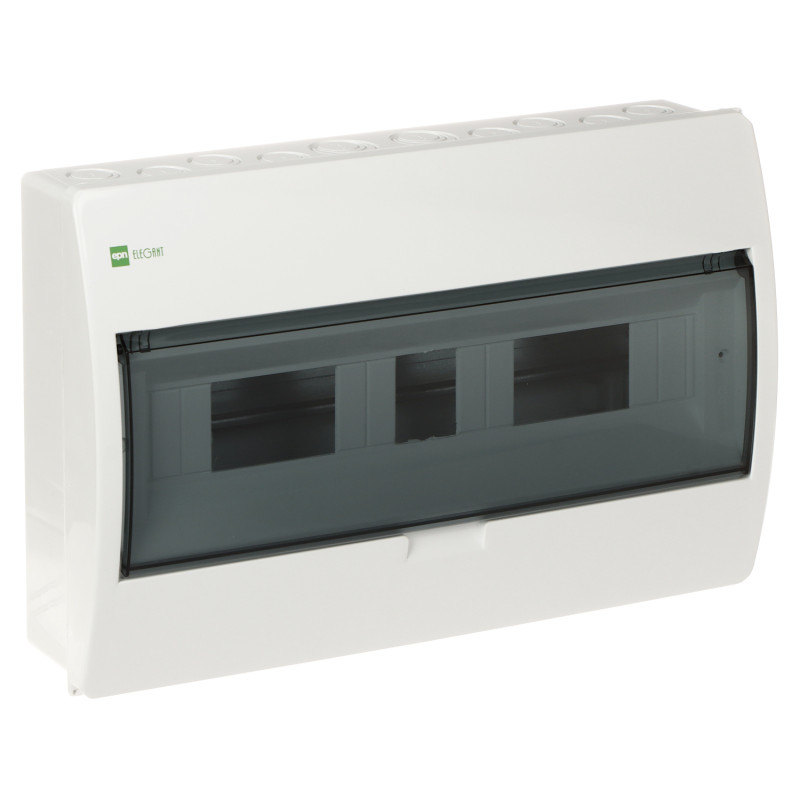

Surface Mounted Electrical Distribution Board 18 Modules IP40 Transparent Door TH35 Rail N+PE Elektro-Plast Nasielsk ELEGANT-1X1
zł142.40
Tax included
The ELEGANT series surface mounted electrical distribution board is a professional solution dedicated to the safe and aesthetic installation of modular equipment in domestic and industrial installations. The product features a robust construction made of high-quality white plastic, ensuring long-term durability and high resistance to mechanical damage. With an IP40 protection rating, the distribution board is ideal for indoor applications, effectively protecting installed components from dust and accidental contact.
One of the key advantages of this model is the transparent door, which allows for instant inspection of the status of equipment and fuses without the need to open the enclosure. Inside, there is one row adapted for mounting up to 18 modules with a standard width of 17.5 mm each. The manufacturer has ensured maximum convenience for the installer by equipping the set with a removable TH 35 bracket (DIN rail), which significantly facilitates the mounting of equipment and cable routing. Additionally, the set includes factory-fitted N and PE terminal blocks with varying cross-sections (8 x 10 mm² and 11 x 16 mm²), allowing for efficient, safe, and organised electrical connections.
The product meets rigorous safety standards IEC/EN 62208 and IEC/EN 60670-24, guaranteeing full reliability in daily operation. The aesthetic appearance and compact dimensions make the distribution board blend perfectly with modern interiors, serving as a central and safe point of the home electrical installation. By choosing this model, you gain the certainty of installation protection, ease of assembly, and the possibility of future system expansion with additional modules. It is a product that combines functionality, safety, and modern design, meeting the expectations of even the most demanding installers.
Surface Mounted Electrical Distribution Board 18 Modules IP40 Transparent Door TH35 Rail N+PE
Model: Elektro-Plast Nasielsk ELEGANT-1X18/NT/W/EPN
EAN: 6931240037843 SKU: 931037845
- 1-row surface mounted electrical distribution board
- Capacity of 18 modules (17.5 mm)
- Transparent door for easy monitoring of equipment status
- Removable TH 35 bracket (DIN rail) included
- N and PE terminal blocks included
- High protection rating IP40
- Made of durable white plastic
- Compliant with IEC/EN 62208 and IEC/EN 60670-24 standards
Description
The ELEGANT series surface mounted electrical distribution board is a professional solution dedicated to the safe and aesthetic installation of modular equipment in domestic and industrial installations. The product features a robust construction made of high-quality white plastic, ensuring long-term durability and high resistance to mechanical damage. With an IP40 protection rating, the distribution board is ideal for indoor applications, effectively protecting installed components from dust and accidental contact.
One of the key advantages of this model is the transparent door, which allows for instant inspection of the status of equipment and fuses without the need to open the enclosure. Inside, there is one row adapted for mounting up to 18 modules with a standard width of 17.5 mm each. The manufacturer has ensured maximum convenience for the installer by equipping the set with a removable TH 35 bracket (DIN rail), which significantly facilitates the mounting of equipment and cable routing. Additionally, the set includes factory-fitted N and PE terminal blocks with varying cross-sections (8 x 10 mm² and 11 x 16 mm²), allowing for efficient, safe, and organised electrical connections.
The product meets rigorous safety standards IEC/EN 62208 and IEC/EN 60670-24, guaranteeing full reliability in daily operation. The aesthetic appearance and compact dimensions make the distribution board blend perfectly with modern interiors, serving as a central and safe point of the home electrical installation. By choosing this model, you gain the certainty of installation protection, ease of assembly, and the possibility of future system expansion with additional modules. It is a product that combines functionality, safety, and modern design, meeting the expectations of even the most demanding installers.
Specification
Product type
Surface mounted electrical distribution board designed for mounting modular equipment indoors
Product series
ELEGANT - product line characterised by modern design and high functionality
Number of rows
1-row design facilitating cable organisation and quick access
Modular capacity
18 modules with a standard width of 17.5 mm each, allowing for the installation of extensive protection systems
Mounting method
Surface mounted (NT) - quick and simple installation directly on the wall surface without chiselling
Protection rating
IP40 - provides protection against the ingress of solid objects larger than 1 mm, ideal for dry rooms
Door
Transparent, made of polycarbonate, allowing constant viewing of circuit breaker status without opening the enclosure
Mounting rail
TH 35 bracket (DIN rail), fully removable, which facilitates wiring of equipment outside the distribution board
N terminal blocks
1 piece equipped with 8 x 10 mm² and 11 x 16 mm² terminals for safe neutral potential distribution
PE terminal blocks
1 piece equipped with 8 x 10 mm² and 11 x 16 mm² terminals for effective installation earthing
Enclosure material
Durable plastic resistant to UV radiation and high temperature
Enclosure colour
White (RAL 9003) with a smooth surface, easy to keep clean
Compliance with standards
Full compliance with European safety standards IEC/EN 62208 and IEC/EN 60670-24
Operating temperature
Adapted for operation in standard residential, office, and warehouse conditions
Contents
1x Complete surface mounted distribution board enclosure
1x TH 35 mounting rail
1x N terminal block (blue)
1x PE terminal block (green)
Set of blanking plates and mounting screws
Dimensions, Weight
Product dimensions: 98 x 410 x 262 mm (D x W x H)
Packaging dimensions: 112 x 415 x 263 mm (D x W x H)
Product weight: 1270 g
Weight with packaging: 1424 g
