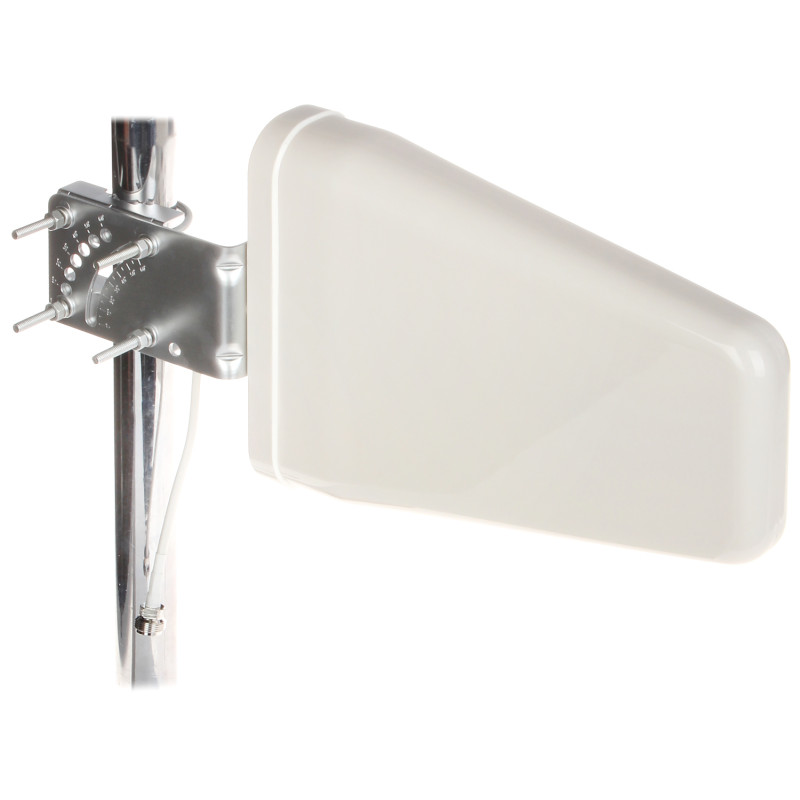

GSM UMTS LTE Directional Panel Antenna Signal Booster N-Female Outdoor 9.5dBi High Gain Trans-Data ATK-K1
zł157.59
Tax included
The ATK-K1 panel antenna is a high-class directional transceiver device designed to optimize the operation of cellular signal boosting systems, such as GSM and UMTS repeaters. Thanks to its wide frequency range, covering the 806-960 MHz and 1710-2500 MHz bands, this product is extremely versatile and allows for effective coverage improvement in areas where the operator's signal is weak, unstable, or completely absent.
A key advantage of the antenna is its high energy gain, reaching up to 8.2 dBi for the GSM band and an impressive 9.5 dBi for the UMTS band. This characteristic allows for precise aiming of the device at the operator's base station (BTS), which significantly translates into voice call clarity as well as LTE/3G data transmission stability and speed. The panel design provides not only excellent technical parameters but also an aesthetic appearance and discreet installation, which is particularly important for installations on residential, office, or industrial building facades.
The device features vertical polarization and a very low Voltage Standing Wave Ratio (VSWR < 1.5), which guarantees minimal signal loss and the highest operating efficiency across the entire frequency spectrum. A solid, sealed housing made of UV-resistant plastic protects internal components from adverse weather conditions, such as rain, snow, or strong sunlight, ensuring reliability for many years. Antenna installation is extremely simple and quick thanks to the included mounting elements, which allow for stable device placement on an antenna mast. Small dimensions ensure the antenna does not dominate its surroundings, maintaining the object's aesthetics while providing professional radio communication parameters.
GSM UMTS LTE Directional Panel Antenna Signal Booster N-Female Outdoor 9.5dBi High Gain
Model: Trans-Data ATK-K1
EAN: 6931240094716 SKU: 931094718
- Wide operating range: 806-960 MHz and 1710-2500 MHz
- High energy gain up to 9.5 dBi for UMTS band
- Low Voltage Standing Wave Ratio VSWR < 1.5
- Vertical polarization ideal for GSM systems
- Robust housing resistant to weather conditions and UV
- Very simple and quick mast mounting
- Compact dimensions and aesthetic appearance
- N-Female connector ensuring professional connection
Description
The ATK-K1 panel antenna is a high-class directional transceiver device designed to optimize the operation of cellular signal boosting systems, such as GSM and UMTS repeaters. Thanks to its wide frequency range, covering the 806-960 MHz and 1710-2500 MHz bands, this product is extremely versatile and allows for effective coverage improvement in areas where the operator's signal is weak, unstable, or completely absent.
A key advantage of the antenna is its high energy gain, reaching up to 8.2 dBi for the GSM band and an impressive 9.5 dBi for the UMTS band. This characteristic allows for precise aiming of the device at the operator's base station (BTS), which significantly translates into voice call clarity as well as LTE/3G data transmission stability and speed. The panel design provides not only excellent technical parameters but also an aesthetic appearance and discreet installation, which is particularly important for installations on residential, office, or industrial building facades.
The device features vertical polarization and a very low Voltage Standing Wave Ratio (VSWR < 1.5), which guarantees minimal signal loss and the highest operating efficiency across the entire frequency spectrum. A solid, sealed housing made of UV-resistant plastic protects internal components from adverse weather conditions, such as rain, snow, or strong sunlight, ensuring reliability for many years. Antenna installation is extremely simple and quick thanks to the included mounting elements, which allow for stable device placement on an antenna mast. Small dimensions ensure the antenna does not dominate its surroundings, maintaining the object's aesthetics while providing professional radio communication parameters.
Specification
Frequency range
The device operates in two wide ranges: 806 - 960 MHz (lower band) and 1710 - 2500 MHz (upper band), which covers GSM, UMTS, and LTE standards.
Antenna connector
A professional 'N' type connector (N-Female) is used, which is characterized by low attenuation and high mechanical resistance.
GSM energy gain
Maximum signal gain in the GSM band (806-960 MHz) is 8.2 dBi, which allows for significant coverage improvement in difficult conditions.
UMTS energy gain
Maximum signal gain in the UMTS/LTE band (1710-2500 MHz) is 9.5 dBi, ensuring fast and stable data transmission.
Impedance
Standard wave impedance is 50 Ohm, which ensures full compatibility with most modems, routers, and repeaters available on the market.
Polarization
Vertical - optimized for terrestrial mobile network base stations.
VSWR ratio
A value below 1.5 guarantees excellent antenna matching to the transmission line and minimizes signal power loss.
Antenna type
Panel, directional antenna - focuses radio energy in one direction, which allows for the elimination of interference from other sides.
Application
Designed for cellular signal boosting systems, cooperation with GSM/UMTS repeaters, and external modems.
Mounting
Adapted for outdoor mounting on vertical masts using the included U-bolt brackets.
Housing construction
Made of high-quality plastic resistant to UV radiation and extreme ambient temperatures.
Radiation angle
Optimized directional characteristic ensuring long range while maintaining an appropriate main beam width.
Weight and mobility
Low self-weight (610g) facilitates installation on lightweight support structures and masts with smaller diameters.
Warranty
The product is covered by a 2-year manufacturer's warranty (24 months), which confirms its high quality of workmanship.
Contents
1x Panel antenna
1x Complete mast mounting kit (brackets, screws)
Dimensions, Weight
Product dimensions: 65 x 210 x 293 mm (D x W x H)
Packaging dimensions: 80 x 220 x 340 mm (D x W x H)
Product weight: 610 g
Weight with packaging: 888 g
