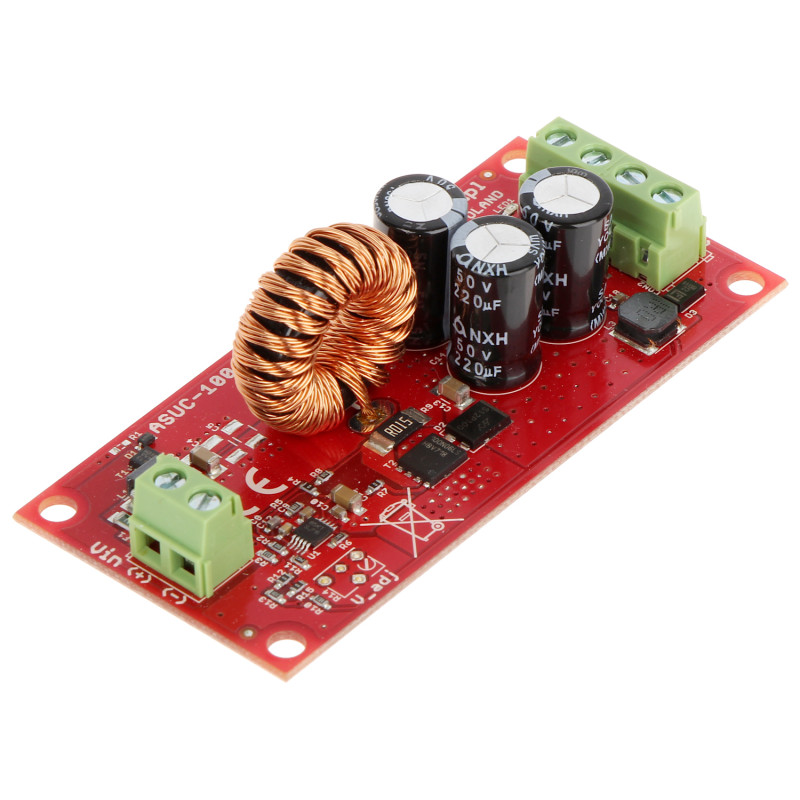

DC/DC Step-up Voltage Converter 10-30V to 48V 120W Power Supply Module Voltage Stabilizer ATTE ASUC-100-480-OF
zł178.47
Tax included
The ASUC-100-480-OF converter module is an advanced DC/DC step-up electronic device designed for precise DC voltage boosting. It is an ideal solution for professional IP monitoring systems and telecommunications installations where there is a need to obtain a stable 48V DC voltage from typical 12V or 24V sources, such as batteries or buffer power supplies. Thanks to its wide input voltage range (10-30V), the module is extremely versatile and allows for powering PoE standard devices directly from lower voltage systems.
A key advantage of the product is its high current efficiency, reaching 2.5A, and an impressive output power of up to 120W (at 24V input). The Open Frame design (without housing) has been optimized for integration within larger systems, control cabinets, or installation boxes, which significantly saves space. The module is characterized by very low heat emission due to high energy efficiency, which translates into long and trouble-free operation even in demanding conditions.
Installation safety is guaranteed by built-in input reverse polarity protection, which eliminates the risk of damaging the module during assembly. The product is made of the highest quality components, which is confirmed by a 3-year manufacturer's warranty. By choosing the ASUC-100-480-OF, you gain the certainty of stable power for your network devices, cameras, and other receivers requiring 48V voltage, while maintaining the simplicity and economy of the entire emergency power system.
DC/DC Step-up Voltage Converter 10-30V to 48V 120W Power Supply Module Voltage Stabilizer
Model: ATTE ASUC-100-480-OF
EAN: 6931240075111 SKU: 931075119
- Converter type: Step-up DC/DC
- Wide input voltage range: 10V ... 30V DC
- Stable output voltage: 48V DC
- Maximum output power: up to 120W (at 24V input)
- High output current: up to 2.5A
- Input reverse polarity protection
- Open Frame design for easy integration
- Two power outputs for easier power distribution
- High energy efficiency
- Long warranty period: 3 years
Description
The ASUC-100-480-OF converter module is an advanced DC/DC step-up electronic device designed for precise DC voltage boosting. It is an ideal solution for professional IP monitoring systems and telecommunications installations where there is a need to obtain a stable 48V DC voltage from typical 12V or 24V sources, such as batteries or buffer power supplies. Thanks to its wide input voltage range (10-30V), the module is extremely versatile and allows for powering PoE standard devices directly from lower voltage systems.
A key advantage of the product is its high current efficiency, reaching 2.5A, and an impressive output power of up to 120W (at 24V input). The Open Frame design (without housing) has been optimized for integration within larger systems, control cabinets, or installation boxes, which significantly saves space. The module is characterized by very low heat emission due to high energy efficiency, which translates into long and trouble-free operation even in demanding conditions.
Installation safety is guaranteed by built-in input reverse polarity protection, which eliminates the risk of damaging the module during assembly. The product is made of the highest quality components, which is confirmed by a 3-year manufacturer's warranty. By choosing the ASUC-100-480-OF, you gain the certainty of stable power for your network devices, cameras, and other receivers requiring 48V voltage, while maintaining the simplicity and economy of the entire emergency power system.
Specification
Device type
DC/DC step-up voltage converter module
Number of power inputs
1 DC input
Number of power outputs
2 DC outputs (parallel)
Input voltage
Range from 10 V to 30 V DC (direct current)
Output voltage
Fixed 48 V DC (tolerance according to technical specification)
Voltage regulation
No output voltage adjustment possible (fixed 48V)
Maximum output current
2.5 A (maximum total load)
Maximum output power
120 W at 24 V DC input; 80 W at 12 V DC input
Electronic protections
Input reverse polarity protection (protects the circuit against incorrect connection)
Mechanical design
Open Frame type (module for integration), no external protective housing
System efficiency
High energy conversion efficiency minimizing module heating
Application
IP CCTV systems, PoE power supply, telecommunication systems, industrial automation
Operating conditions
Designed for operation inside enclosures or rooms (IP00)
Warranty and manufacturer
Manufacturer: ATTE; Warranty period: 3 years (36 months)
Software
The device is a purely hardware module. It does not have built-in firmware or a digital management interface. It operates on the principle of analog-digital pulse DC voltage conversion. No software configuration is required, making the module ready for operation immediately after correctly connecting the power cables according to the polarity described on the PCB laminate.
Contents
1x ASUC-100-480-OF converter module
1x Set of mounting/spacer pins
Dimensions, Weight
Product dimensions: 27 x 83 x 39 mm (D x W x H)
Package dimensions: 50 x 125 x 85 mm (D x W x H)
Product weight: 37 g
Weight with packaging: 71 g
