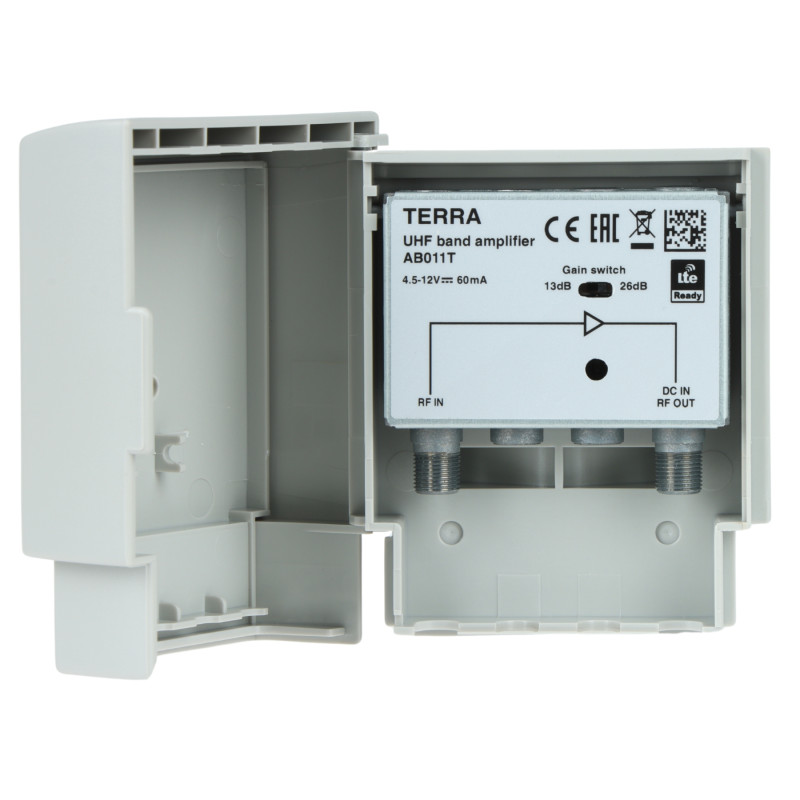

DVB-T2 LTE Mast Antenna Amplifier 470-694MHz 26dB 5V-12V TERRA AB-011T
zł176.71
Tax included
The AB-011T mast amplifier from the renowned Terra brand is a professional solution designed for modern DVB-T and DVB-T2 terrestrial television installations. This device is ideal for individual installations, such as single-family homes, and small collective systems serving up to a dozen subscriber outlets. Thanks to its high maximum output signal level of 108 dBµV, the amplifier guarantees stable and clear image and sound reception even when the signal is split among many receivers.
One of the key advantages of this model is its extremely low power consumption of just 60 mA. This is achieved through the use of an innovative electronic circuit powered by 5 V, which is fully compliant with the DVB-T standard (EN 300 744). In practice, this means the amplifier can be powered directly from the tuner or TV, eliminating the need for additional power supplies and significantly simplifying the entire installation while reducing costs and cabling.
The device features a built-in LTE filter that effectively eliminates interference from mobile telephony bands (including 5G), ensuring trouble-free reception in difficult urban conditions. A solid, die-cast housing placed inside a compact plastic cover protects the electronics from atmospheric factors, allowing for safe mounting directly on the antenna mast. The ability to switch gain between 13 dB and 26 dB allows for precise adjustment of operating parameters to the input signal strength at any given location.
Product advantages:
- High gain up to 26 dB with step adjustment.
- Very low noise figure below 1.3 dB.
- 5V power supply directly from the DVB-T receiver or 12V from a power adapter.
- Effective protection against LTE/5G interference.
- Weather-resistant external housing.
- Simple mast mounting using the included strap.
DVB-T2 LTE Mast Antenna Amplifier 470-694MHz 26dB 5V-12V
Model: TERRA AB-011T
EAN: 6931240017784 SKU: 931017784
- Designed for individual and small collective installations
- Maximum output signal level 108 dBµV
- Low power consumption of only 60 mA
- 5V (DVB-T compliant) or 12V power supply
- Built-in LTE filter to eliminate cellular band interference
- Selectable gain: 13 dB or 26 dB
- Solid, die-cast shielding housing inside a plastic cover
- Wide operating temperature range from -20°C to +50°C
Description
The AB-011T mast amplifier from the renowned Terra brand is a professional solution designed for modern DVB-T and DVB-T2 terrestrial television installations. This device is ideal for individual installations, such as single-family homes, and small collective systems serving up to a dozen subscriber outlets. Thanks to its high maximum output signal level of 108 dBµV, the amplifier guarantees stable and clear image and sound reception even when the signal is split among many receivers.
One of the key advantages of this model is its extremely low power consumption of just 60 mA. This is achieved through the use of an innovative electronic circuit powered by 5 V, which is fully compliant with the DVB-T standard (EN 300 744). In practice, this means the amplifier can be powered directly from the tuner or TV, eliminating the need for additional power supplies and significantly simplifying the entire installation while reducing costs and cabling.
The device features a built-in LTE filter that effectively eliminates interference from mobile telephony bands (including 5G), ensuring trouble-free reception in difficult urban conditions. A solid, die-cast housing placed inside a compact plastic cover protects the electronics from atmospheric factors, allowing for safe mounting directly on the antenna mast. The ability to switch gain between 13 dB and 26 dB allows for precise adjustment of operating parameters to the input signal strength at any given location.
Product advantages:
- High gain up to 26 dB with step adjustment.
- Very low noise figure below 1.3 dB.
- 5V power supply directly from the DVB-T receiver or 12V from a power adapter.
- Effective protection against LTE/5G interference.
- Weather-resistant external housing.
- Simple mast mounting using the included strap.
Specification
Frequency range
470 MHz ... 694 MHz - covers the full UHF band intended for terrestrial television after the digital dividend
Gain
13 dB / 26 dB - selectable gain level via built-in switch allows for optimal adjustment to local conditions
Noise figure
< 1.3 dB - very low self-noise level guarantees high signal quality even at low input levels
Return loss
> 10 dB - ensures stable operation and minimizes signal reflections within the antenna installation
Number of inputs/outputs
1 antenna input / 1 signal output - standard configuration for mast amplifiers
Maximum output level (IMA3 60dB)
108 dBµV - allows for powering an extensive home installation consisting of multiple subscriber outlets
Shielding
Full metal shielding - die-cast housing provides high resistance to external electromagnetic interference
LTE filter
Built-in LTE 700 filter - effectively cuts off the band above 700 MHz, eliminating interference from 5G and LTE network transmitters
Impedance
75 Ω - standard characteristic impedance for television and radio systems
Connector type
F-type connectors - ensure a secure and durable mechanical and electrical connection using standard plugs
Housing construction
Double housing - internal metal (die-cast) and external UV-resistant plastic
Mounting
Universal - adapted for mounting on an antenna mast using a strap or directly to a wall using screws
Operating temperature
-20 °C ... 50 °C - wide temperature range allows for trouble-free operation in harsh outdoor conditions all year round
Power supply
4.5 V ... 12 V DC / 60 mA - can be powered directly from a DVB-T tuner (5V) or an external power supply (12V) via coaxial cable
Warranty
2 years - full manufacturer protection for the end user provided by an authorized service center
Contents
1x AB-011T mast amplifier
1x Mounting strap for mast installation
1x User manual
Dimensions, Weight
Product dimensions: 44 x 106 x 88 mm (D x W x H)
Packaging dimensions: 50 x 115 x 95 mm (D x W x H)
Product weight: 172 g
Weight with packaging: 196 g
