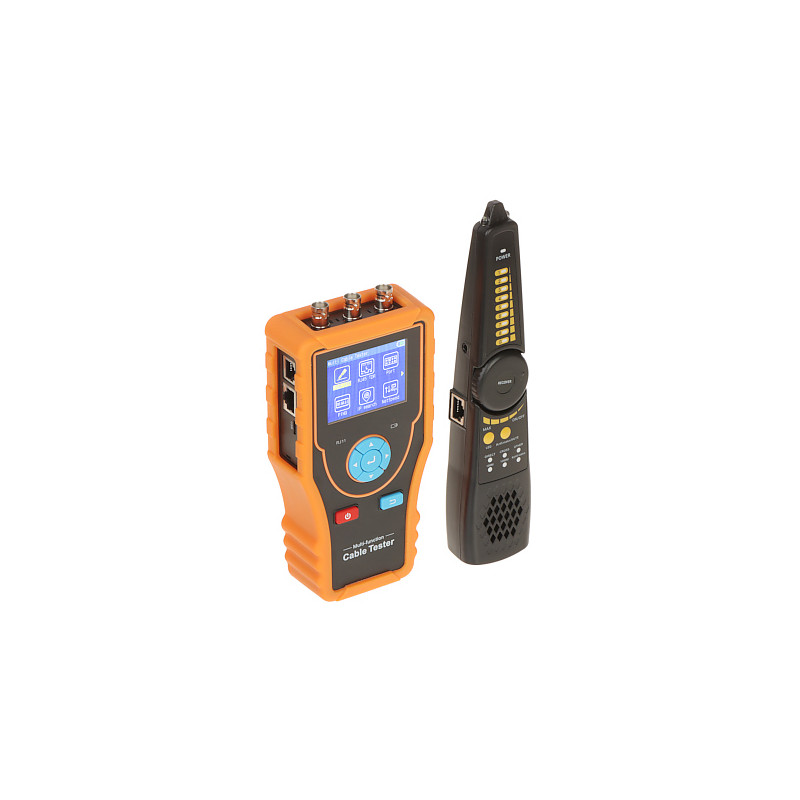

CS-NT24-PRO Cable Tester with TDR Reflectometer and HD Video Signal Measurement CS-NT24-PRO
zł942.67
Tax included
The CS-NT24-PRO tester is an advanced, professional device designed for comprehensive diagnostics of telecommunications cabling and CCTV systems. The device enables precise measurement of cable continuity, identification of UTP cable types, and detection of telephone line status. The tester supports a wide range of cables, including twisted pair (UTP/STP), telephone, and coaxial cables. Thanks to the built-in TDR reflectometer, the user can quickly locate the point of a break or short circuit in a cable, as well as measure its length and attenuation. The device also offers an HD video signal level measurement function for TVI, CVI, AHD, and CVBS standards, making it an essential tool for surveillance system installers. An additional advantage is the built-in PING test, which allows for verifying the correct operation of the Ethernet port in IP cameras and other network devices, as well as scanning the network to find an IP address. The device is equipped with a clear 2.4-inch LCD display, which ensures comfortable operation in all conditions. Power is supplied by an efficient Li-Ion battery, which allows for up to 16 hours of operation on a single charge. The set also includes a handy case that protects the device during transport and field work. This is a reliable tool that significantly speeds up the process of installing and servicing networks and video systems.
CS-NT24-PRO Cable Tester with TDR Reflectometer and HD Video Signal Measurement
Model: CS-NT24-PRO
EAN: 6931240094556 SKU: 931094556
- Built-in TDR reflectometer for cable fault location
- HD video signal level measurement (TVI/CVI/AHD/CVBS)
- PING test and IP network scanning
- Network port and duplex mode identification
- Specific wire tracing in a bundle
- Clear 2.4-inch LCD display
- Long battery life (up to 16h)
- Handy protective case included
Description
The CS-NT24-PRO tester is an advanced, professional device designed for comprehensive diagnostics of telecommunications cabling and CCTV systems. The device enables precise measurement of cable continuity, identification of UTP cable types, and detection of telephone line status. The tester supports a wide range of cables, including twisted pair (UTP/STP), telephone, and coaxial cables. Thanks to the built-in TDR reflectometer, the user can quickly locate the point of a break or short circuit in a cable, as well as measure its length and attenuation. The device also offers an HD video signal level measurement function for TVI, CVI, AHD, and CVBS standards, making it an essential tool for surveillance system installers. An additional advantage is the built-in PING test, which allows for verifying the correct operation of the Ethernet port in IP cameras and other network devices, as well as scanning the network to find an IP address. The device is equipped with a clear 2.4-inch LCD display, which ensures comfortable operation in all conditions. Power is supplied by an efficient Li-Ion battery, which allows for up to 16 hours of operation on a single charge. The set also includes a handy case that protects the device during transport and field work. This is a reliable tool that significantly speeds up the process of installing and servicing networks and video systems.
Specification
Tested cables
STP / UTP cat. 5, 5e, 6, 6e - RJ45 (8P8C), RJ11 (6P4C), Coaxial cable
Power supply
Tester: Li-Ion battery 3.7V / 2000mAh, USB power adapter DC 5V/2A; Probe: 2 x 1.5V battery, type AA/LR6/FR6
Operating time
Up to 16 hours on a single charge
Charging time
3 hours
Display
2.4 inch LCD, resolution 320 x 240 px
TDR RJ45 test
Measurement of pair status, length, attenuation, reflection coefficient, impedance, and skew. Maximum cable length: 180 m
TDR 2.0 test
Locating cable fault point. Maximum cable length: 1200 m
Network functions
PING test (Ethernet port and IP address verification), IP network scanning, network port and duplex mode identification
Video functions
HD video signal level meter on coaxial cable (TVI/CVI/AHD/CVBS)
Additional functions
Wire identification in a bundle, telephone line status detection, short circuit and break detection, automatic power off (10-120 min)
Warranty
2 years
Contents
1x CS-NT24-PRO Tester
1x Probe
1x USB power adapter
1x Case
Dimensions, Weight
Product dimensions: 40 x 175 x 88 mm (D x W x H)
Package dimensions: 105 x 260 x 145 mm (D x W x H)
Product weight: 450 g
Weight with packaging: 1128 g
