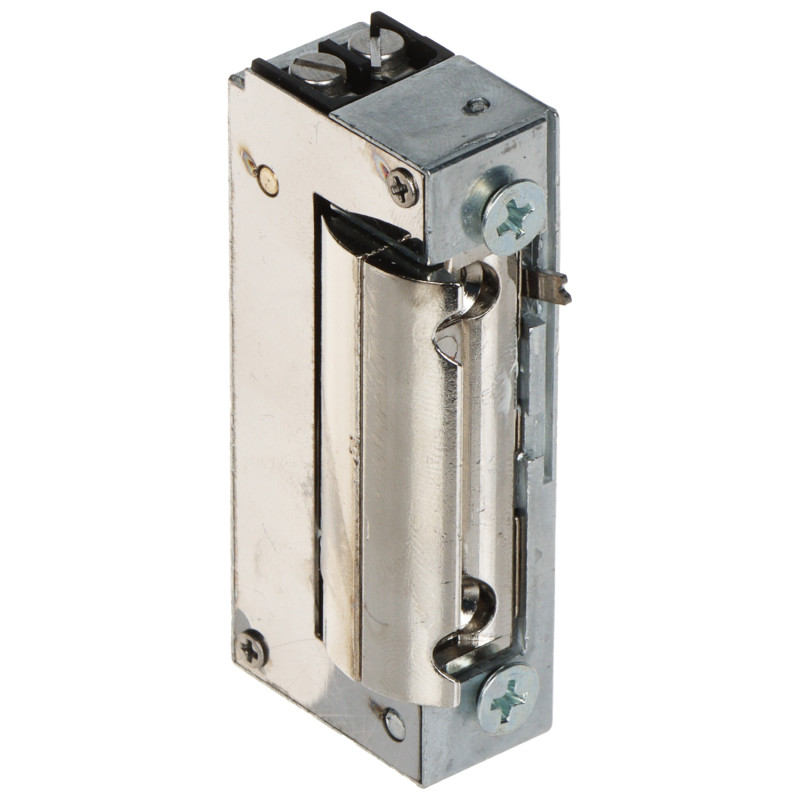

Symmetrical narrow electric strike 16.2mm radial adjustment NC 12V AC/DC bolt for left and right doors BIRA XS12UW
zł164.03
Tax included
The Hartte XS series electric strike is a modern and extremely functional solution dedicated to access control systems, intercom, and video intercom installations. Its key feature distinguishing it from the competition is its extremely narrow design – the device width is only 16.2 mm. This characteristic allows for trouble-free installation in very narrow profiles and door frames where standard, wider electric strikes simply do not fit. Thanks to its fully symmetrical construction, the product is universal and works perfectly in both left and right doors of various types, which significantly facilitates the planning and installation process on site.
The advantage of the XS12UW model is the innovative, radial shape of the strike. During operation, the bolt rotates in such a way that it does not extend beyond the outline of the electric strike housing. In practice, this means that the installer needs to make a smaller opening in the door frame, which not only speeds up the work but also positively affects the aesthetics of the door finish. Additionally, the strike has an adjustment function in the range of up to 3.5 mm, which allows for precise matching of the mechanism to the latch of the handle lock, effectively eliminating any play and ensuring smooth closing of the door leaf.
The product is characterized by very high mechanical strength at the level of 3000 N (which corresponds to about 300 kg of pressure) and an impressive service life, which has been tested for 200,000 cycles of correct opening. This model is equipped with a mechanical latch lock, which is extremely useful in public utility facilities or offices – it allows for temporary release of the bolt permanently, enabling free passage without the need to use a key or card. It is an NC (normally closed) type device, which means it remains locked without power, and opening occurs after applying voltage in the range of 10-14V AC/DC. The solid workmanship of the Polish brand BIRA guarantees long-term and trouble-free operation.
Symmetrical narrow electric strike 16.2mm radial adjustment NC 12V AC/DC bolt for left and right doors
Model: BIRA XS12UW
EAN: 6931240069134 SKU: 931069138
- Extremely narrow profile: only 16.2 mm wide
- Symmetrical design - fits left and right doors
- Radial strike shape - does not extend beyond the lock outline
- Mechanical latch lock (possibility of permanent opening)
- Strike clearance adjustment in the range of 3.5 mm
- High mechanical strength up to 3000 N
- Long service life - tested for 200,000 cycles
- Universal power supply 10-14V AC/DC
- NC operating mode (normally closed)
Description
The Hartte XS series electric strike is a modern and extremely functional solution dedicated to access control systems, intercom, and video intercom installations. Its key feature distinguishing it from the competition is its extremely narrow design – the device width is only 16.2 mm. This characteristic allows for trouble-free installation in very narrow profiles and door frames where standard, wider electric strikes simply do not fit. Thanks to its fully symmetrical construction, the product is universal and works perfectly in both left and right doors of various types, which significantly facilitates the planning and installation process on site.
The advantage of the XS12UW model is the innovative, radial shape of the strike. During operation, the bolt rotates in such a way that it does not extend beyond the outline of the electric strike housing. In practice, this means that the installer needs to make a smaller opening in the door frame, which not only speeds up the work but also positively affects the aesthetics of the door finish. Additionally, the strike has an adjustment function in the range of up to 3.5 mm, which allows for precise matching of the mechanism to the latch of the handle lock, effectively eliminating any play and ensuring smooth closing of the door leaf.
The product is characterized by very high mechanical strength at the level of 3000 N (which corresponds to about 300 kg of pressure) and an impressive service life, which has been tested for 200,000 cycles of correct opening. This model is equipped with a mechanical latch lock, which is extremely useful in public utility facilities or offices – it allows for temporary release of the bolt permanently, enabling free passage without the need to use a key or card. It is an NC (normally closed) type device, which means it remains locked without power, and opening occurs after applying voltage in the range of 10-14V AC/DC. The solid workmanship of the Polish brand BIRA guarantees long-term and trouble-free operation.
Specification
Device type
Professional symmetrical electric strike with reinforced construction, designed for access control systems.
Product series
Hartte XS Series - a product line characterized by minimal external dimensions to facilitate installation in narrow profiles.
Power supply and operating voltage
Wide range of rated voltage from 10 V to 14 V AC/DC, which allows for cooperation with most intercom power supplies on the market.
Current consumption (AC)
480 mA at 12V AC voltage. Alternating current is characterized by changes in instantaneous values at a specific frequency.
Current consumption (DC)
680 mA at 12V DC voltage. Direct current ensures stable operation of the electric strike coil without a buzzing effect.
Operating mode
NC (Normally closed) - the device remains locked without power supply, unlocking occurs after applying an electrical impulse.
Mechanical construction
The radial shape of the strike ensures that during opening, the moving element does not extend beyond the outline of the lock housing, which facilitates installation.
Installation dimensions
Very narrow profile with a width of only 16.2 mm, body height of 67 mm, and installation depth of 28 mm.
Adjustment and fitting
Integrated strike clearance adjustment in the range of up to 3.5 mm, allowing for perfect fit with the main lock tongue in the door.
Mechanical strength
Resistance to static and dynamic pressure acting on the door up to 3000 N, which corresponds to a mass of about 300 kg.
Operational durability
Mechanism laboratory tested for correct operation for a minimum of 200,000 full opening and closing cycles.
Coil electrical parameters
The internal resistance of the system is 17.6 Ohm, which ensures optimal operating parameters and low heating of the element during the impulse.
Application and installation
Fully symmetrical construction, allowing for installation in left and right doors without the need to modify the device.
Housing features
Made of high-quality metal alloys, resistant to corrosion and mechanical damage, natural metallic color.
Contents
1x XS12UW Hartte BIRA electric strike
1x Quick installation and operation manual in Polish
Dimensions, Weight
Product dimensions: 28 x 16 x 67 mm (D x W x H)
Packaging dimensions: 97 x 35 x 28 mm (D x W x H)
Product weight: 136 g
Weight with packaging: 142 g
