- New

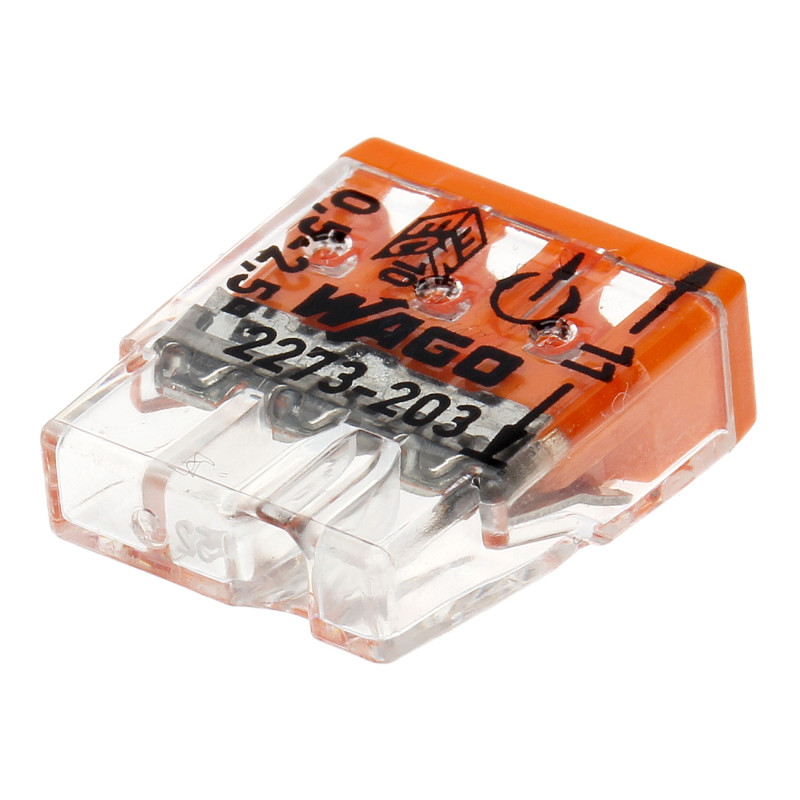

3-wire installation connector for 0.5-2.5mm2 solid wire orange set of 100 pieces Wago WAGO-2273-203*P100
zł145.20
Tax included
The installation connector is a breakthrough solution in the field of electrical wiring, which has revolutionized the work of electricians worldwide. This product has been designed for maximum efficiency, safety, and space-saving in junction boxes. Thanks to the innovative PUSH WIRE spring clamp technology, the installation of solid wires is performed without the use of any tools – simply insert the stripped end of the wire until it stops.
One of the key advantages of this model is its extremely small size. Connectors in this series are over 50% smaller than classic older-generation solutions, allowing for easy packing of a large number of connections even in shallow or heavily crowded installation boxes. The transparent housing made of high-quality polycarbonate serves not only as insulation but also for inspection – the installer can check at any time whether the wire has been inserted to the correct depth and whether the insulation has not been inserted too deeply.
Safety of use is enhanced by clear color coding (orange for the 3-wire model), which facilitates quick identification of the connector type during maintenance work. Additionally, each connector has a dedicated test slot located at the back of the housing. It allows for voltage measurements using standard test probes without the need to disconnect the circuit or disturb the connection structure.
The set contains 100 pieces of the product, which is an economical solution for electrical installation companies and individuals planning a comprehensive renovation of electrical wiring in a home or office. The connectors are resistant to vibrations and shocks, which guarantees contact durability for decades, eliminating the risk of sparking or overheating of contact points. This is a reusable product in the context of modernization – the wire can be removed by simultaneously twisting and pulling it, which allows for the reuse of the connector in a new configuration. By choosing original products, you are assured of compliance with international safety standards and the highest quality of workmanship.
3-wire installation connector for 0.5-2.5mm2 solid wire orange set of 100 pieces
Model: Wago WAGO-2273-203*P100
EAN: 6931240032435 SKU: 931032433
- Supports up to 3 solid wire conductors
- Wide cross-section range from 0.5 mm² to 2.5 mm²
- Transparent housing for visual connection inspection
- Integrated test slot for safe voltage testing
- PUSH WIRE technology for tool-free installation
- High performance: 450V voltage and 24A current
- Compact design saving up to 50% space in the junction box
- Professional set containing 100 connectors
Description
The installation connector is a breakthrough solution in the field of electrical wiring, which has revolutionized the work of electricians worldwide. This product has been designed for maximum efficiency, safety, and space-saving in junction boxes. Thanks to the innovative PUSH WIRE spring clamp technology, the installation of solid wires is performed without the use of any tools – simply insert the stripped end of the wire until it stops.
One of the key advantages of this model is its extremely small size. Connectors in this series are over 50% smaller than classic older-generation solutions, allowing for easy packing of a large number of connections even in shallow or heavily crowded installation boxes. The transparent housing made of high-quality polycarbonate serves not only as insulation but also for inspection – the installer can check at any time whether the wire has been inserted to the correct depth and whether the insulation has not been inserted too deeply.
Safety of use is enhanced by clear color coding (orange for the 3-wire model), which facilitates quick identification of the connector type during maintenance work. Additionally, each connector has a dedicated test slot located at the back of the housing. It allows for voltage measurements using standard test probes without the need to disconnect the circuit or disturb the connection structure.
The set contains 100 pieces of the product, which is an economical solution for electrical installation companies and individuals planning a comprehensive renovation of electrical wiring in a home or office. The connectors are resistant to vibrations and shocks, which guarantees contact durability for decades, eliminating the risk of sparking or overheating of contact points. This is a reusable product in the context of modernization – the wire can be removed by simultaneously twisting and pulling it, which allows for the reuse of the connector in a new configuration. By choosing original products, you are assured of compliance with international safety standards and the highest quality of workmanship.
Specification
Manufacturer
A leading global leader in spring connection technology, guaranteeing the highest quality and reliability of components.
Product series
COMPACT 2273 - a modern line of installation connectors characterized by reduced dimensions while maintaining full current parameters.
Number of terminals
3-wire - allows for the connection of up to three independent wires at a single electrical point.
Clamp type
PUSH WIRE - automatic spring clamp technology that adjusts the clamping force to the wire cross-section, ensuring a gas-tight connection.
Wire cross-section (solid)
0.5 mm² ... 2.5 mm² - a wide range of supported cross-sections allows for universal application in typical building installations.
Rated voltage
450 V - a parameter allowing for safe operation in standard low-voltage networks and industrial installations.
Rated current
24 A - high current capacity allows the connector to be used in high-power circuits, e.g., power sockets.
Rated impulse voltage
4 kV - high resistance to network surges, which increases the safety of connected devices and the installation itself.
Ambient temperature
Maximum 60 °C (T60) - the connector retains its mechanical and insulating properties even at elevated operating temperatures.
Color scheme
Transparent housing with an orange identification element, which facilitates organization and visual inspection of connections.
Wire stripping length
11 mm - precisely defined stripping length guarantees optimal contact and protection against direct touch.
Test slot
Integrated test point allowing for safe checking of voltage presence with a tester without dismantling the wires.
Application
Ideal for flush-mounted boxes, surface-mounted boxes, connecting lighting fixtures, and in control cabinets.
Warranty
2 years - full manufacturer protection ensuring peace of mind for a long time.
Software
N/A - The device is a passive, mechanical component. It does not contain integrated circuits, processors, or firmware. As a result, it is completely immune to electromagnetic interference (EMC) and logic errors. The lack of a digital interface eliminates the need for updates and configuration, ensuring immediate readiness for operation after inserting the wire. Connection stability results solely from a precisely designed pressure spring that does not require digital supervision.
Contents
100x Electrical connector 3-way
Dimensions, Weight
Product dimensions: 13 x 16 x 4 mm (D x W x H)
Packaging dimensions: 85 x 110 x 40 mm (D x W x H)
Product weight: 1 g
Weight with packaging: 127 g
