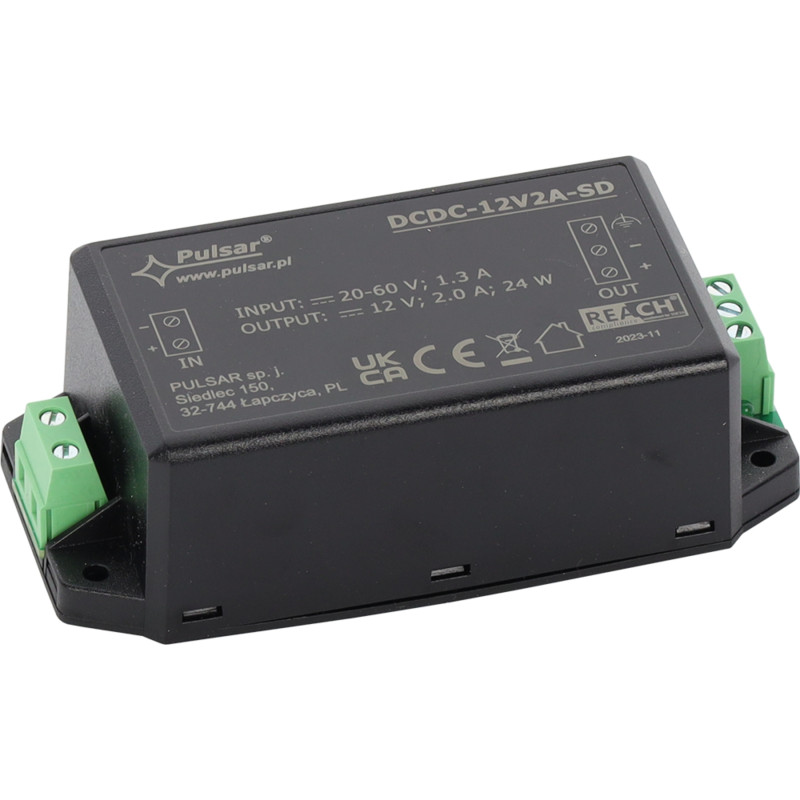

DC/DC Step-Down Voltage Converter 20-60V to 12V 2A 24W Power Module Switching Regulator PULSAR DCDC-12V2A-SD
zł151.88
Tax included
The power converter is an advanced step-down electronic module designed for stable power supply to devices requiring precise 12V DC voltage. The device features an exceptionally wide input voltage range from 20V up to 60V DC, making it an extremely versatile solution in automation systems, CCTV monitoring, and industrial installations. Thanks to the use of modern switching circuits, the module achieves a very high efficiency of 91%, which minimizes energy losses and reduces component heating.
The main advantage of the product is its reliability and built-in protection package. The converter has effective short-circuit protection (SCP) and overload protection (OLP), which protect both the module itself and the connected receivers from damage in emergency situations. The compact housing allows for easy installation in electrical boxes or dedicated enclosures, and clear LED signaling informs the user about the presence of voltage at the output, which significantly facilitates system diagnostics and maintenance.
The use of high-quality cable terminals guarantees a durable and secure electrical connection, eliminating the risk of wires loosening due to vibrations. The device is an ideal choice for installers looking for components with long service life and stable operating parameters. The product is perfect for powering cameras, sensors, and other security system elements that require a stable DC source when powered from higher voltage buses. High efficiency and a wide operating range are the key strengths of this model.
DC/DC Step-Down Voltage Converter 20-60V to 12V 2A 24W Power Module Switching Regulator
Model: PULSAR DCDC-12V2A-SD
EAN: 6931240058923 SKU: 931058928
- Wide input voltage range: 20V - 60V DC
- Stabilized output voltage: 12V DC
- High energy efficiency at 91%
- Maximum output current up to 2A (24W power)
- Built-in short circuit protection (SCP)
- Built-in overload protection (OLP)
- Optical LED indication of output voltage presence
- Robust screw terminals for easy wire installation
- Compact dimensions for easy installation in enclosures
Description
The power converter is an advanced step-down electronic module designed for stable power supply to devices requiring precise 12V DC voltage. The device features an exceptionally wide input voltage range from 20V up to 60V DC, making it an extremely versatile solution in automation systems, CCTV monitoring, and industrial installations. Thanks to the use of modern switching circuits, the module achieves a very high efficiency of 91%, which minimizes energy losses and reduces component heating.
The main advantage of the product is its reliability and built-in protection package. The converter has effective short-circuit protection (SCP) and overload protection (OLP), which protect both the module itself and the connected receivers from damage in emergency situations. The compact housing allows for easy installation in electrical boxes or dedicated enclosures, and clear LED signaling informs the user about the presence of voltage at the output, which significantly facilitates system diagnostics and maintenance.
The use of high-quality cable terminals guarantees a durable and secure electrical connection, eliminating the risk of wires loosening due to vibrations. The device is an ideal choice for installers looking for components with long service life and stable operating parameters. The product is perfect for powering cameras, sensors, and other security system elements that require a stable DC source when powered from higher voltage buses. High efficiency and a wide operating range are the key strengths of this model.
Specification
Device type
DC/DC step-down switching converter module
Input voltage range
20 V ... 60 V DC - wide compatibility range with 24V and 48V systems
Output voltage
12 V DC - stabilized voltage with low ripple
Maximum output current
2 A - current capacity allowing to power multiple receivers simultaneously
Maximum output power
24 W - optimal power for monitoring and automation systems
Energy efficiency
91% - high efficiency reducing heat generation
Short circuit protection (SCP)
Yes - electronic output cutoff in case of a short circuit in the circuit
Overload protection (OLP)
Yes - protection against current draw exceeding 2A
Minimum voltage difference (In-Out)
2 V - required margin for proper voltage stabilization
Optical signaling
LED diode indicating the presence of voltage at the output
Connector type
Screw cable terminals for input, output, and ground
Input current
Maximum 1.3 A at full load
Application
Powering devices with low voltage tolerance, CCTV cameras, sensors
Warranty terms
2-year manufacturer warranty
Construction
Open electronic module for installation
Contents
1x Converter DCDC-12V2A-SD
1x User manual
Dimensions, Weight
Product dimensions: 35 x 110 x 53 mm (D x W x H)
Package dimensions: 40 x 115 x 60 mm (D x W x H)
Product weight: 114 g
Weight with packaging: 126 g
