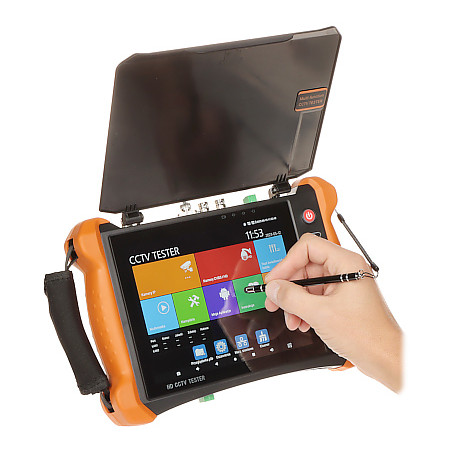

8 inch Retina CCTV Multifunction Tester AHD HD-CVI HD-TVI IP 8K with Multimeter and Reflectometer DELTA CS-H9F-80HX
zł4,821.60
Tax included
The CS-H9F-80HX multifunction CCTV tester is an advanced diagnostic tool designed for professional video surveillance system installers. The device is equipped with a large, 8-inch high-resolution Retina touchscreen (2048 x 1536 px), ensuring excellent image clarity even in difficult lighting conditions. The tester supports a wide range of video standards, including AHD, HD-CVI, HD-TVI, and IP (up to 8K resolution), as well as the classic CVBS analog signal. With built-in functions such as a digital multimeter, TDR reflectometer for UTP cable fault location, optical power meter, and Visual Fault Locator (VFL), the device becomes a complete workshop in one unit. The tester also enables camera power supply via PoE (up to 90W) and DC 5V/12V/24V outputs, which significantly facilitates system configuration in the field. The Android 11 operating system provides intuitive operation and the ability to install additional applications. The device also features a built-in web browser, PTZ protocol support, and the ability to save video to a micro SD card. A robust design and an efficient 3350 mAh battery guarantee long operation without the need for frequent charging, making it essential equipment for every security system technician.
8 inch Retina CCTV Multifunction Tester AHD HD-CVI HD-TVI IP 8K with Multimeter and Reflectometer
Model: DELTA CS-H9F-80HX
EAN: 6931240032657 SKU: 931032654
- 8-inch Retina touchscreen 2048x1536 px
- Support for AHD, HD-CVI, HD-TVI, IP (8K) and CVBS standards
- Built-in digital multimeter and TDR reflectometer
- Optical power measurement and Visual Fault Locator (VFL)
- PoE camera power supply (up to 90W) and DC 5V/12V/24V outputs
- Android 11 system with mobile app support
- UTP cable and RS-485/RS-232 line testing
- Built-in flashlight and Wi-Fi hotspot
Description
The CS-H9F-80HX multifunction CCTV tester is an advanced diagnostic tool designed for professional video surveillance system installers. The device is equipped with a large, 8-inch high-resolution Retina touchscreen (2048 x 1536 px), ensuring excellent image clarity even in difficult lighting conditions. The tester supports a wide range of video standards, including AHD, HD-CVI, HD-TVI, and IP (up to 8K resolution), as well as the classic CVBS analog signal. With built-in functions such as a digital multimeter, TDR reflectometer for UTP cable fault location, optical power meter, and Visual Fault Locator (VFL), the device becomes a complete workshop in one unit. The tester also enables camera power supply via PoE (up to 90W) and DC 5V/12V/24V outputs, which significantly facilitates system configuration in the field. The Android 11 operating system provides intuitive operation and the ability to install additional applications. The device also features a built-in web browser, PTZ protocol support, and the ability to save video to a micro SD card. A robust design and an efficient 3350 mAh battery guarantee long operation without the need for frequent charging, making it essential equipment for every security system technician.
Specification
Video Standard
AHD 8 Mpx, HD-CVI 8 Mpx, HD-TVI 8 Mpx, TCP/IP 8K, CVBS PAL/NTSC
Display
8 inch Retina, capacitive touchscreen, 2048 x 1536 px
Video Inputs/Outputs
Input: 1x BNC (AHD/CVI/TVI/CVBS), 1x HDMI. Output: 1x BNC (CVBS), 1x HDMI
LAN Ports
2 pcs with support for cameras and PoE switches
Audio
1x Mini Jack input, 1x Mini Jack output, audio test
Meters and Tests
Digital multimeter (voltage, current, resistance, diode, capacitance), TDR reflectometer (UTP break location), optical power meter (850-1625 nm), VFL (650 nm, 10 mW)
Serial Ports
RS-485, support for over 30 protocols (Pelco-D/P, Hikvision, Samsung, Panasonic, etc.)
Software
The device runs on the Android 11 system. It has built-in applications for viewing IP cameras (gDMSS, Safire Connect, XMEye, iVMS-4500, EZView, FreeIP PRO, and others). The built-in Google Chrome browser allows access to camera web interfaces. The Quickoffice suite allows for editing .docx, .xlsx, and .pptx documents. VLC Media Player allows for playing multimedia files (mp3, mp4, avi, mpeg). The system supports advanced network analysis (Ping, IP scanner, switch port detection) and PTZ camera management.
Output Power
5V DC/2A (USB), 12V DC/3A, 24V DC/2A, 48V PoE (max 90W)
Battery Power
Li-Ion battery 11.1V, 3350mAh, 37.19Wh, operating time up to 10h
Additional Features
Wi-Fi hotspot, flashlight, micro SD card recording, backlit buttons, theme switching
Operating Conditions
-10°C to 50°C, humidity 30% - 90%
Languages
Polish, English, Czech, French, Spanish, German, Portuguese, Russian, Turkish, Italian, Serbian
Warranty
2 years
Contents
1x CCTV Tester CS-H9F-80HX
1x Power adapter
1x Micro SD card 8GB
User manual
Dimensions, Weight
Product dimensions: 42 x 263 x 182 mm (D x W x H)
Package dimensions: 150 x 350 x 250 mm (D x W x H)
Product weight: 1220 g
Weight with packaging: 2000 g
