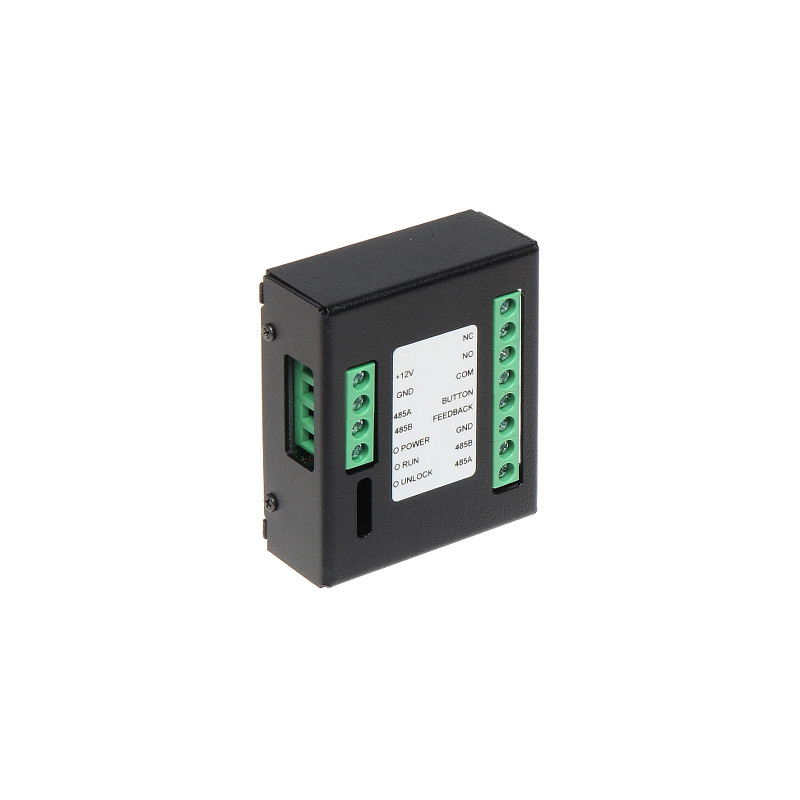

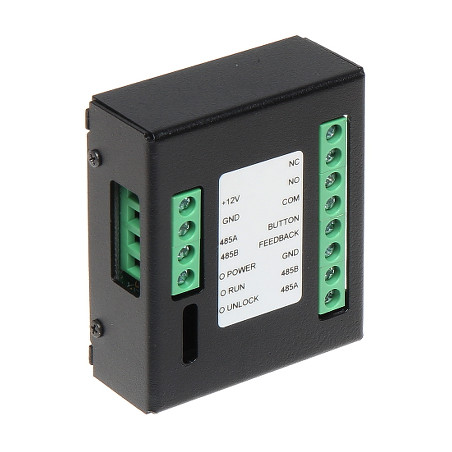

Access control expansion module for video intercom second door gate control RS-485 NO/NC DAHUA DEE1010B-S2
zł325.95
Tax included
The advanced DEE1010B-S2 relay module is a professional solution dedicated to expanding Dahua video intercom systems. The device allows for a significant increase in the functionality of the basic video intercom kit by adding support for another access point, such as an additional entrance gate or a second entrance door.
A key advantage of the module is its versatility and simplicity of integration. Communication with the outdoor station takes place via a stable and interference-resistant RS-485 interface, which allows the module to be installed in a safe place inside the building, away from potential tampering by third parties at the entrance. Thanks to the built-in relay with NO (normally open) and NC (normally closed) outputs, the device can control almost any type of electric strike, electromagnetic lock, or gate drive.
The module has been designed for maximum user convenience. Managing the opening of the second access point can be done directly from the indoor monitor or remotely using the intuitive DMSS mobile application for smartphones. This is an ideal solution for those looking for a comprehensive access control system that combines security, reliability, and modern mobile technologies. The solid construction and compact dimensions facilitate installation in electrical boxes or dedicated enclosures, making the installation quick and aesthetic.
Access control expansion module for video intercom second door gate control RS-485 NO/NC
Model: DAHUA DEE1010B-S2
EAN: 6931240023655 SKU: 931023654
- Enables control of an additional gate or door in Dahua video intercom systems
- Uses RS-485 communication bus ensuring connection stability
- Equipped with a universal NO / NC relay output
- Support for exit button and door status sensor (reed switch)
- Full integration with the DMSS mobile application for remote access opening
- LED indicators for power and device status
- Very low power consumption, not burdening the power system
- Compact housing allowing for easy installation in limited spaces
Description
The advanced DEE1010B-S2 relay module is a professional solution dedicated to expanding Dahua video intercom systems. The device allows for a significant increase in the functionality of the basic video intercom kit by adding support for another access point, such as an additional entrance gate or a second entrance door.
A key advantage of the module is its versatility and simplicity of integration. Communication with the outdoor station takes place via a stable and interference-resistant RS-485 interface, which allows the module to be installed in a safe place inside the building, away from potential tampering by third parties at the entrance. Thanks to the built-in relay with NO (normally open) and NC (normally closed) outputs, the device can control almost any type of electric strike, electromagnetic lock, or gate drive.
The module has been designed for maximum user convenience. Managing the opening of the second access point can be done directly from the indoor monitor or remotely using the intuitive DMSS mobile application for smartphones. This is an ideal solution for those looking for a comprehensive access control system that combines security, reliability, and modern mobile technologies. The solid construction and compact dimensions facilitate installation in electrical boxes or dedicated enclosures, making the installation quick and aesthetic.
Specification
System compatibility
Full compatibility with professional DAHUA access control systems and all video intercoms of this brand supporting the RS-485 protocol.
Communication interface
RS-485 (differential transmission standard allowing data transfer over long distances using twisted pair cable).
Relay output
1x NO / NC output (potential-free relay with load capacity typical for electric strikes and gate controllers).
Control inputs
1x dedicated input for exit button; 1x input for magnetic sensor (reed switch) to monitor door opening status.
Additional ports
2x RS-485 port allowing for serial connection of devices into a bus.
Optical signaling
Set of 3 LED indicators informing the user about power status and communication activity on the RS-485 bus.
Power parameters
Rated voltage 12V DC; minimum current of 1A required for stable operation.
Energy consumption
Standby mode: ≤ 0.9 W; Maximum consumption during operation (relay activation): ≤ 1.0 W.
Environmental conditions
Wide operating temperature range from -10 °C to 60 °C; Permissible relative ambient humidity from 0% to 95%.
Application
Expansion of single and multi-family systems with gate lock or sliding/swing gate drive support.
Security
Internal installation of the module prevents door opening through sabotage of the outdoor station (shorted cables).
Housing and installation
Compact design made of durable plastic; possibility of mounting in flush-mounted boxes or on brackets.
DMSS software
The DMSS (Dahua Mobile Surveillance System) software is an advanced mobile application dedicated to operating Dahua security systems on Android and iOS devices. The application allows for remote control of the DEE1010B-S2 module's relay outputs, which allows the user to open the gate or door from anywhere in the world with Internet access. DMSS offers a clear interface, P2P (Cloud) technology support, instant push notifications about events, live view from video intercom cameras, and the ability to configure basic device parameters. Thanks to the application, security and control over access to the property become extremely intuitive and mobile.
Warranty
24 months (2 years) from the date of purchase.
Contents
1x DEE1010B-S2 relay module
1x Quick start guide
Dimensions, Weight
Product dimensions: 21 x 59 x 50 mm (D x W x H)
Packaging dimensions: 45 x 105 x 90 mm (D x W x H)
Product weight: 90 g
Weight with packaging: 130 g
