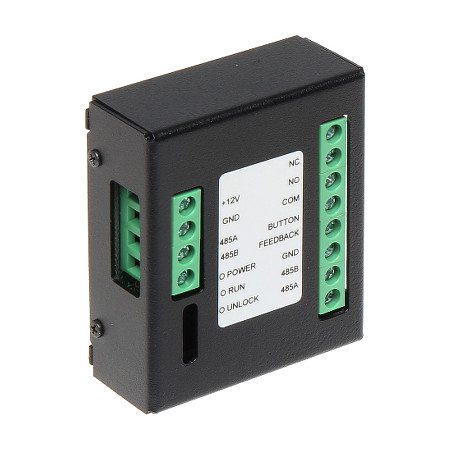

Dahua DEE1010B-S2 Access Control Expansion Module for Video Intercoms DAHUA DEE1010B-S2
zł 325,95
Tax included
The advanced DEE1010B-S2 relay module is a professional solution designed to expand Dahua video intercom systems. The device allows for a significant increase in the functionality of a basic video intercom kit by adding support for an additional access point, such as an extra entrance gate or a second door.
A key advantage of the module is its versatility and ease of integration. Communication with the outdoor station takes place via a stable and interference-resistant RS-485 interface, which allows the module to be installed in a secure location inside the building, away from potential tampering at the entrance. Thanks to the built-in relay with NO (normally open) and NC (normally closed) outputs, the device can control almost any type of electric strike, electromagnetic lock, or gate drive.
The module is designed for maximum user convenience. Managing the opening of the second access point can be done directly from the indoor monitor or remotely using the intuitive DMSS mobile app for smartphones. This is an ideal solution for those seeking a comprehensive access control system that combines security, reliability, and modern mobile technologies. The robust design and compact dimensions facilitate installation in electrical boxes or dedicated enclosures, making the setup quick and aesthetic.
Dahua DEE1010B-S2 Access Control Expansion Module for Video Intercoms
Model: DAHUA DEE1010B-S2
EAN: 6931240023655 SKU: 931023654
- Enables control of an additional gate or door in Dahua video intercom systems
- Uses RS-485 communication bus for connection stability
- Equipped with a universal NO / NC relay output
- Supports exit button and door status sensor (reed switch)
- Full integration with the DMSS mobile app for remote access control
- LED indicators for power and device status
- Very low power consumption, minimizing system load
- Compact housing for easy installation in limited spaces
Description
The advanced DEE1010B-S2 relay module is a professional solution designed to expand Dahua video intercom systems. The device allows for a significant increase in the functionality of a basic video intercom kit by adding support for an additional access point, such as an extra entrance gate or a second door.
A key advantage of the module is its versatility and ease of integration. Communication with the outdoor station takes place via a stable and interference-resistant RS-485 interface, which allows the module to be installed in a secure location inside the building, away from potential tampering at the entrance. Thanks to the built-in relay with NO (normally open) and NC (normally closed) outputs, the device can control almost any type of electric strike, electromagnetic lock, or gate drive.
The module is designed for maximum user convenience. Managing the opening of the second access point can be done directly from the indoor monitor or remotely using the intuitive DMSS mobile app for smartphones. This is an ideal solution for those seeking a comprehensive access control system that combines security, reliability, and modern mobile technologies. The robust design and compact dimensions facilitate installation in electrical boxes or dedicated enclosures, making the setup quick and aesthetic.
Specification
System Compatibility
Full compatibility with professional DAHUA access control systems and all video intercoms of this brand supporting the RS-485 protocol.
Communication Interface
RS-485 (differential transmission standard allowing data transfer over long distances using twisted pair cable).
Relay Output
1x NO / NC output (potential-free relay with load capacity typical for electric strikes and gate controllers).
Control Inputs
1x dedicated input for exit button; 1x input for magnetic sensor (reed switch) to monitor door open status.
Additional Ports
2x RS-485 ports allowing for daisy-chaining devices on the bus.
Optical Signaling
Set of 3 LED indicators informing the user about power status and RS-485 bus communication activity.
Power Parameters
Rated voltage 12V DC; minimum 1A current required for stable operation.
Power Consumption
Standby mode: ≤ 0.9 W; Maximum consumption during operation (relay activation): ≤ 1.0 W.
Environmental Conditions
Wide operating temperature range from -10 °C to 60 °C; Permissible relative ambient humidity from 0% to 95%.
Application
Expansion of single and multi-family systems with gate lock or sliding/swing gate drive support.
Security
Internal module installation prevents door opening via outdoor station sabotage (shorted cables).
Housing and Mounting
Compact design made of durable plastic; can be mounted in flush-mounted boxes or on brackets.
DMSS Software
DMSS (Dahua Mobile Surveillance System) software is an advanced mobile application dedicated to managing Dahua security systems on Android and iOS devices. The application allows remote control of the DEE1010B-S2 module's relay outputs, enabling the user to open a gate or door from anywhere in the world with Internet access. DMSS offers a clear interface, P2P (Cloud) technology support, instant push notifications for events, live view from video intercom cameras, and the ability to configure basic device parameters. Thanks to the app, security and access control to the property become extremely intuitive and mobile.
Warranty
24 months (2 years) from the date of purchase.
Contents
1x DEE1010B-S2 Relay Module
1x Quick Start Guide
Dimensions, Weight
Product dimensions: 21 x 59 x 50 mm (D x W x H)
Package dimensions: 45 x 105 x 90 mm (D x W x H)
Product weight: 90 g
Weight with packaging: 130 g
