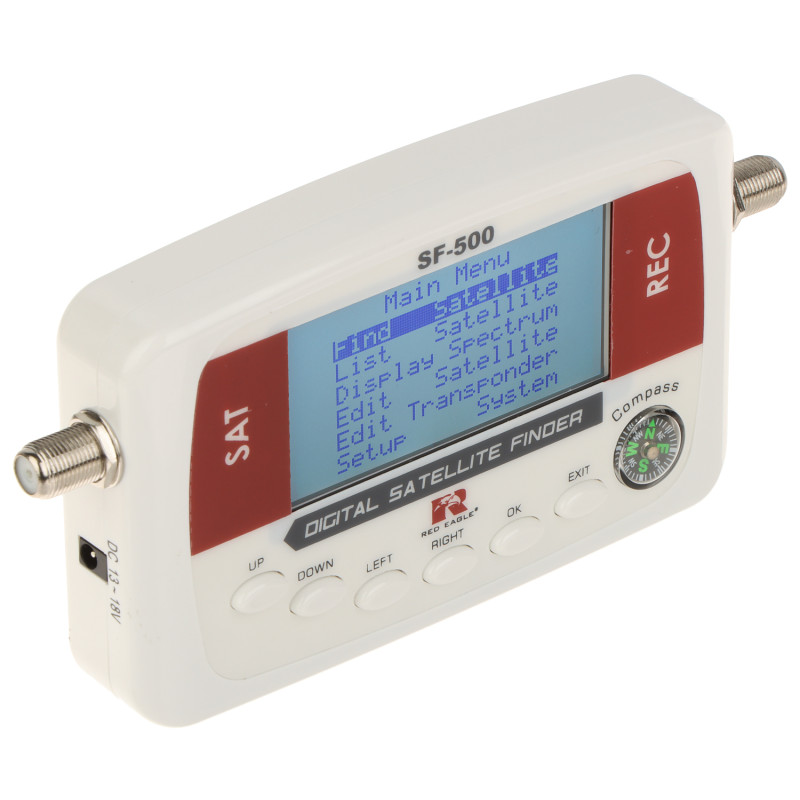

DVB-S DVB-S2 Satellite Signal Meter SAT Antenna Tester LCD Satellite Finder DiSEqC Signal Locator Opticum SF-500
zł204.98
Tax included
The professional SF-500 satellite meter is an advanced tool designed for precise satellite antenna alignment, supporting both DVB-S and the more modern DVB-S2 standards. This device is essential equipment for every satellite TV installer, offering exceptional speed and measurement accuracy. Thanks to an intuitive menu and a clear TFT LCD display, the satellite dish configuration process becomes simple even for those with less technical experience.
One of the key advantages of the meter is the built-in database of several popular satellite positions along with their assigned transponders, allowing for immediate work without the need for manual data entry. The device enables real-time measurement of signal strength and quality, visualized on the screen via clear progress bars and percentage values. An additional convenience is the audible signal, which changes frequency depending on the received signal strength, allowing for antenna adjustment without constantly looking at the display.
The SF-500 model is characterized by great power supply versatility. It can operate using an external 13V DC power adapter (included) or be powered mobilely using 5 AA batteries, which is invaluable when working on roofs or in places without access to the electrical grid. The solid, lightweight housing and compact dimensions ensure the tester fits into any tool bag, and the built-in compass (though auxiliary) supports initial orientation of the antenna direction. It is a reliable solution that eliminates installation errors and significantly shortens the time required for SAT system installation.
DVB-S DVB-S2 Satellite Signal Meter SAT Antenna Tester LCD Satellite Finder DiSEqC Signal Locator
Model: Opticum SF-500
EAN: 6931240049938 SKU: 931049937
- Support for DVB-S and DVB-S2 digital transmission standards
- Clear TFT LCD display for monitoring signal parameters
- Built-in database of popular satellites and transponders
- Measurement of signal strength and quality
- Audible signal for easy precise tuning
- Support for DiSEqC 1.0 and 22kHz control signals
- Support for Ku-band and C-band LNBs
- Two power supply methods: mains adapter or 5x AA batteries
- Ability to manually edit satellite parameters
- Compact housing and low weight for easy field work
Description
The professional SF-500 satellite meter is an advanced tool designed for precise satellite antenna alignment, supporting both DVB-S and the more modern DVB-S2 standards. This device is essential equipment for every satellite TV installer, offering exceptional speed and measurement accuracy. Thanks to an intuitive menu and a clear TFT LCD display, the satellite dish configuration process becomes simple even for those with less technical experience.
One of the key advantages of the meter is the built-in database of several popular satellite positions along with their assigned transponders, allowing for immediate work without the need for manual data entry. The device enables real-time measurement of signal strength and quality, visualized on the screen via clear progress bars and percentage values. An additional convenience is the audible signal, which changes frequency depending on the received signal strength, allowing for antenna adjustment without constantly looking at the display.
The SF-500 model is characterized by great power supply versatility. It can operate using an external 13V DC power adapter (included) or be powered mobilely using 5 AA batteries, which is invaluable when working on roofs or in places without access to the electrical grid. The solid, lightweight housing and compact dimensions ensure the tester fits into any tool bag, and the built-in compass (though auxiliary) supports initial orientation of the antenna direction. It is a reliable solution that eliminates installation errors and significantly shortens the time required for SAT system installation.
Specification
Measurement standards
DVB-S, DVB-S2 (digital satellite TV signals)
Frequency range
950 MHz ... 2150 MHz
Input signal level
-65 dBm ... -25 dBm
Input impedance
75 Ohm
LNB power supply
13 V / 18 V, maximum current 500 mA
Band control
22 kHz signal
DiSEqC support
Version 1.0
Modulation
QPSK, 8PSK, 16APSK, 32APSK
Symbol rate
2 ... 45 Msps
Display
TFT LCD (liquid crystal)
External power supply
13 V DC / 1 A (power adapter included)
Battery power supply
5 x AA 1.5V battery (battery holder required)
Connectors
2x F-connector (LNB input and receiver output)
System software
The SF-500 device features built-in firmware with a graphical user interface that allows for comprehensive management of the satellite database. The system enables instant calculation of signal quality parameters based on received DVB-S2 data frames. The user has access to advanced transponder editing functions, where they can change frequency, polarization (V/H), and symbol rate for specific channels. The software also controls an intelligent sound generator with variable tone modulation, which is crucial for precise dish calibration without screen monitoring. The firmware ensures stable operation and fast response to signal changes, eliminating delays while moving the antenna.
Additional functions
Satellite position detection and identification, built-in compass, audible signal
Warranty
2 years (24 months)
Contents
1x SF-500 Satellite Meter
1x Battery holder (5xAA)
1x 13V DC mains adapter
1x User manual
Dimensions, Weight
Product dimensions: 28 x 78 x 154 mm (D x W x H)
Packaging dimensions: 75 x 130 x 200 mm (D x W x H)
Product weight: 140 g
Weight with packaging: 368 g
