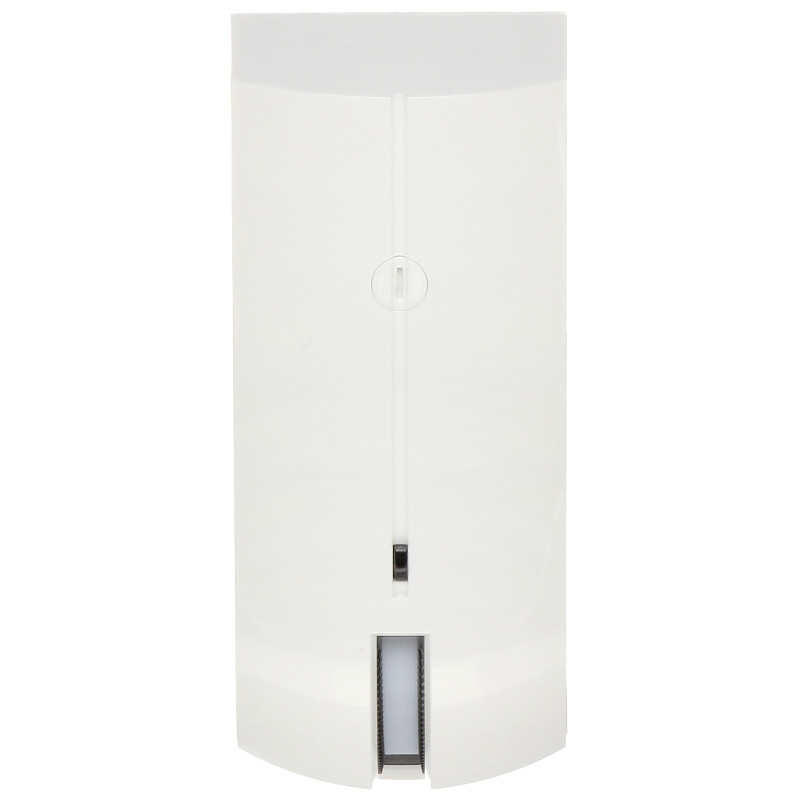

Dual curtain motion detector PIR MW Grade 3 microwave barrier IP54 SATEL AGATE
zł468.69
Tax included
SATEL AGATE is a professional, outdoor curtain motion detector that combines two advanced detection technologies: passive infrared (PIR) and microwave (MW). The device is designed with the highest level of security in mind, which is confirmed by compliance with the rigorous EN 50131-2-4 Grade 3 standard. Due to this, it is ideal for protecting high-risk objects, such as banks, museums, or jewelry stores, where reliability and precision are required. The advantage of the AGATE detector is its unique curtain-type detection characteristic, which allows for the effective securing of narrow strips of terrain, e.g., along building walls, by windows, or gates. Using a dual detection path significantly reduces the risk of false alarms that could be caused by atmospheric factors. The device is fully resistant to rain, snow, fog, and strong gusts of wind, which guarantees stable operation in environmental class IIIa. An innovative feature is the active IR anti-masking, which detects attempts to cover or paint over the detector lens, notifying the system of tampering. The solid IP54-rated enclosure protects the electronics from moisture and dirt. The detector also has advanced digital temperature compensation, adjusting sensitivity to ambient conditions, which is crucial for outdoor installation. The wide operating temperature range from -40°C to +55°C means that AGATE will perform well in all climatic conditions. Installation and configuration of the device are extremely simple thanks to clear LED signaling (green, red, blue) and precise potentiometers for adjusting the sensitivity of both detection paths. AGATE is synonymous with reliability in the security systems industry, offering the user peace of mind and confidence that the protected area is under constant, professional supervision.
Dual curtain motion detector PIR MW Grade 3 microwave barrier IP54
Model: SATEL AGATE
EAN: 6931240052402 SKU: 931052400
- Compliance with EN 50131-2-4 Grade 3 standard (high security)
- Dual detection path: passive infrared (PIR) and microwave (MW 24.125 GHz)
- Active IR anti-masking detecting attempts to cover or paint over the lens
- Curtain-type detection characteristic - ideal for protecting walls and window openings
- High IP54 ingress protection rating allowing for direct outdoor installation
- Digital detection algorithm with advanced temperature compensation
- Full resistance to adverse weather conditions (rain, snow, wind)
- Integrated approach zone control function (protection under the detector)
- Triple LED signaling: green (MW), blue (PIR), red (Alarm)
- Comprehensive tamper protection against opening the enclosure and removal from the surface
Description
SATEL AGATE is a professional, outdoor curtain motion detector that combines two advanced detection technologies: passive infrared (PIR) and microwave (MW). The device is designed with the highest level of security in mind, which is confirmed by compliance with the rigorous EN 50131-2-4 Grade 3 standard. Due to this, it is ideal for protecting high-risk objects, such as banks, museums, or jewelry stores, where reliability and precision are required. The advantage of the AGATE detector is its unique curtain-type detection characteristic, which allows for the effective securing of narrow strips of terrain, e.g., along building walls, by windows, or gates. Using a dual detection path significantly reduces the risk of false alarms that could be caused by atmospheric factors. The device is fully resistant to rain, snow, fog, and strong gusts of wind, which guarantees stable operation in environmental class IIIa. An innovative feature is the active IR anti-masking, which detects attempts to cover or paint over the detector lens, notifying the system of tampering. The solid IP54-rated enclosure protects the electronics from moisture and dirt. The detector also has advanced digital temperature compensation, adjusting sensitivity to ambient conditions, which is crucial for outdoor installation. The wide operating temperature range from -40°C to +55°C means that AGATE will perform well in all climatic conditions. Installation and configuration of the device are extremely simple thanks to clear LED signaling (green, red, blue) and precise potentiometers for adjusting the sensitivity of both detection paths. AGATE is synonymous with reliability in the security systems industry, offering the user peace of mind and confidence that the protected area is under constant, professional supervision.
Specification
Application and Intended Use
The device is designed for outdoor operation in professional burglary and assault signaling systems. It is perfect for perimeter protection, guarding building facades, windows, doors, and garage gates.
Detection Technology
Dual technology combining passive infrared (PIR) with a dual pyroelement and a microwave (MW) path operating at a high frequency of 24.125 GHz, ensuring extreme resistance to false alarms.
Security Grade
Compliance with EN 50131-2-4 and EN 50131-1 standards for Grade 3. The product is approved for use in high-risk burglary facilities (e.g., banks, jewelers).
Range and Detection Angle
The maximum detection range is up to 14 meters. The beam characteristic is narrow, measuring 10 degrees, creating a tight, curtain-type vertical barrier.
Recommended Installation
The optimal installation height of the device is 2.4 meters. The permissible speed of a detectable intruder's movement is in the range from 0.3 m/s to 3 m/s.
Sensitivity Adjustment
Independent sensitivity adjustment for both paths (PIR and MW) is performed using built-in potentiometers, allowing for precise adjustment to the specific installation site.
Anti-masking System
Active infrared (IR) anti-masking operating in continuous mode, detecting attempts to neutralize the detector by covering it with any material or substance.
Status Signaling
Extensive LED diode system: Green (4s) informs about microwave path activation, Blue (4s) about PIR path, while Red (2s) signals the alarm state.
Working Conditions and Environment
Environmental class IIIa according to EN 50130-5. The device operates stably in an extreme temperature range from -40°C to +55°C. Enclosure ingress protection rating IP54.
Electrical Parameters
Supply voltage is 12V DC (direct current). Power consumption in standby and operation mode does not exceed 25 mA. Alarm output type NC (normally closed).
Tamper Protection
Tamper contact protecting against unauthorized opening of the detector housing and against attempts to tear the device from the mounting surface.
Temperature Compensation
Advanced digital temperature compensation, which automatically modifies detection thresholds depending on the ambient temperature, maintaining constant effectiveness.
Certificates and Standards
EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-4. The product meets all European Union requirements confirmed by the CE declaration.
Software and Detection Algorithm
The heart of the AGATE detector is advanced firmware that implements a digital detection algorithm. The firmware analyzes the correlation of signals from both sensors (PIR and MW) in the time and amplitude domains. The system intelligently filters out interference caused by swaying trees, precipitation, or small animals that do not fit the human movement model. As a result, the device logic minimizes the probability of false triggers while maintaining maximum sensitivity to real threats. The software also manages the active anti-masking function, constantly calibrating the optical path for changes in lens transparency.
Contents
1x AGATE detector
1x User and installation manual
1x Set of mounting screws
Dimensions, Weight
Product dimensions: 40 x 44 x 105 mm (D x W x H)
Packaging dimensions: 55 x 135 x 65 mm (D x W x H)
Product weight: 92 g
Weight with packaging: 144 g
