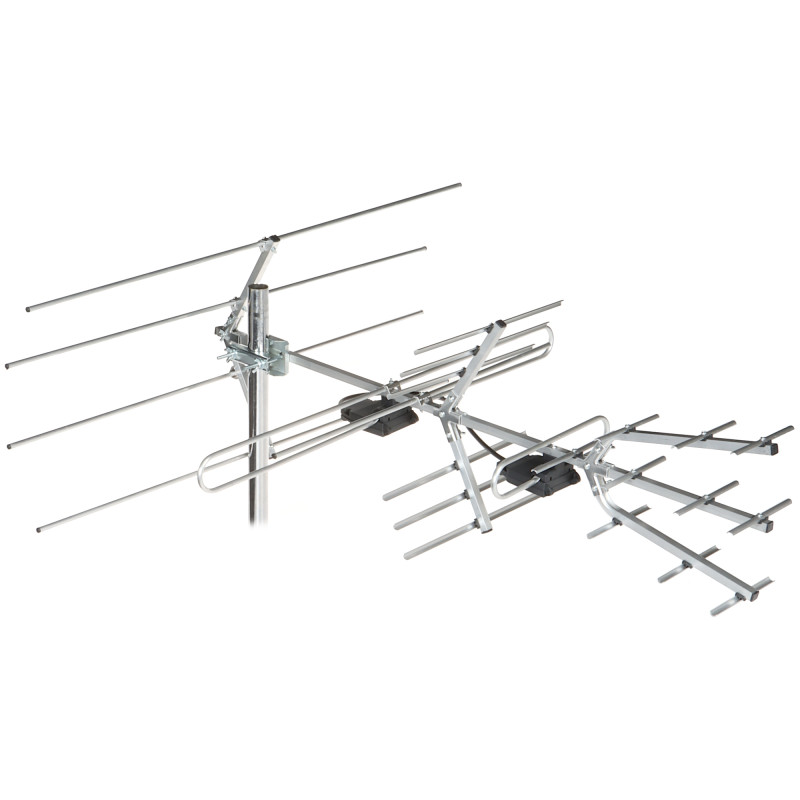

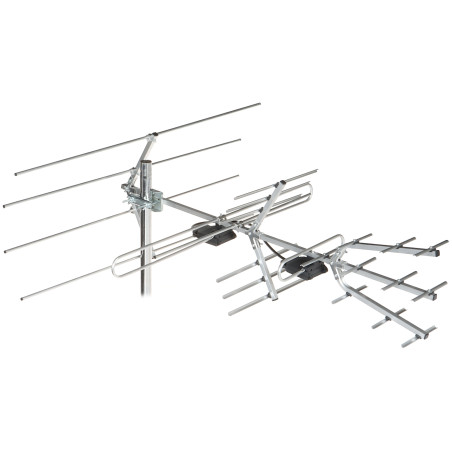

Directional Broadband Antenna DVB-T2 VHF UHF MUX-8 External Aluminum Combo Log-Periodic Digital Terrestrial Dipol 28/5-12/21-60
zł224.45
Tax included
The 28/5-12/21-60 directional antenna is a professional solution designed for the highest quality reception of DVB-T and DVB-T2 digital terrestrial television. Thanks to its unique broadband construction, the device allows for stable signal reception in both the VHF band (channels 5-12) and the UHF band (channels 21-48), making it an ideal choice for receiving all available multiplexes, including MUX-8.
A key advantage of this model is its exceptional durability and resistance to variable weather conditions. The active antenna elements are made of high-grade aluminum, which is lightweight and features excellent conductivity. Steel structural elements, such as U-bolts and mounts, have undergone a galvanizing process. This guarantees many years of operation without the risk of corrosion, even in harsh environmental conditions.
The antenna offers high energy gain, reaching up to 14.1 dBi in the UHF band, which allows for proper signal reception even at a significant distance from the transmitter. The integrated VHF/UHF diplexer and the included baluns significantly simplify the installation process, eliminating the need for additional external band-combining modules.
The antenna design allows for mounting in horizontal or vertical polarization, which is crucial for matching local broadcasting parameters. The use of 28 elements allows for precise beam pointing and effective elimination of interference from reflections or other radio sources. This is a product dedicated to users who value reliability and crystal-clear images without artifacts.
Directional Broadband Antenna DVB-T2 VHF UHF MUX-8 External Aluminum Combo Log-Periodic Digital Terrestrial
Model: Dipol 28/5-12/21-60
EAN: 6931240033265 SKU: 931033266
- Designed for DVB-T / DVB-T2 terrestrial digital television reception
- Broadband design supporting VHF and UHF bands
- High-quality corrosion-resistant aluminum construction
- Galvanized steel mounting components
- Built-in VHF/UHF diplexer for easy installation
- Supports vertical and horizontal polarization
- High energy gain up to 14.1 dBi
- Set includes necessary baluns
Description
The 28/5-12/21-60 directional antenna is a professional solution designed for the highest quality reception of DVB-T and DVB-T2 digital terrestrial television. Thanks to its unique broadband construction, the device allows for stable signal reception in both the VHF band (channels 5-12) and the UHF band (channels 21-48), making it an ideal choice for receiving all available multiplexes, including MUX-8.
A key advantage of this model is its exceptional durability and resistance to variable weather conditions. The active antenna elements are made of high-grade aluminum, which is lightweight and features excellent conductivity. Steel structural elements, such as U-bolts and mounts, have undergone a galvanizing process. This guarantees many years of operation without the risk of corrosion, even in harsh environmental conditions.
The antenna offers high energy gain, reaching up to 14.1 dBi in the UHF band, which allows for proper signal reception even at a significant distance from the transmitter. The integrated VHF/UHF diplexer and the included baluns significantly simplify the installation process, eliminating the need for additional external band-combining modules.
The antenna design allows for mounting in horizontal or vertical polarization, which is crucial for matching local broadcasting parameters. The use of 28 elements allows for precise beam pointing and effective elimination of interference from reflections or other radio sources. This is a product dedicated to users who value reliability and crystal-clear images without artifacts.
Specification
Product type
Directional broadband television antenna
Received VHF channels
5 ... 12
Received UHF channels
21 ... 48
VHF energy gain
6 ... 7.4 dBi
UHF energy gain
6 ... 14.1 dBi
Polarization
Horizontal / Vertical
Impedance
75 Ω
Number of elements
28
Material
Aluminum (active elements), galvanized steel (mounting elements)
Diplexer
Built-in VHF/UHF diplexer
Baluns
Included in set
Warranty
2 years (24 months)
Resistance
Resistant to weather conditions and UV radiation
Structural advantages
Lightweight aluminum construction, easy mast mounting using U-bolts
Software and Interface
The product is a fully passive receiving device, which means it does not have embedded firmware, a processor, or digital memory. The lack of a digital interface like a Web Server or mobile app is a deliberate design feature that eliminates the risk of system failures, device hanging, or the need for updates. The antenna operates solely based on the laws of physics and electromagnetic wave induction in the aluminum elements. As a result, it is completely immune to code errors or incompatibility with new operating systems. The signal is passed directly to the tuner, where decoding occurs without the antenna's software involvement.
Content
1x Broadband antenna 28/5-12/21-60
1x Set of baluns
1x Set of mounting elements (U-bolts)
Dimensions, Weight
Product dimensions: 350 x 1030 x 890 mm (D x W x H)
Packaging dimensions: 95 x 1050 x 305 mm (D x W x H)
Product weight: 1380 g
Weight with packaging: 1870 g
