- New

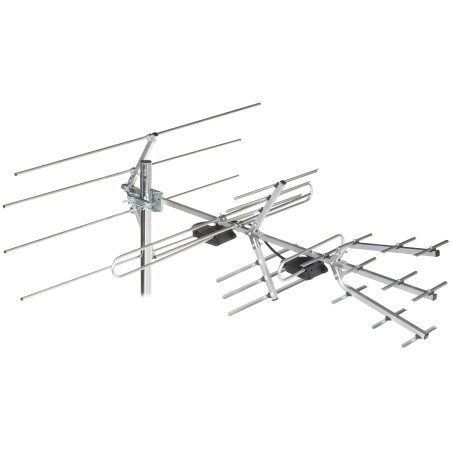

Directional Broadband Antenna DVB-T2 VHF UHF MUX-8 Outdoor Aluminium Combo Logarithmic Digital Terrestrial Dipol 28/5-12/21-60
zł 224,45
Tax included
The 28/5-12/21-60 directional antenna is a professional solution designed for the highest quality DVB-T and DVB-T2 terrestrial television reception. Thanks to its unique broadband design, the device allows for stable signal reception in both the VHF band (channels 5-12) and the UHF band (channels 21-48), making it an ideal choice for receiving all available multiplexes, including MUX-8.
A key advantage of this model is its remarkable durability and resistance to variable weather conditions. The antenna's active elements are made of high-grade aluminium, characterized by its lightweight nature and excellent conductivity. The steel structural components, such as U-bolts and mounts, have undergone a galvanization process. This guarantees years of operation without concerns about corrosion, even in harsh environmental conditions.
The antenna offers high energy gain, reaching up to 14.1 dBi in the UHF band, allowing for correct signal reception even at a significant distance from the transmitter. The integrated VHF/UHF diplexer and the included baluns significantly simplify the installation process, eliminating the need for additional external band-combining modules.
The antenna's design allows for mounting in horizontal or vertical polarization, which is extremely important for matching local broadcast parameters. The use of 28 elements enables precise beam steering and effective elimination of interference from reflections or other radio sources. This is a product dedicated to users who value reliability and a crystal-clear image without artifacts.
Directional Broadband Antenna DVB-T2 VHF UHF MUX-8 Outdoor Aluminium Combo Logarithmic Digital Terrestrial
Model: Dipol 28/5-12/21-60
EAN: 6931240033265 SKU: 931033266
- Adapted for DVB-T / DVB-T2 digital terrestrial television reception
- Broadband design supporting VHF and UHF bands
- Made of high-quality corrosion-resistant aluminium
- Galvanized steel structural components
- Built-in VHF/UHF diplexer for easy installation
- Vertical and horizontal polarization support
- High energy gain up to 14.1 dBi
- Set includes necessary baluns
Description
The 28/5-12/21-60 directional antenna is a professional solution designed for the highest quality DVB-T and DVB-T2 terrestrial television reception. Thanks to its unique broadband design, the device allows for stable signal reception in both the VHF band (channels 5-12) and the UHF band (channels 21-48), making it an ideal choice for receiving all available multiplexes, including MUX-8.
A key advantage of this model is its remarkable durability and resistance to variable weather conditions. The antenna's active elements are made of high-grade aluminium, characterized by its lightweight nature and excellent conductivity. The steel structural components, such as U-bolts and mounts, have undergone a galvanization process. This guarantees years of operation without concerns about corrosion, even in harsh environmental conditions.
The antenna offers high energy gain, reaching up to 14.1 dBi in the UHF band, allowing for correct signal reception even at a significant distance from the transmitter. The integrated VHF/UHF diplexer and the included baluns significantly simplify the installation process, eliminating the need for additional external band-combining modules.
The antenna's design allows for mounting in horizontal or vertical polarization, which is extremely important for matching local broadcast parameters. The use of 28 elements enables precise beam steering and effective elimination of interference from reflections or other radio sources. This is a product dedicated to users who value reliability and a crystal-clear image without artifacts.
Specification
Product type
Directional broadband television antenna
Received VHF channels
5 ... 12
Received UHF channels
21 ... 48
VHF energy gain
6 ... 7.4 dBi
UHF energy gain
6 ... 14.1 dBi
Polarization
Horizontal / Vertical
Impedance
75 Ω
Number of elements
28
Material
Aluminium (active elements), galvanized steel (mounting elements)
Diplexer
Built-in VHF/UHF diplexer
Baluns
Included in the set
Warranty
2 years (24 months)
Resistance
Resistant to weather conditions and UV radiation
Construction advantages
Lightweight aluminium construction, easy mast mounting using U-bolts
Software and Interface
The product is a fully passive receiving device, meaning it has no embedded firmware, processor, or digital memory. The absence of a digital interface such as a Web Server or mobile app is an intentional design feature that eliminates the risk of system failures, device hangs, or the need for updates. The antenna operates solely based on the laws of physics and electromagnetic wave induction in the aluminium elements. Consequently, it is completely immune to code errors or incompatibility with new operating systems. The signal is transmitted directly to the tuner, where decoding occurs without the antenna's software involvement.
Content
1x Broadband antenna 28/5-12/21-60
1x Set of baluns
1x Set of mounting elements (U-bolts)
Dimensions, Weight
Product dimensions: 350 x 1030 x 890 mm (D x W x H)
Package dimensions: 95 x 1050 x 305 mm (D x W x H)
Product weight: 1380 g
Weight with packaging: 1870 g
