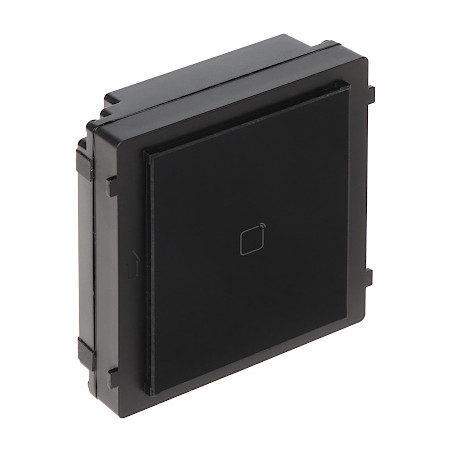

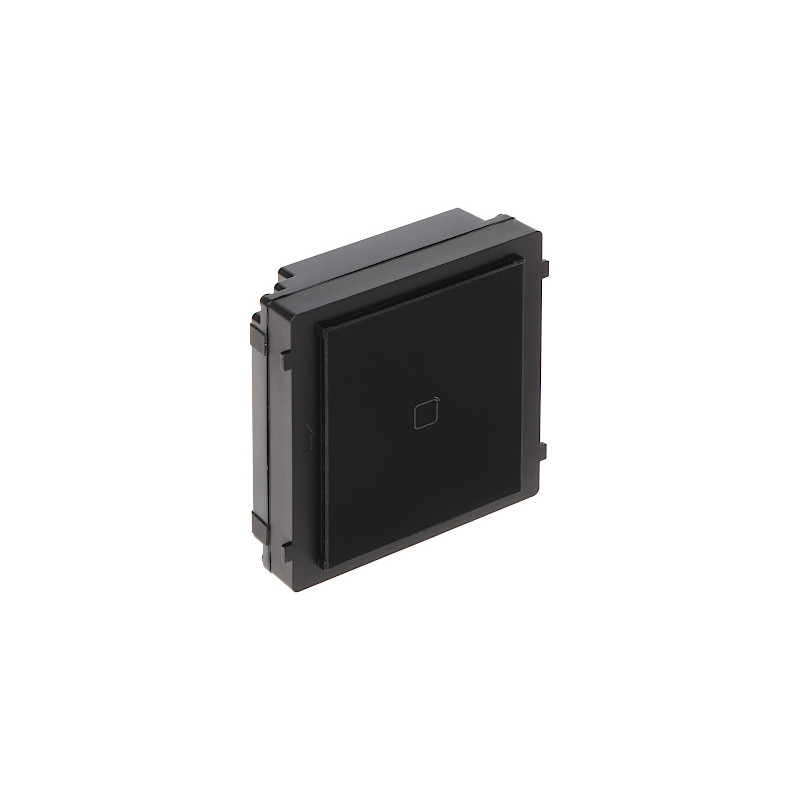

Mifare 13.56MHz Proximity Reader Module for Modular Video Intercom IP65 Hikvision DS-KD-M
zł 532,59
Tax included
The proximity reader module is a key component of a modern, modular video intercom system that significantly increases the comfort and security of daily use. The device is designed for full integration with the DS-KD8003-IME1 and DS-KD8003-IME2 main units, allowing for the construction of a personalized entrance panel tailored to individual user needs. The main advantage of this module is its support for the Mifare standard (13.56 MHz), which guarantees fast and seamless access authorization using proximity cards or key fobs.
Thanks to its high IP65 protection class, the module is fully resistant to harsh weather conditions such as rain, dust, or low temperatures, making it an ideal solution for outdoor installation. The aesthetic design and the possibility of mounting in dedicated aluminum masking frames ensure that the device looks extremely professional on the building facade. The Hikvision modular system is not only functional but also flexible – the installation can be expanded at any time with additional modules such as a keypad or an LCD display. By choosing this product, you are investing in a proven solution from a global leader in security systems, which translates into long-term, trouble-free operation and full technical support. It is an ideal choice for single-family homes, offices, and modern residential estates where access speed and reliability are paramount. Installation of the DS-KD-xx series modules is carried out in dedicated housings of the DS-KD-ACF series (flush-mounted) and DS-KD-ACW (surface-mounted), which ensures an aesthetic appearance and durability of the entire structure.
Mifare 13.56MHz Proximity Reader Module for Modular Video Intercom IP65
Model: Hikvision DS-KD-M
EAN: 6931240046074 SKU: 931046076
- Support for Mifare 13.56 MHz proximity cards
- Full compatibility with DS-KD8003-IME1 and DS-KD8003-IME2 video intercom modules
- High IP65 protection class ensuring weather resistance
- Wide operating temperature range from -40°C to 60°C
- Low power consumption below 2W
- Flush or surface mounting options in dedicated housings
- Aesthetic black housing made of durable plastic
- Powered directly from the main module (no additional wiring required)
Description
The proximity reader module is a key component of a modern, modular video intercom system that significantly increases the comfort and security of daily use. The device is designed for full integration with the DS-KD8003-IME1 and DS-KD8003-IME2 main units, allowing for the construction of a personalized entrance panel tailored to individual user needs. The main advantage of this module is its support for the Mifare standard (13.56 MHz), which guarantees fast and seamless access authorization using proximity cards or key fobs.
Thanks to its high IP65 protection class, the module is fully resistant to harsh weather conditions such as rain, dust, or low temperatures, making it an ideal solution for outdoor installation. The aesthetic design and the possibility of mounting in dedicated aluminum masking frames ensure that the device looks extremely professional on the building facade. The Hikvision modular system is not only functional but also flexible – the installation can be expanded at any time with additional modules such as a keypad or an LCD display. By choosing this product, you are investing in a proven solution from a global leader in security systems, which translates into long-term, trouble-free operation and full technical support. It is an ideal choice for single-family homes, offices, and modern residential estates where access speed and reliability are paramount. Installation of the DS-KD-xx series modules is carried out in dedicated housings of the DS-KD-ACF series (flush-mounted) and DS-KD-ACW (surface-mounted), which ensures an aesthetic appearance and durability of the entire structure.
Specification
Card support
13.56 MHz S50 (Mifare)
Card reading range
Maximum 5 cm
Autonomous operation
No (requires main module)
Built-in keypad
None
Doorbell button
None
Tamper output
None
Compatibility
DS-KD8003-IME1, DS-KD8003-IME2
Power supply
Supplied by the DS-KD8003-IME1 or DS-KD8003-IME2 main module
Power consumption
≤ 2 W
Permissible humidity
10 % ... 95 % (non-condensing)
Protection class
IP65
Housing
Plastic
Color
Black
Operating temperature
-40 °C ... 60 °C
SAP Code
305301208
Warranty
3 years
Software and Management
The device works with the advanced Hikvision ecosystem. Management is carried out via the Hik-Connect mobile application (available for Android and iOS) or professional iVMS-4200 client software for PCs. This software enables full configuration of the video intercom system, adding and removing users, assigning proximity cards to specific individuals, and viewing event logs. Thanks to cloud integration, the user can receive notifications about entry attempts directly to their smartphone, as well as remotely open the gate or door from anywhere in the world. The interface is intuitive and allows for easy administration even of complex multi-tenant systems. The system also supports remote firmware updates via the main module.
Contents
1x Proximity reader module
1x Connection cable
1x Mounting accessories
Dimensions, Weight
Product dimensions: 34 x 100 x 98 mm (D x W x H)
Package dimensions: 80 x 155 x 155 mm (D x W x H)
Product weight: 170 g
Weight with packaging: 308 g
