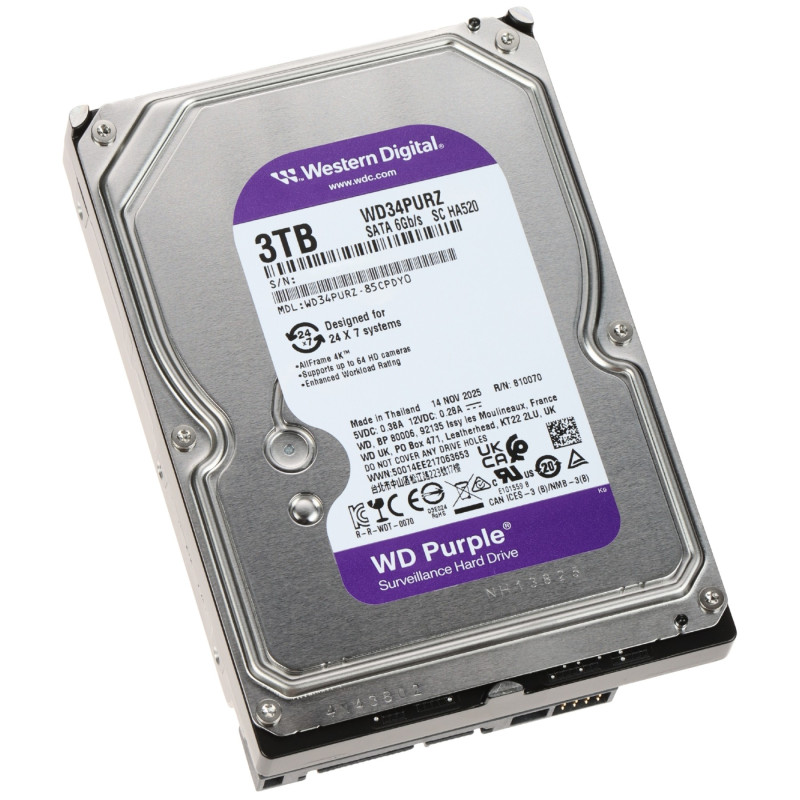

3TB HDD Disk for Surveillance Systems 3.5 inch SATA III 6Gb/s AllFrame 4K Technology 24/7 Operation NVR DVR

Model: WESTERN DIGITAL HDD-WD34PURZ

EAN: 6931240079478 SKU: 931079472

• 3 TB capacity ideal for HD surveillance systems
• AllFrame 4K technology optimizing video streaming
• Designed for 24/7 continuous operation in NVR/DVR systems
• SATA III 6 Gb/s interface ensuring fast data transfer
• Increased Workload Rating up to 180 TB/year
• High MTBF reliability of 1,000,000 hours
• 128 MB cache memory accelerating write operations
• Low power consumption and reduced heat emission

Description

The Western Digital Purple series hard drive, model HDD-WD34PURZ, is a professional solution dedicated to closed-circuit television (CCTV) systems. Devices in this line have been designed for reliable continuous operation 24 hours a day, 7 days a week, which distinguishes them from standard computer drives. Thanks to the massive 3 TB capacity, the user gains the space necessary to store high-quality video recordings from many cameras simultaneously.

Specification

Another benefit is energy efficiency and resistance to operating conditions inside recorders. WD Purple drives are characterized by low power consumption, which is important for systems operating without interruption, and high operating culture (low noise and vibration levels). A workload rating of up to 180 TB per year guarantees longevity and stability, even in the most demanding property protection installations. By choosing WD Purple, you invest in the security of your data and the certainty that not a single second of recording will be lost.

A key advantage of this model is the unique AllFrame 4K technology. Combined with the ATA streaming mechanism, this solution helps to drastically reduce the phenomenon of dropped video frames and reduces image recording errors. This translates directly into the fluidity of the played material, which is critical during incident analysis. The drive has been optimized for collaboration with NVR and DVR recorders, performing excellently in environments with high data write intensity.

General Parameters

Disk type: Magnetic HDD; Application: 24/7 video surveillance systems; Purpose: NVR, DVR recorders, video servers

Capacity and Performance

Capacity: 3 TB (3000 GB); Rotational speed: 5400 RPM class; Cache memory: 128 MB

Interface and Communication

Interface standard: SATA III (Serial ATA 6 Gb/s); Backward compatibility: Yes, SATA II; Throughput: Up to 600 MB/s

AllFrame 4K Technology

The drive firmware optimizes video stream handling, minimizing write errors and pixelation, which is crucial in professional CCTV installations. AllFrame improves collaboration with the ATA transmission mechanism, which allows for simultaneous support for up to 64 HD cameras. Thanks to this solution, surveillance systems become more reliable, and the evidence material played back is characterized by the highest fluidity and lack of structural interference.

Reliability

MTBF (Mean Time Between Failures): 1,000,000 hours; Workload Rating (Annual load): 180 TB; Resistance to load/unload cycles: 300,000

Construction

Width format: 3.5 inches; Durable vibration-resistant housing; Magnetic recording technology: CMR / SMR (depending on revision)

Power Supply and Environment

Power supply: Standard SATA 5V/12V; Power consumption (Read/Write): ~4.4 W; Power consumption (Idle): ~4.1 W; Operating temperature: 0 °C ... 65 °C

Streaming Performance

Support for up to 64 HD video camera streams; Optimized for high-priority sequential recording

Mechanical Parameters

Noise level (idle): 23 dB; Noise level (seeking): 24 dB

Safety and Certifications

RoHS compliance: Yes; Certifications: CE, FCC, UL, TUV

Energy Management

Support for sleep and standby modes; Low heat emission extending device life

ATA Support

Support for Streaming Command Set; Optimized for priority reading of video data

Warranty

Warranty period: 3 years (36 months)

Logistics

Product code: HDD-WD34PURZ; Manufacturer: Western Digital; Series: Purple

Dimensions, Weight

Product dimensions: 146 x 102 x 25 mm (D x W x H)

Packaging dimensions: 155 x 110 x 35 mm (D x W x H)

Product weight: 550 g

Weight with packaging: 600 g
