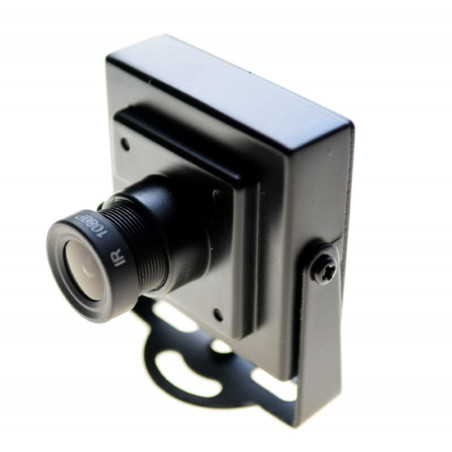

Mini Industrial CCTV Camera 1080p AHD CVI TVI CVBS Vehicle Truck Bus Excavator Tractor Driving School ACTii AC9905
€ 34.23
Tax included
Dostawa w ciągu 1-2 dni.
The camera is perfect for monitoring inside vehicles e.g. buses or trucks as well as in buildings.
Miniature robust metal housing allows mounting the camera almost anywhere.
The camera body can also be hidden in the case of a vehicle behind the upholstery, and in buildings behind a plasterboard. From the outside only the lens itself is visible.
NOTE. The camera is set to AHD image format as standard. If another format is needed, analog CVBS, CVI or TVI, please add information about this in the order notes, we will change the camera settings to the required format.
The camera is perfect for monitoring vehicles e.g. buses, trucks, tractors, excavators, bulldozers, cranes. Vandal-proof housing, protection against the possibility of rotating the camera, small size, protection against water and dust (IP66). All this makes the camera very often chosen for vehicle monitoring.
The camera is also very often installed in driving school cars.
Mini Industrial CCTV Camera 1080p AHD CVI TVI CVBS Vehicle Truck Bus Excavator Tractor Driving School
Model: ACTii AC9905
EAN: 6931240099056 SKU: 990549581
- Sensor 1/2.7 CMOS, Resolution: 1920x1080 HD; Sensitivity: 0.01lux
- High sensitivity 0.01 LUX and Day/Night mode allow the camera to see correctly in poor lighting conditions
- Robust metal housing
- AHD, CVI and TVI interface allows for transmission of digital video signal via coaxial cable in 1080p resolution. This allows for transmission of HD resolution images at distances up to 500m while maintaining low installation costs.
- Lens: Focal length: 3.6mm; Angle of view: range 68°
- Ability to select AHD, CVI, TVI and CVBS standard
- High-end lens for Megapixel cameras
Description
The camera is perfect for monitoring inside vehicles e.g. buses or trucks as well as in buildings.
Miniature robust metal housing allows mounting the camera almost anywhere.
The camera body can also be hidden in the case of a vehicle behind the upholstery, and in buildings behind a plasterboard. From the outside only the lens itself is visible.
NOTE. The camera is set to AHD image format as standard. If another format is needed, analog CVBS, CVI or TVI, please add information about this in the order notes, we will change the camera settings to the required format.
The camera is perfect for monitoring vehicles e.g. buses, trucks, tractors, excavators, bulldozers, cranes. Vandal-proof housing, protection against the possibility of rotating the camera, small size, protection against water and dust (IP66). All this makes the camera very often chosen for vehicle monitoring.
The camera is also very often installed in driving school cars.
Specification
Parameters
Sensor: 1/2.7 CMOS sensor with latest
Working Type: AHD + CVI + TVI + CVBS
Matrix size: 2Mpx
Resolution for: AHD, TVI, CVI: 1920 x 1080 - 1080p and possibility to choose 720p
Resolution for CVBS: 960 x 576 - 960H
Power supply
Power supply: DC 12V/150mA
Power socket for 2.1/5.5 cable
Housing
Material: Enamelled metal
Color: black
Power supply
Power supply: DC 12V/150mA
Power socket for 2.1/5.5 cable
Image parameters
Signal to noise ratio (S/N): > 58dB
Scanning system: Progressive
Sensitivity: 0.01LUX (without IR illuminator)
Day/Night mode: YES
Lens
Focal length: 3.6mm
Angle of view: 68°
Aperture: F 1-1.4
Focus adjustment: Yes, manual
Lens mount: CS
Lens for Mega Pixel cameras: YES: 2Mpix
Set contents
Camera
Manual
Packaging
Dimensions, Weight
Product dimensions: 32 x 35 x 35 mm (Depth x Width x Height)
Package dimensions: 100 x 80 x 50 mm (Depth x Width x Height)
Product weight: 80 g
Weight with package: 98 g
