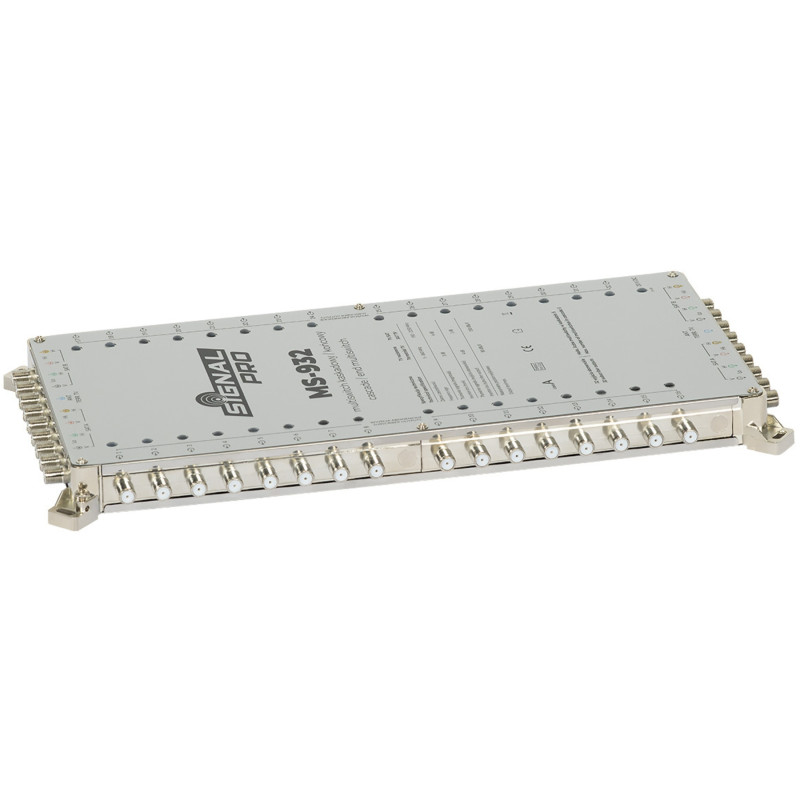

Signal Pro MS-932 9-input 32-output cascade multiswitch SIGNAL PRO MS-932
zł 1’045.52
Tax included
The MS-932 SIGNAL PRO 9/32 cascade multiswitch is a professional device designed for advanced RTV-SAT collective installations. It is an ideal solution for multi-family buildings, hotels, office buildings, and extensive home installations where signal distribution to a large number of receivers is required. The device supports 9 signal inputs (8 for satellite signals from two satellites and 1 for terrestrial DVB-T2/Radio signals) and offers 32 independent outputs for satellite tuners.
A key advantage of the MS-932 multiswitch is its high performance and operational stability. Thanks to the high output signal level (88 dBµV for the RTV path and 100 dBµV for the SAT path), the device ensures excellent image and sound quality even over long cable runs. Robust construction and high-quality electronic components guarantee long-term and trouble-free system operation. The multiswitch allows for the construction of a cascade of up to 5 devices without the need for additional trunk amplifiers, which provides great flexibility when designing installations of various scales.
The device supports 13V/18V, 0Hz/22kHz switching standards and DiSEqC 1.0 and 2.0 protocols, ensuring full compatibility with modern Quattro-type LNBs. Thanks to the cascade design, installers can easily expand the system while maintaining optimal signal parameters at every reception point. It is a reliable choice for professionals who value quality, flexibility, and ease of installation in modern television signal distribution systems.
Signal Pro MS-932 9-input 32-output cascade multiswitch
Model: SIGNAL PRO MS-932
EAN: 6931240015674 SKU: 931015678
- 9 inputs (8x SAT, 1x RTV)
- 32 outputs for receivers
- Cascade connection capability (up to 5 devices)
- High output signal level (100 dBµV SAT / 88 dBµV TV)
- Support for DiSEqC 1.0 and 2.0 standards
- Robust construction and high-quality components
- 20V DC / 2.5A power supply included
Description
The MS-932 SIGNAL PRO 9/32 cascade multiswitch is a professional device designed for advanced RTV-SAT collective installations. It is an ideal solution for multi-family buildings, hotels, office buildings, and extensive home installations where signal distribution to a large number of receivers is required. The device supports 9 signal inputs (8 for satellite signals from two satellites and 1 for terrestrial DVB-T2/Radio signals) and offers 32 independent outputs for satellite tuners.
A key advantage of the MS-932 multiswitch is its high performance and operational stability. Thanks to the high output signal level (88 dBµV for the RTV path and 100 dBµV for the SAT path), the device ensures excellent image and sound quality even over long cable runs. Robust construction and high-quality electronic components guarantee long-term and trouble-free system operation. The multiswitch allows for the construction of a cascade of up to 5 devices without the need for additional trunk amplifiers, which provides great flexibility when designing installations of various scales.
The device supports 13V/18V, 0Hz/22kHz switching standards and DiSEqC 1.0 and 2.0 protocols, ensuring full compatibility with modern Quattro-type LNBs. Thanks to the cascade design, installers can easily expand the system while maintaining optimal signal parameters at every reception point. It is a reliable choice for professionals who value quality, flexibility, and ease of installation in modern television signal distribution systems.
Specification
Inputs
8 x 950 MHz ... 2150 MHz (SAT), 1 x 5 MHz ... 860 MHz (RTV)
Outputs
32 x 47 MHz ... 2150 MHz, cascade connection capability
Switching signals
13V / 18V, 0Hz / 22kHz, DiSEqC 1.0, DiSEqC 2.0
SAT tap loss
3 dB
TV tap loss
4 dB
Through loss
6 dB (SAT), 3 dB (RTV)
Maximum SAT output level
100 dBµV
Maximum TV output level
88 dBµV
Isolation
Between SAT/SAT inputs > 25 dB; RTV outputs 25 dB; SAT outputs 28 dB; SAT/RTV inputs/outputs 25 dB
Preamplifier power supply
None
Power supply
20V DC / 2.5A (power supply included)
Current consumption
200 mA
Warranty
2 years
Manufacturer / Brand
SIGNAL PRO
Contents
1x MS-932 Multiswitch
1x 20V DC / 2.5A Power supply
Dimensions, Weight
Product dimensions: 30 x 385 x 210 mm (D x W x H)
Package dimensions: 70 x 425 x 230 mm (D x W x H)
Product weight: 1370 g
Weight with packaging: 2066 g
