- New

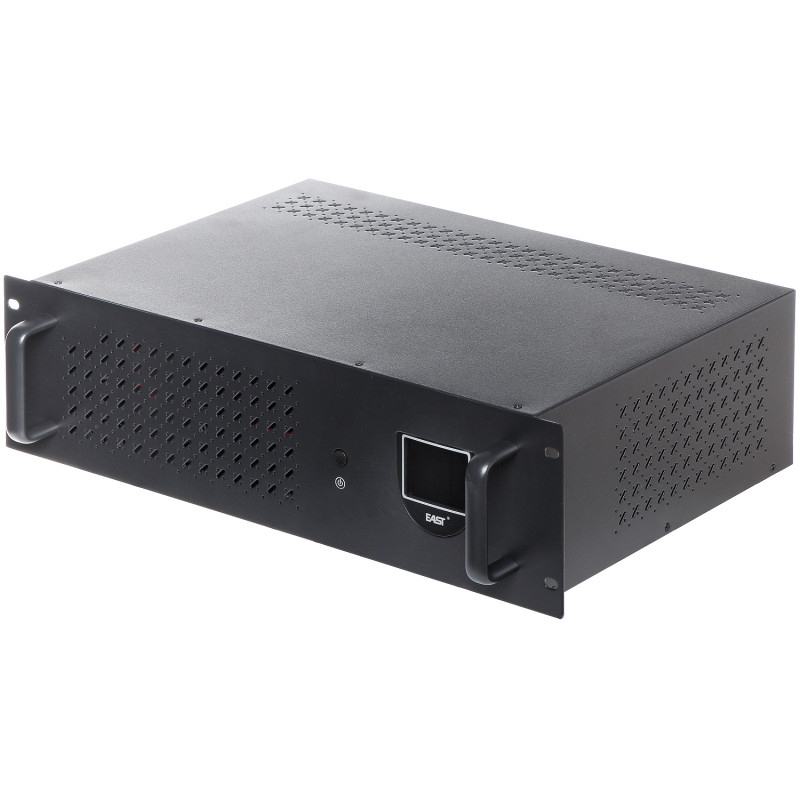

Professional Rack 19 UPS 1500VA 900W LCD AVR USB Surge Protection and LAN Filter EAST AT-UPS1500R-RACK
zł 955.23
Tax included
The professional uninterruptible power supply (UPS) AT-UPS1500R-RACK is an advanced solution dedicated to protecting critical IT infrastructure, video surveillance systems, and industrial equipment. The device is designed for mounting in standard 19-inch RACK cabinets, making it an ideal choice for server rooms and data centers. Thanks to line-interactive technology, the UPS continuously monitors network parameters such as voltage, frequency, and phase shift angle, ensuring instantaneous reaction in the event of a failure.
The main advantage of the device is the built-in Automatic Voltage Regulator (AVR), which stabilizes power fluctuations without the need to switch to battery operation, significantly extending the service life of internal batteries. The UPS features an apparent power of 1500 VA and an active power of 900 W, allowing for the safe maintenance of advanced servers, NVR recorders, and workstations. Equipped with a clear LCD display, it allows the operator to monitor load levels, battery charge status, and input/output voltage parameters in real-time.
The device offers full compatibility with power supplies equipped with Active Power Factor Correction (APFC), which is crucial for modern computer systems. An additional advantage is the cold start function, which enables the startup of connected loads even in the event of a total mains power failure. The protection system is enhanced with an Ethernet (RJ45) filter, which secures network devices against harmful surges induced in twisted-pair computer cabling. The sturdy 3U construction guarantees optimal cooling and trouble-free operation in demanding environmental conditions.
Professional Rack 19 UPS 1500VA 900W LCD AVR USB Surge Protection and LAN Filter
Model: EAST AT-UPS1500R-RACK
EAN: 6931240095751 SKU: 931095758
- Advanced Line-Interactive technology with full microprocessor control
- Automatic Voltage Regulator (AVR) protecting against network fluctuations
- Built-in clear LCD display providing device status information
- Cold start function enabling startup without mains power
- Full compatibility with power supplies featuring Active PFC (APFC) circuits
- Integrated USB interface for remote parameter management
- Additional data line protection via built-in RJ45 Ethernet filter
- Automatic restart after mains power restoration
- Built-in EMI and RFI interference filters
- Capability to work with power generators
Description
The professional uninterruptible power supply (UPS) AT-UPS1500R-RACK is an advanced solution dedicated to protecting critical IT infrastructure, video surveillance systems, and industrial equipment. The device is designed for mounting in standard 19-inch RACK cabinets, making it an ideal choice for server rooms and data centers. Thanks to line-interactive technology, the UPS continuously monitors network parameters such as voltage, frequency, and phase shift angle, ensuring instantaneous reaction in the event of a failure.
The main advantage of the device is the built-in Automatic Voltage Regulator (AVR), which stabilizes power fluctuations without the need to switch to battery operation, significantly extending the service life of internal batteries. The UPS features an apparent power of 1500 VA and an active power of 900 W, allowing for the safe maintenance of advanced servers, NVR recorders, and workstations. Equipped with a clear LCD display, it allows the operator to monitor load levels, battery charge status, and input/output voltage parameters in real-time.
The device offers full compatibility with power supplies equipped with Active Power Factor Correction (APFC), which is crucial for modern computer systems. An additional advantage is the cold start function, which enables the startup of connected loads even in the event of a total mains power failure. The protection system is enhanced with an Ethernet (RJ45) filter, which secures network devices against harmful surges induced in twisted-pair computer cabling. The sturdy 3U construction guarantees optimal cooling and trouble-free operation in demanding environmental conditions.
Specification
Architecture and Power Supply
Type: Line-Interactive; Microprocessor control; Compatibility with APFC power supplies; Power generator support
Power and Performance
Apparent power: 1500 VA; Active power: 900 W; Designed for high-density power loads
Input Parameters
Input voltage: 230 V AC ± 25%; Input frequency: 50 / 60 Hz (automatic range detection)
Output Parameters
Output voltage: 230 V AC ± 10%; Output frequency: 50 / 60 Hz ± 1%; Voltage waveform: Simulated sine wave
Batteries and Backup
Number of batteries: 2 pcs.; Parameters: 12V / 8Ah; Charging time: up to 8 hours (90% level); Cold start function: Yes
Response Times
Switching time: typical 2 ... 7 ms; maximum switching time: 10 ms
Connectors and Interfaces
Number of output sockets: 2 pcs. CEE 7/3 (Schuko); Communication interface: USB; Network protection: 2x RJ45 (Ethernet filter)
Protection and Safety
Protections: Surge, Overload, Fuse; Filters: EMI, RFI; Battery deep discharge protection
Monitoring and Display
LCD Panel: input and output voltage level, frequency, battery capacity, load indicator, alarm codes; Audible operating mode signaling
Physical Construction
Housing type: Rack 19"; Mounting height: 3U; Material: Metal; Dimensions: 440 x 310 x 132 mm
Environmental Conditions
Operating temperature: 0 °C ... 40 °C; Relative humidity: 0 ... 90% (non-condensing)
Voltage Stabilization
AVR (Automatic Voltage Regulator): Automatic voltage stabilization system correcting mains voltage drops and spikes
Application
CCTV monitoring systems, Data centers, Servers, Workstations, Industrial equipment, Alarm systems
UPSmart Software
The UPSmart software is a professional tool for managing the UPS from a computer (Windows and Linux systems). The application enables precise monitoring of the device's operational parameters in real-time, including tracking voltage and load waveforms. A key feature is the ability to program an automatic and safe shutdown of the operating system in the event of a prolonged power failure, protecting data from damage. The software allows for detailed event logging, sending email notifications regarding failures, and conducting remote battery self-diagnostic tests. The interface is clear and supports advanced operation schedule configurations.
Certificates and Warranty
Compliance with standards: CE, LVD; Warranty period: 2 years
Contents
1x UPS Power Supply
1x USB Cable
1x UPSmart Software CD
1x User Manual
Dimensions, Weight
Product dimensions: 310 x 440 x 132 mm (Depth x Width x Height)
Package dimensions: 400 x 520 x 235 mm (Depth x Width x Height)
Product weight: 13300 g
Weight with packaging: 14660 g
