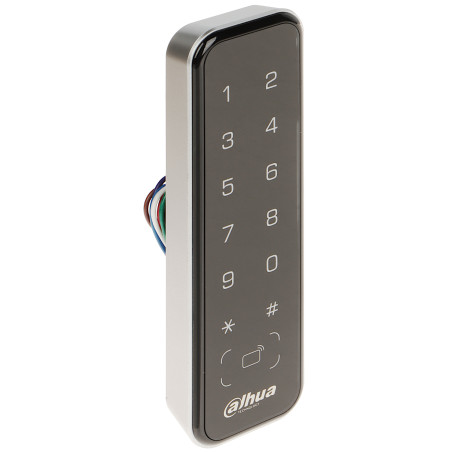

Dahua ASR2201A 13.56MHz Mifare RFID Proximity Reader with Touch Keypad DAHUA ASR2201A
zł 444.03
Tax included
The ASR2201A proximity reader is a professional device from Dahua that combines modern design with advanced access control technology. The device is designed for users seeking aesthetic and reliable solutions. Its slim design allows it to perfectly fit into modern offices and residential buildings, enabling mounting even on narrow profiles. The front panel made of high-quality tempered glass guarantees not only an elegant look but also high resistance to mechanical stress and ease of cleaning.
The device supports the 13.56 MHz Mifare proximity standard, providing fast and secure reading from a distance of up to 5 cm. A key advantage is the integrated touch keypad, which allows for additional user verification using a PIN code. The ability to configure various identification modes – card only, PIN only, or card and PIN – allows for flexible adjustment of security levels to the specific needs of the facility. The reader has an IP66 ingress protection rating, which means high resistance to dust and strong water jets, provided the contact area with the mounting surface is properly sealed. Thanks to a wide operating temperature range from -30°C to 70°C, this model is reliable in extreme climatic conditions.
System security is supported by a built-in tamper sensor, which notifies about attempts to tear the device off the wall or open the housing. The reader supports popular communication standards such as RS-485 and Wiegand, ensuring full compatibility with Dahua controllers and third-party systems. Built-in surge and overload protections safeguard the electronics against damage resulting from electrical network instability. This is an ideal solution for demanding security systems where both style and maximum functionality matter.
Dahua ASR2201A 13.56MHz Mifare RFID Proximity Reader with Touch Keypad
Model: DAHUA ASR2201A
EAN: 6931240030394 SKU: 931030394
- Supports 13.56 MHz Mifare standard cards
- Integrated backlit touch keypad
- Slim design for easy mounting
- Front panel made of durable tempered glass
- High IP66 ingress protection rating for outdoor applications
- Multifunctional LED signaling and built-in buzzer
- Dual communication interface: RS-485 and Wiegand
- Advanced tamper protection system
- Surge and overload protection
Description
The ASR2201A proximity reader is a professional device from Dahua that combines modern design with advanced access control technology. The device is designed for users seeking aesthetic and reliable solutions. Its slim design allows it to perfectly fit into modern offices and residential buildings, enabling mounting even on narrow profiles. The front panel made of high-quality tempered glass guarantees not only an elegant look but also high resistance to mechanical stress and ease of cleaning.
The device supports the 13.56 MHz Mifare proximity standard, providing fast and secure reading from a distance of up to 5 cm. A key advantage is the integrated touch keypad, which allows for additional user verification using a PIN code. The ability to configure various identification modes – card only, PIN only, or card and PIN – allows for flexible adjustment of security levels to the specific needs of the facility. The reader has an IP66 ingress protection rating, which means high resistance to dust and strong water jets, provided the contact area with the mounting surface is properly sealed. Thanks to a wide operating temperature range from -30°C to 70°C, this model is reliable in extreme climatic conditions.
System security is supported by a built-in tamper sensor, which notifies about attempts to tear the device off the wall or open the housing. The reader supports popular communication standards such as RS-485 and Wiegand, ensuring full compatibility with Dahua controllers and third-party systems. Built-in surge and overload protections safeguard the electronics against damage resulting from electrical network instability. This is an ideal solution for demanding security systems where both style and maximum functionality matter.
Specification
Supported card standard
13.56 MHz S50 (Mifare) - most popular contactless identification standard
Reading range
0 to 5 cm (depending on the quality of the used transponder)
Keypad
Touch keypad - sensory buttons ensuring longevity and aesthetics
Communication interfaces
RS-485 (Dahua protocol) and Wiegand (universal communication standard)
Software and Logical Functions
Built-in operating system with Watchdog function - automatic processor restart in case of an error. Device logic supports 4 identification modes: Card only, PIN only, Card or PIN, Card and PIN. Software provides precise control over acoustic and visual signaling based on access status (acceptance/denial).
Status signaling
Multicolor LED indicators for power and authorization status as well as acoustic signals (buzzer)
Hardware security
Tamper output - detection of detachment from the wall; surge and overload protection for electronics
Power supply
12 V DC - direct current, stabilized
Power consumption
Maximum 500 mA during operation
Ingress protection class
IP66 - high level of protection against water and dust (silicone sealing recommended during installation)
Housing material
Plastic construction combined with a tempered glass front
Color scheme
Elegant combination of black and silver finishes
Operating temperature range
Extreme conditions from -30 °C to 70 °C
Ambient humidity
Permissible from 5 % to 95 % (non-condensing)
Mounting
Surface mounting, narrow device profile
Manufacturer warranty
3 years (36 months)
Contents
1x ASR2201A proximity reader
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 15 x 40 x 135 mm (Depth x Width x Height)
Package dimensions: 55 x 75 x 200 mm (Depth x Width x Height)
Product weight: 110 g
Weight with packaging: 176 g
